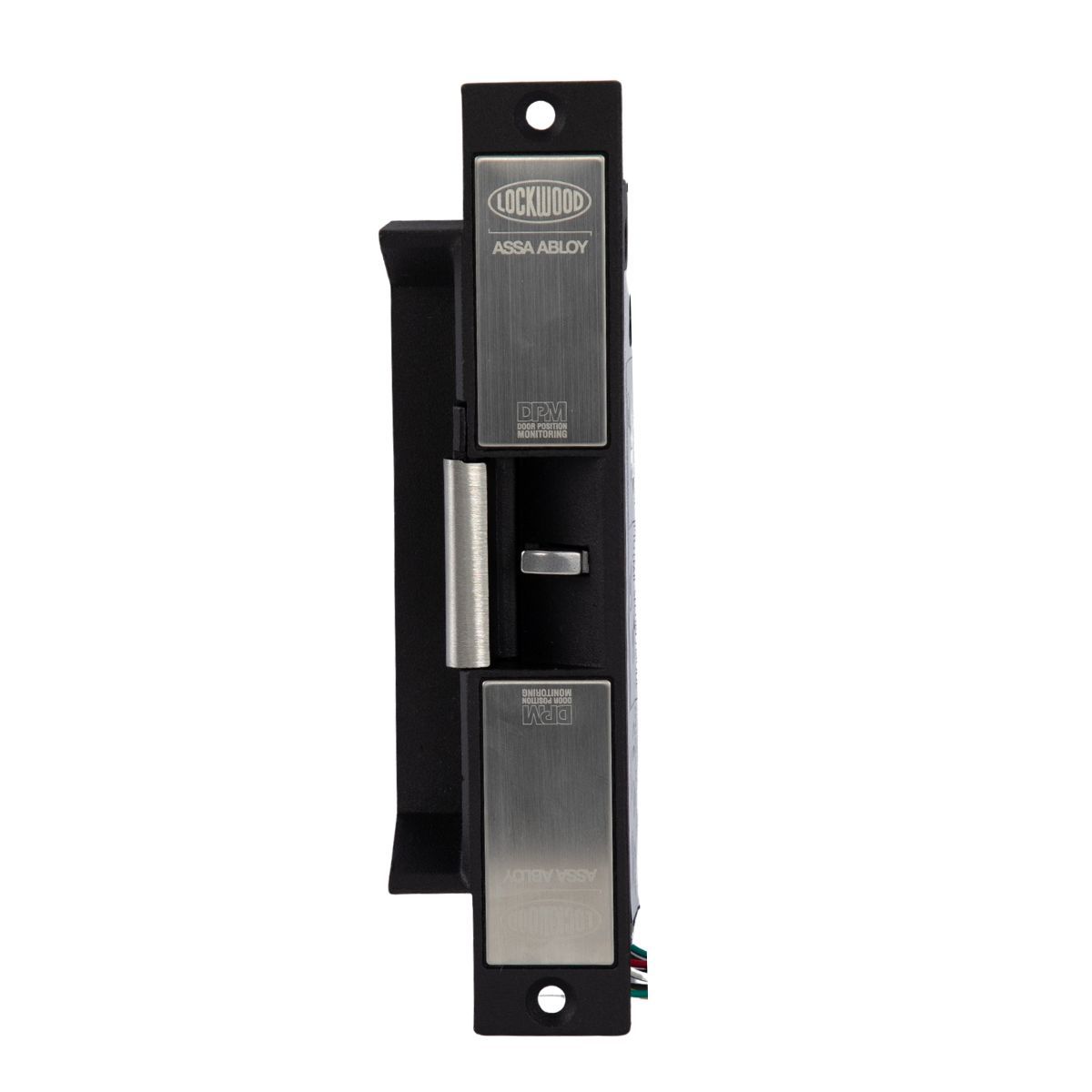

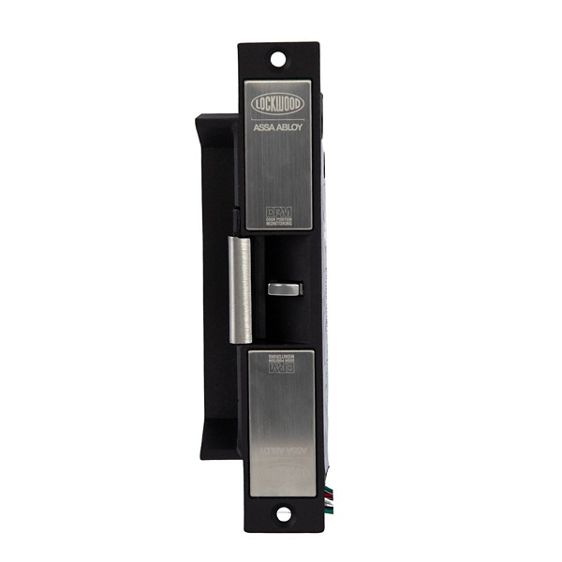

Lockwood ES2100 Monitored Electric Strike

The ES2100 is the latest product to join the iconic Padde by Lockwood range of electric strikes. Tested in accordance with Australian standards this strike offers superior strength. Standard features include variable voltage, patented field selectable fail safe/fail secure mode change and a unique integrated door position switch.

Integrated Door Position Switch
The ES2100 now offers a unique new monitoring feature not available in other strikes on the market today. The strike has an integrated reed switch that when combined with a specialised Lockwood mortice lock, provides door position monitoring. The strike is supplied with a standard door magnet for use with cylindrical latches. Lockwood mortice locks and face plate accessories are sold seperatley.

Key Features

• Patented field selectable fail safe/fail secure
• Multi voltage 10-30Vdc
• Fully monitored:
  • Integrated door position (reed) switch
  • Solenoid/Locked
  • Latch position
• 1000kg holding force
• 4hr fire rating
• Mounting tabs as supplied standard
• TRICARE® 5 Year Warranty
• Built in Protection Diode

Applications

• High traffic areas
• Fire rated door sets
• Open in/open out doors
• Suitable for use with all access control systems
• Doors requiring additional door position monitoring

Standards and Compliance

• SL8 (Security) Australian Lock Standard (AS4145.2.2008)
• D8 (Durability) Australian Lock Standard (AS4145.2.2008)
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005
• CE & UKCA compliance for Europe (EMC, RoHS, WEEE, REACH).
• C-Tick Certified
• SCEC Endorsed for SL3 Medium Threat Level Areas

Fire rated up to 240 minutes (EU/UK) - EN14846, Grade F (120 minutes or greater).
Successfully fire rated up to 4 hours on fire door assemblies in accordance with BS/EN 1634-1.

Fire rated up to 120 minutes (AU).
Successfully fire rated up to 2 hours on fire door assemblies in accordance with AS1905.1 (Part 1: Fire resistant door sets).

For any fire-rated applications of this product, the fire certification should be investigated and examined to ensure the suitability and configuration of this product for that particular door assembly. Contact the supplier for further details, such as certifications, door type and door thickness etc. that may affect the fire door suitability and rating.
