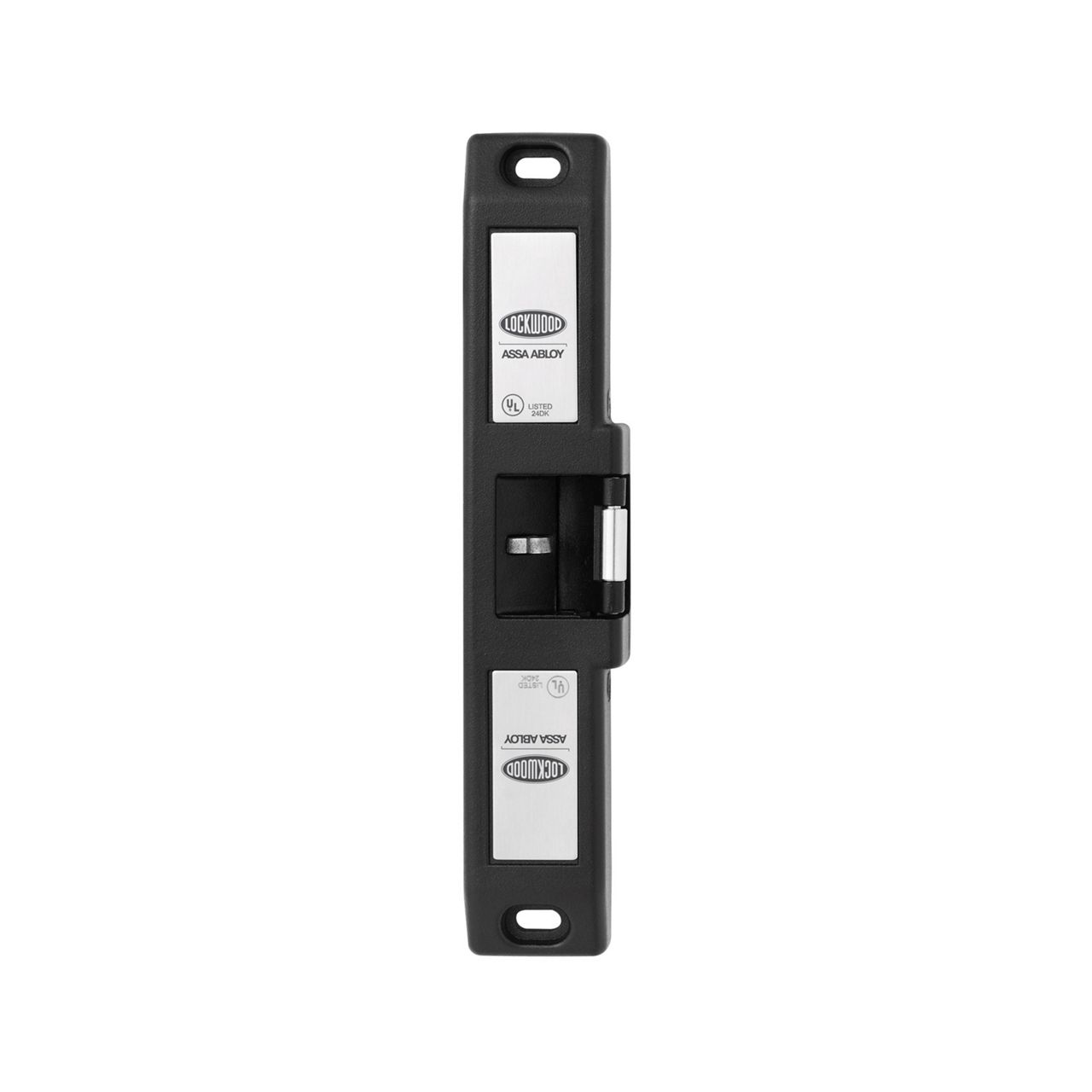

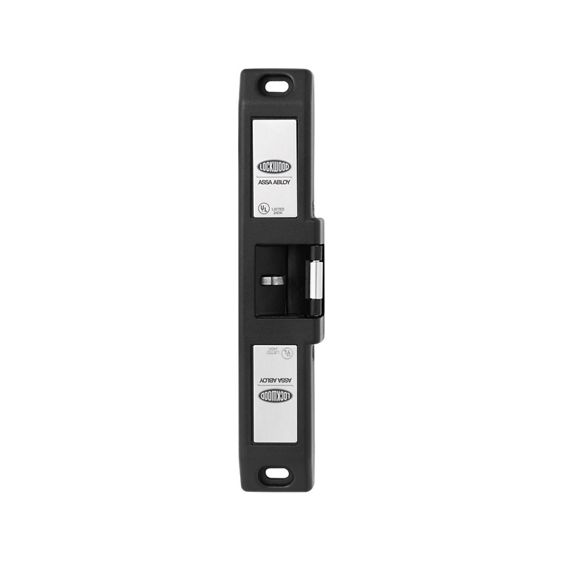

Lockwood ES2600 Panic Bar Monitored Electric Strike

The ES2600 Series surface mounted electric strikes are high security products manufactured from solid stainless steel and designed to be used with existing and new panic bars fitted to emergency doors.

When used in conjunction with a standard access control system, these strikes convert "Exit only" doors with "Pullman type" latches into a full access controlled door, thereby allowing authorised access from the secure side.

The ES2600 series are fully monitored with both solenoid and latch/door monitoring functions & can be changed from fail safe to fail secure on site.

Key Features

• Fail safe/fail secure changeable on site
• High security
• Available in 12 or 24Vdc
• 650kg holding force
• 1 million cycles endurance rating
• Body depth only 27mm
• Cast stainless steel body
• Low current consumption - max 175Ma @ 12Vdc
• Continuously rated solenoid
• Installation template
• TRICARE® 5 Year Warranty

Applications

• For use with panic bars
• Surface mount
• Egress doors
• Fire rated door sets
• Open out door sets
• Suitable for use with all access control systems

Standards and Compliance

• Approved to UL1034 (highest level)
• CE Approved
• C-Tick Certified
