Lockwood Victorian Power Industry Locks® (VPIL)

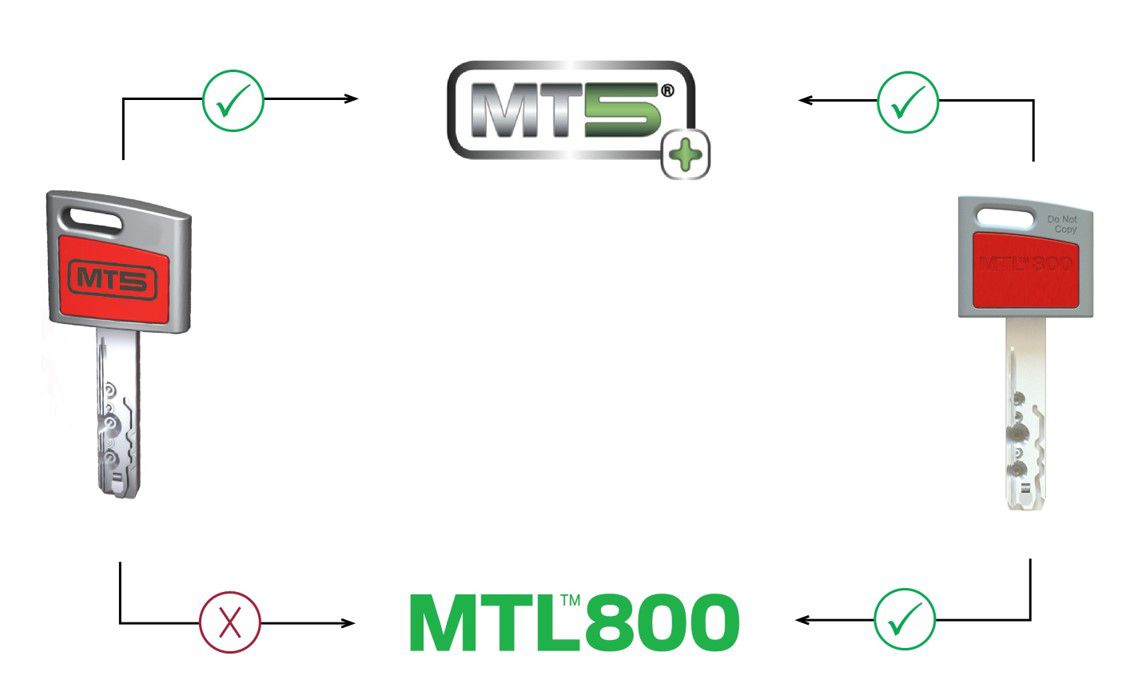

With the MT5+ patent expiring in 2025, ASSA ABLOY Opening Solutions Australia is committed to protecting every existing MT5+ system. The newly patented platform, MTL^™800, is designed for premium protection, flexibility, and convenience. The MTL^™800 platform is patent protected in Australia until 2039, and existing MT5+ systems can be easily migrated to MTL^™800. The MT5+ system will continue to be supported to ensure the protection of existing systems, and all MTL^™800 keys are fully backward compatible with existing MT5+ systems.

Note: The part numbers listed below are used to order locks with new pinning codes. If the requirement is for a lock in an existing pinning code or to order multiple keyed alike locks, please use part numbers that end with *KA, either in MTL^™800 or MT5+, depending on user needs. For example: 201PI2MT5+SCKA: MT5+ keyed alike or 201PI2M800SCKA: MTL800 keyed alike.

The following list of part numbers should be used when ordering locks that are on keyed to differ (KD) pinning codes.

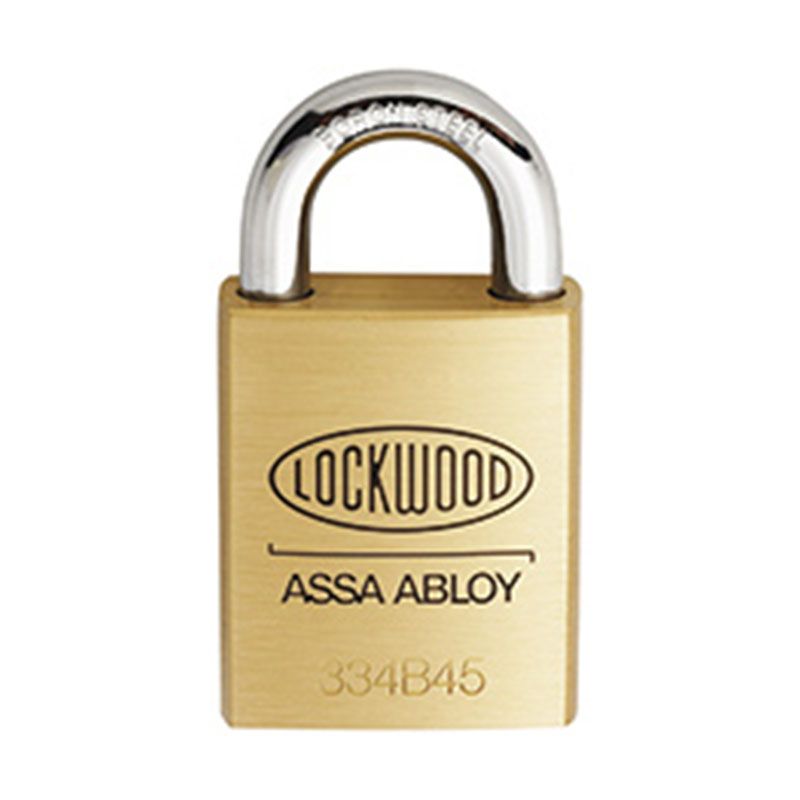

334BPI2/119M800
High Security 334 Series brass case padlock with 8.7mm boron steel rapid change shackle with double ball locking. Standard padlock is with self-latching shackle, can be interchanged to deadlocking function.
Download Dimensions

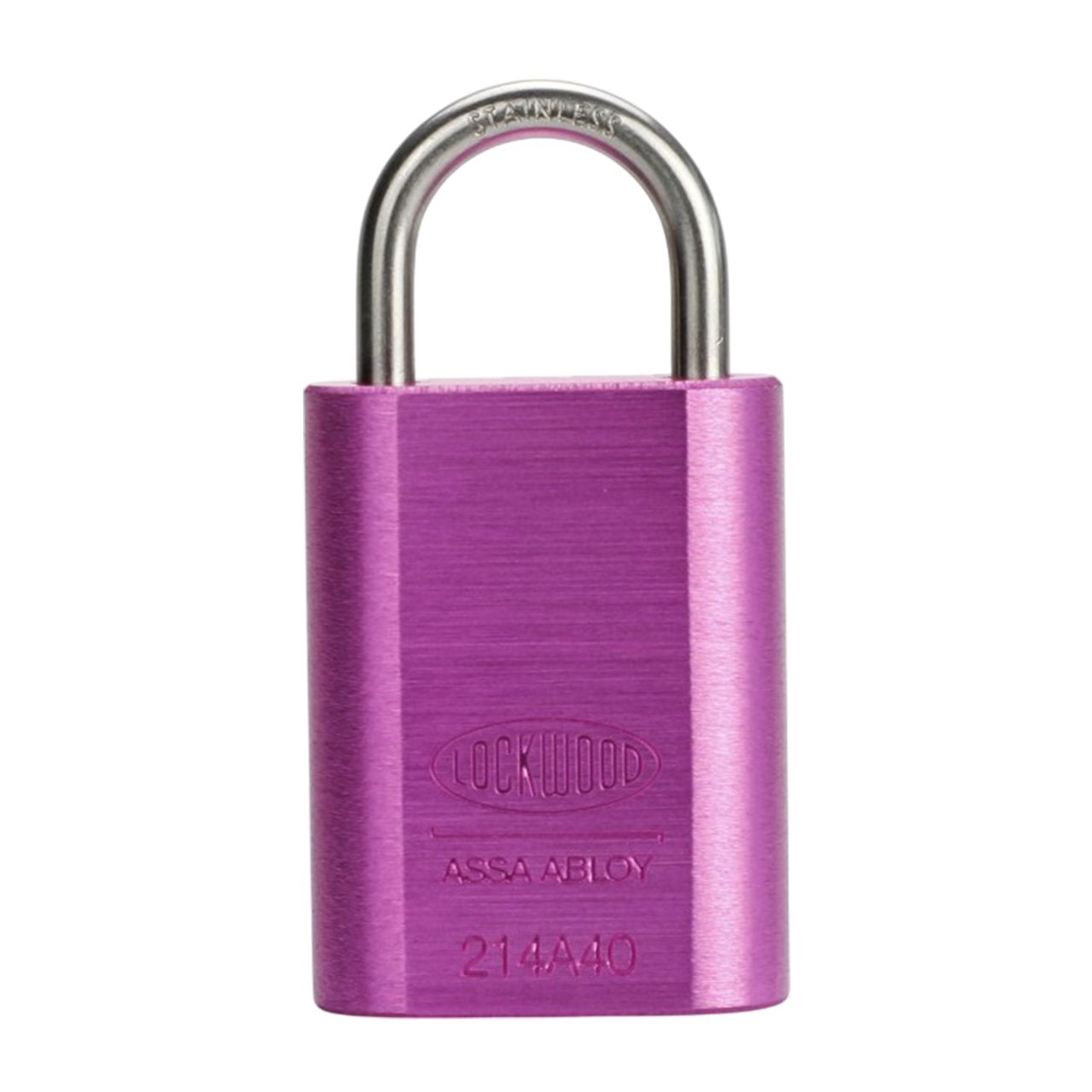

214API2/619M800
214 Series Aluminium case padlock with 5mm stainless steel shackle with double ball locking. Standard padlock is with self-latching shackle, can be interchanged to deadlocking function.
Download Dimensions

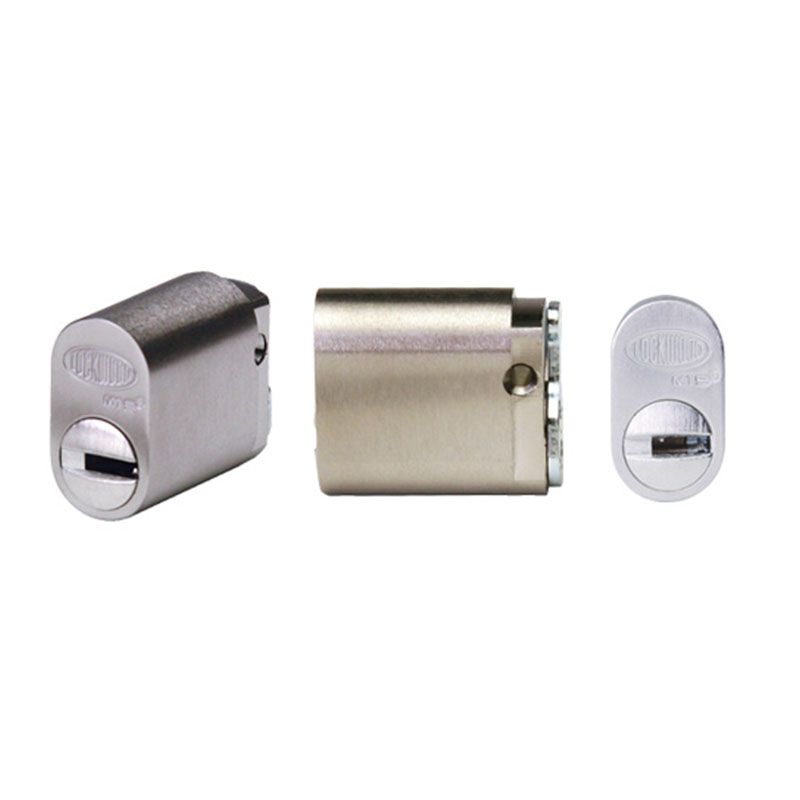

570PI2M800XSC
Australian oval cylinder with X Cam. This cylinder is used in Lockwood Mortice locks such as the 3570 Series, 3580 Series and 3540 Series.
Download Dimensions

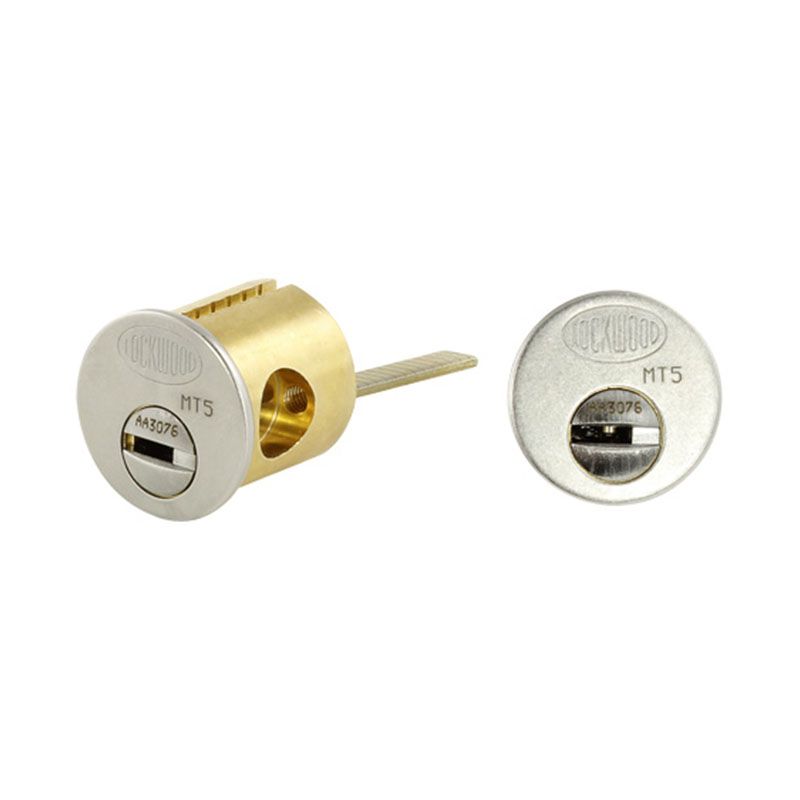

201PI2M800SC
201 Rim Lock cylinder. This cylinder is used as the external cylinder in a wide range of rim locks including Lockwood 001, 002, 303, 355, 201, 211 and 213.
Download Dimensions

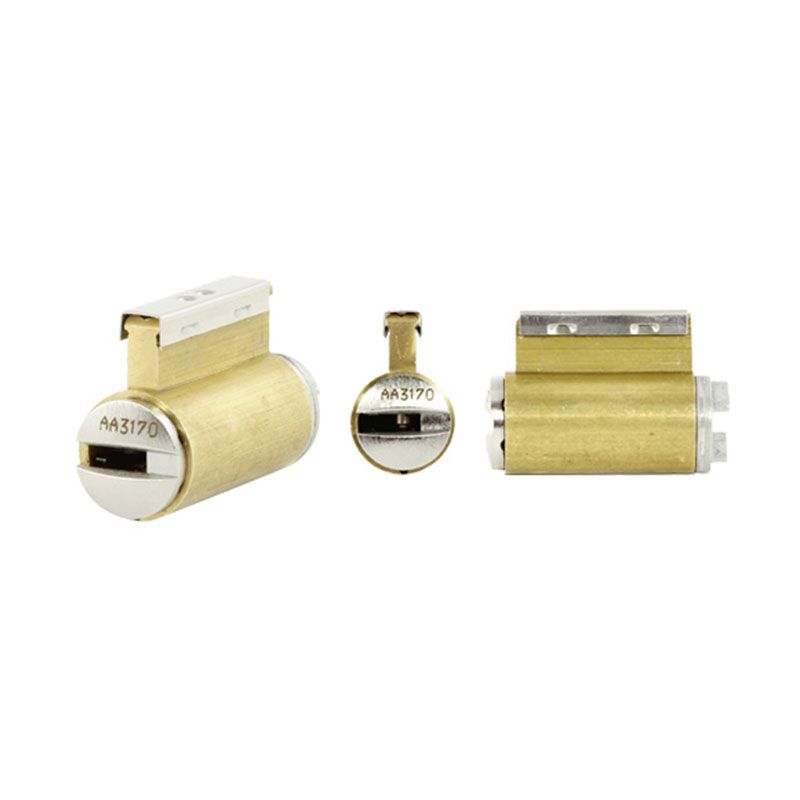

530PI2M800SC
530 Key in Knob cylinder. This cylinder is used in the Lockwood 530 Key in Knob locksets and the 930/950 Series Key in Lever Locksets.
Download Dimensions

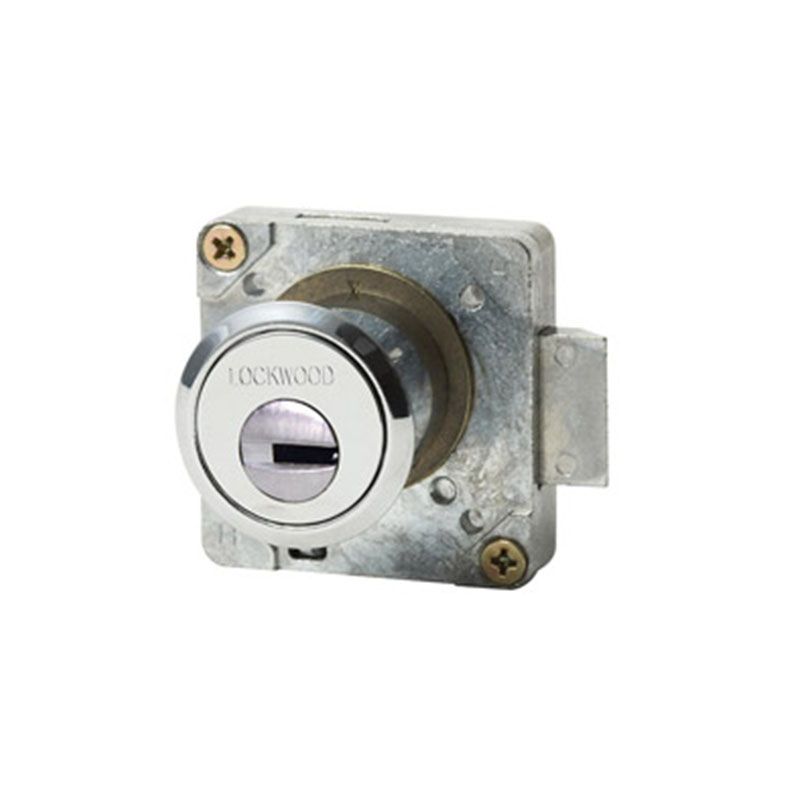

693API2M800SC
693 Cupboard & draw lock. The cylinder can easily be positioned for either cupboard or draw installation and can be either latching or bolt function.

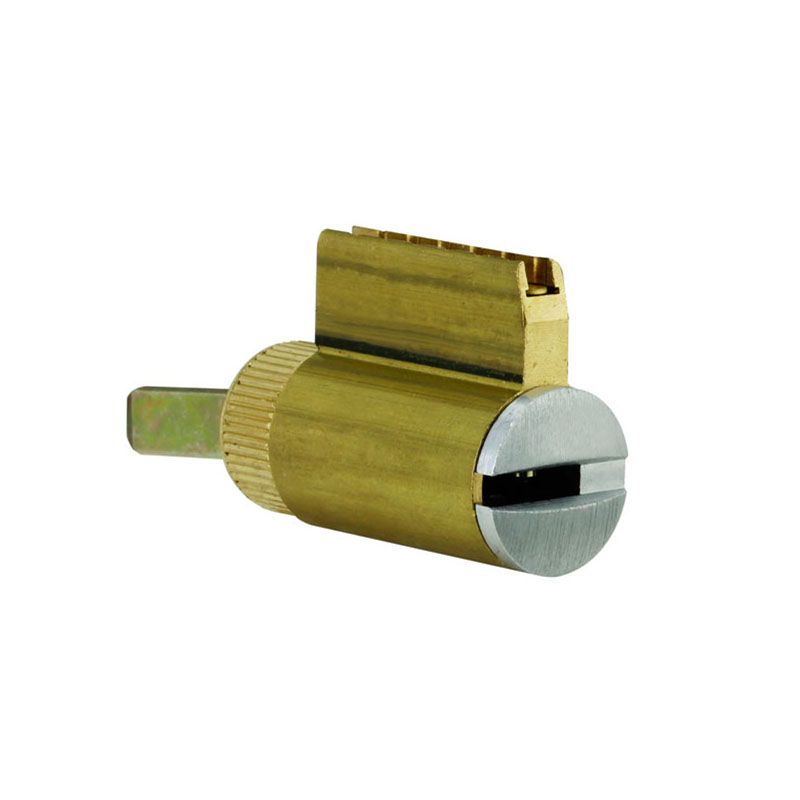

8221PI2M800SC
8221 (PD) Key in Knob / Key in Lever cylinder. This cylinder is used in the Yale commercial range of Key in Knob / Key in Lever and Deadbolt range of locksets.

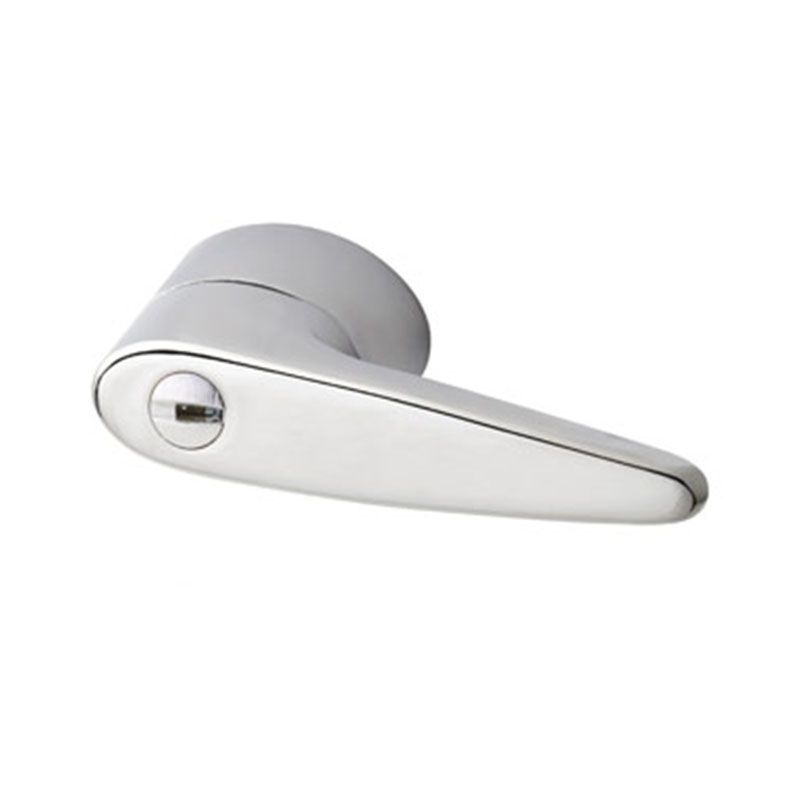

8474PI2M800CP
8474 Garage door lock featuring lever action. 8mm x 108mm square steel spindle.

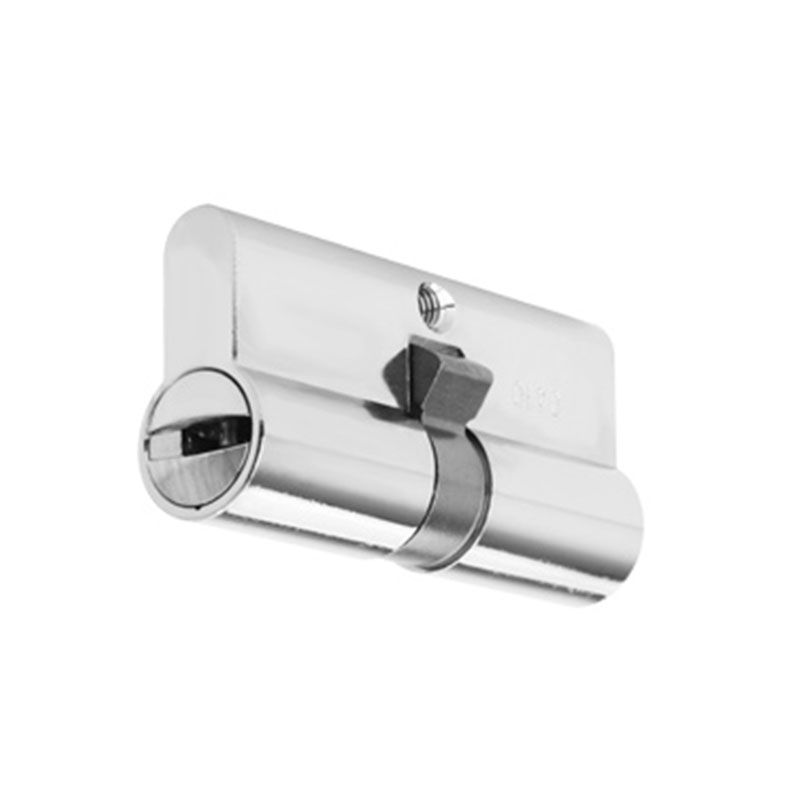

EURPI2M800FDCP
Euro double cylinder - fixed cam. This cylinder is used in many Euro style Mortice locks including Lockwood Optimum and Defender.
Download Dimensions

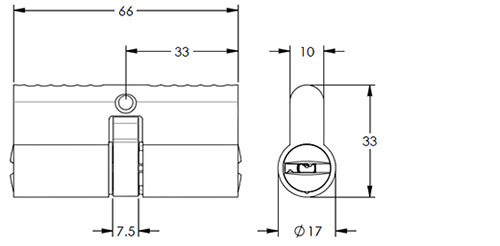

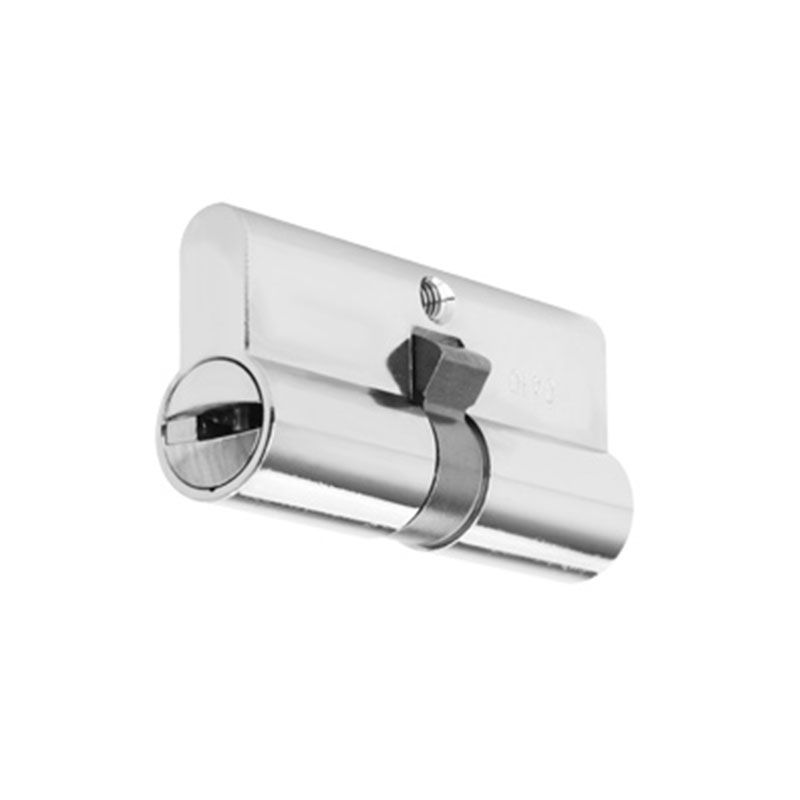

EURPI2M800LDCP
Euro double cylinder - lazy cam. This cylinder is used in various security door locks including 8653, Whitco Tasman and Leichardt locksets.
Download dimensions

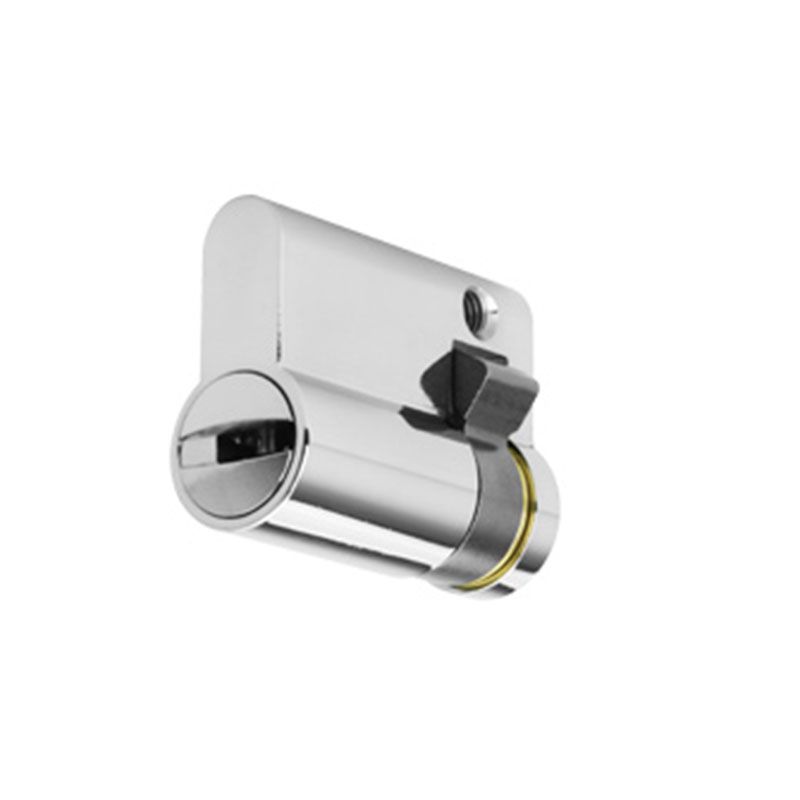

EURPI2M800FSCP
Euro single cylinder - fixed cam. This cylinder is used in many Euro style Mortice locks including Lockwood Optimum and Defender.
Download Dimensions

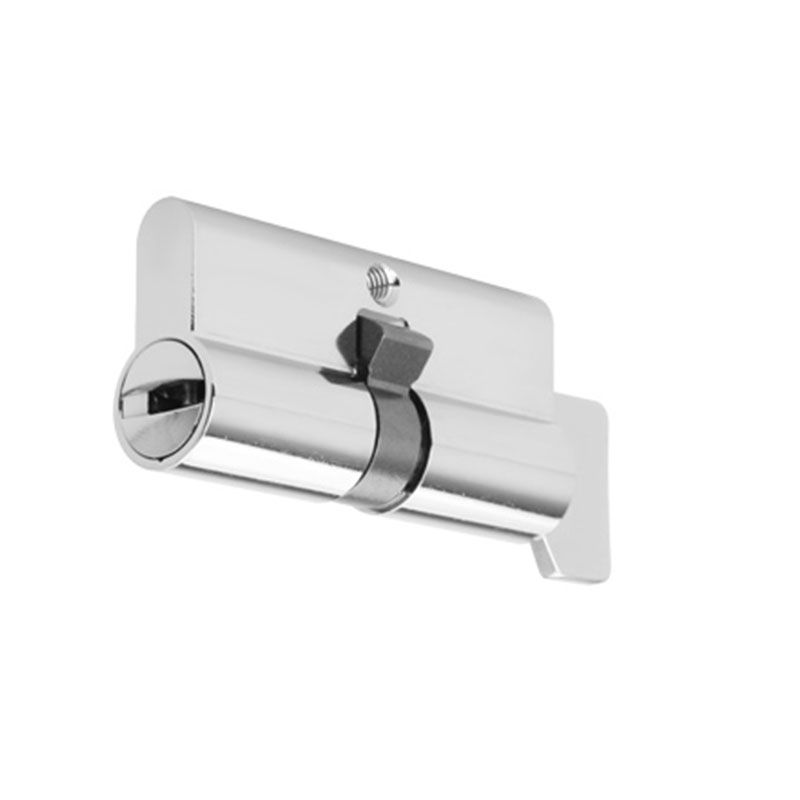

EURPI2M800FTCP
Euro cylinder and turn – fixed cam. This cylinder is used in many Euro style Mortice locks including Lockwood Optimum and Defender.
Download Dimensions

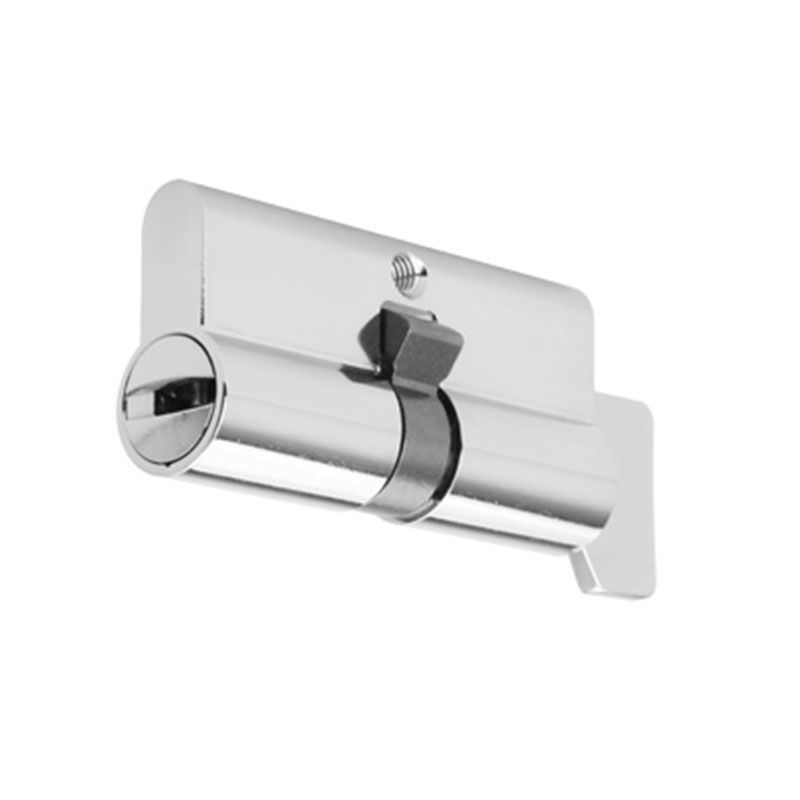

EURPI2M800LLTCP
Euro cylinder and turn – Left hand lazy cam. This cylinder is used in various security door locks including 8653, Whitco Tasman and Leichardt locksets.
EURPI2M800LRTCP
Euro cylinder and turn – Right hand lazy cam. This cylinder is used in various security door locks including 8653, Whitco Tasman and Leichardt locksets.

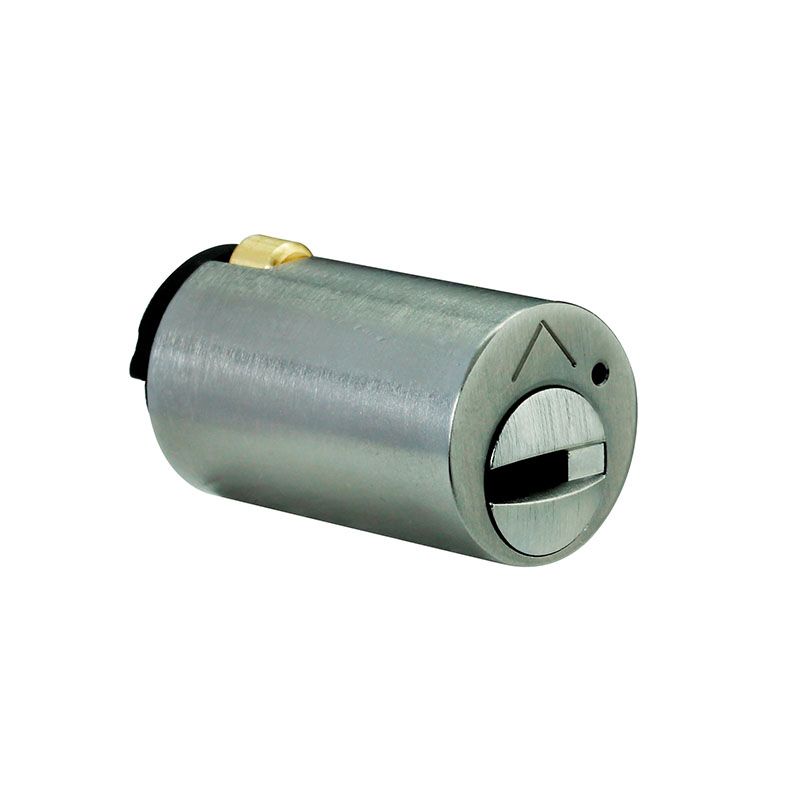

LIWPI2M800SC
The LIW cylinder is used in Lock-it-Well A and R Series switches. The cylinder is ready to be used in A Series switches. For R Series switches the drive plate will need to be changed.
