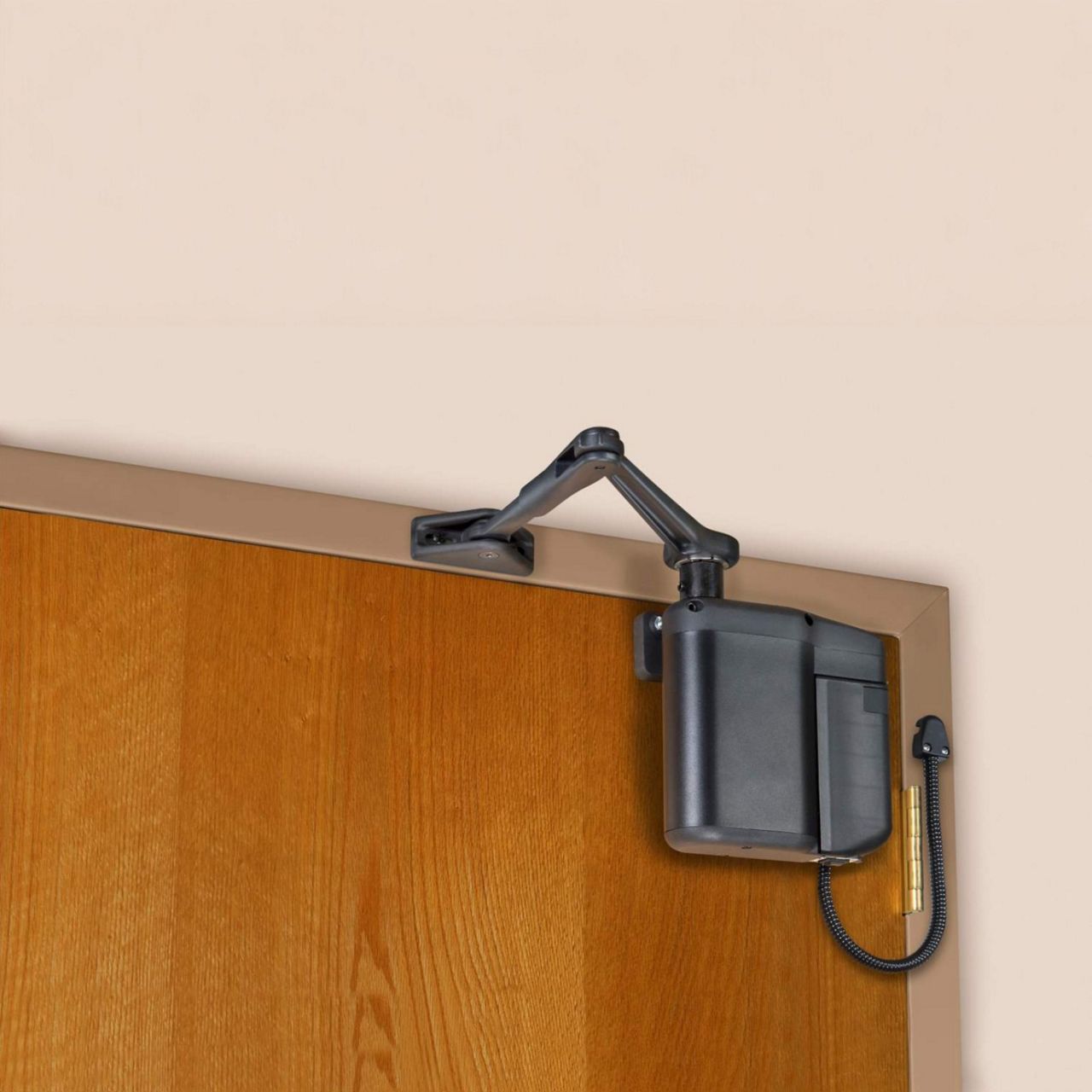

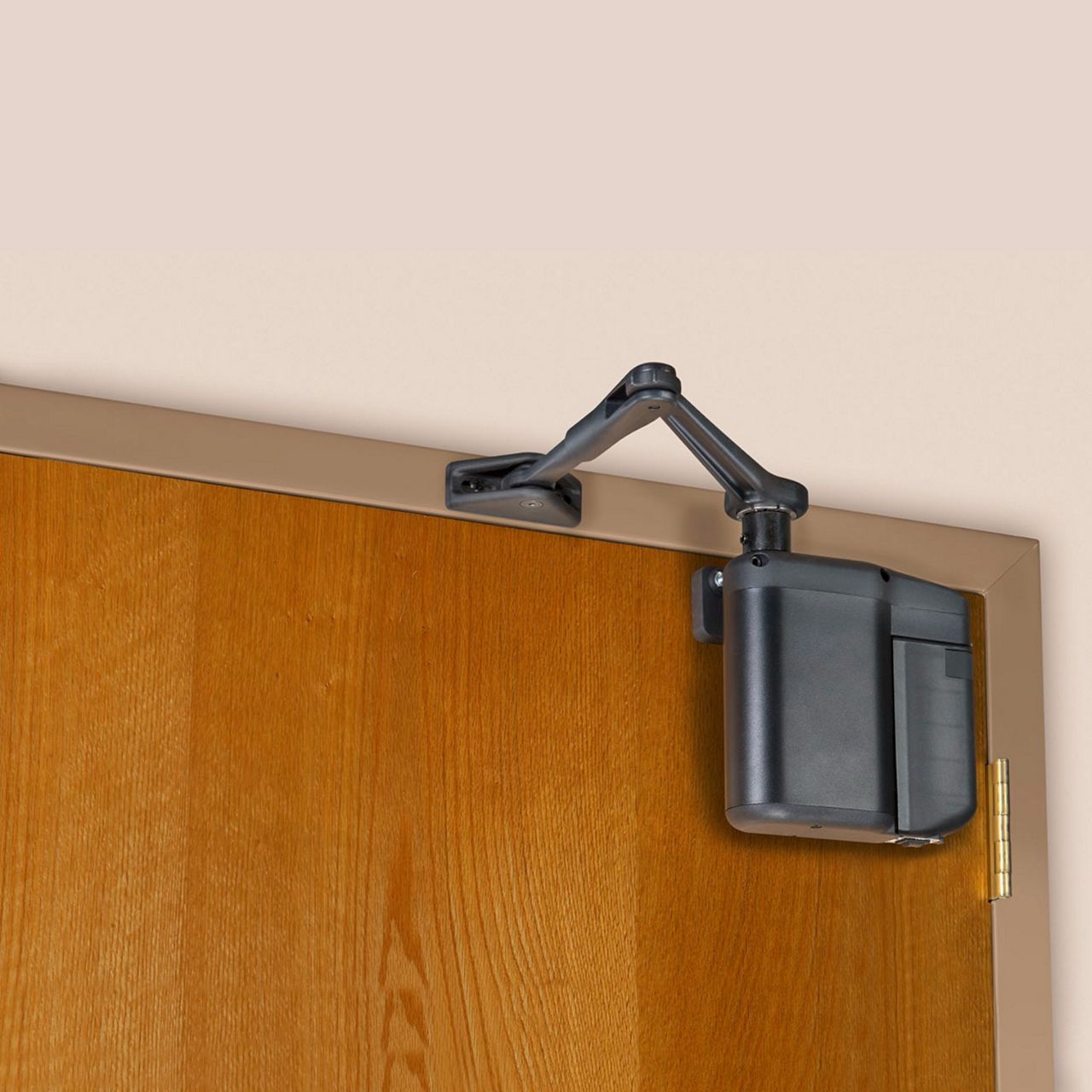

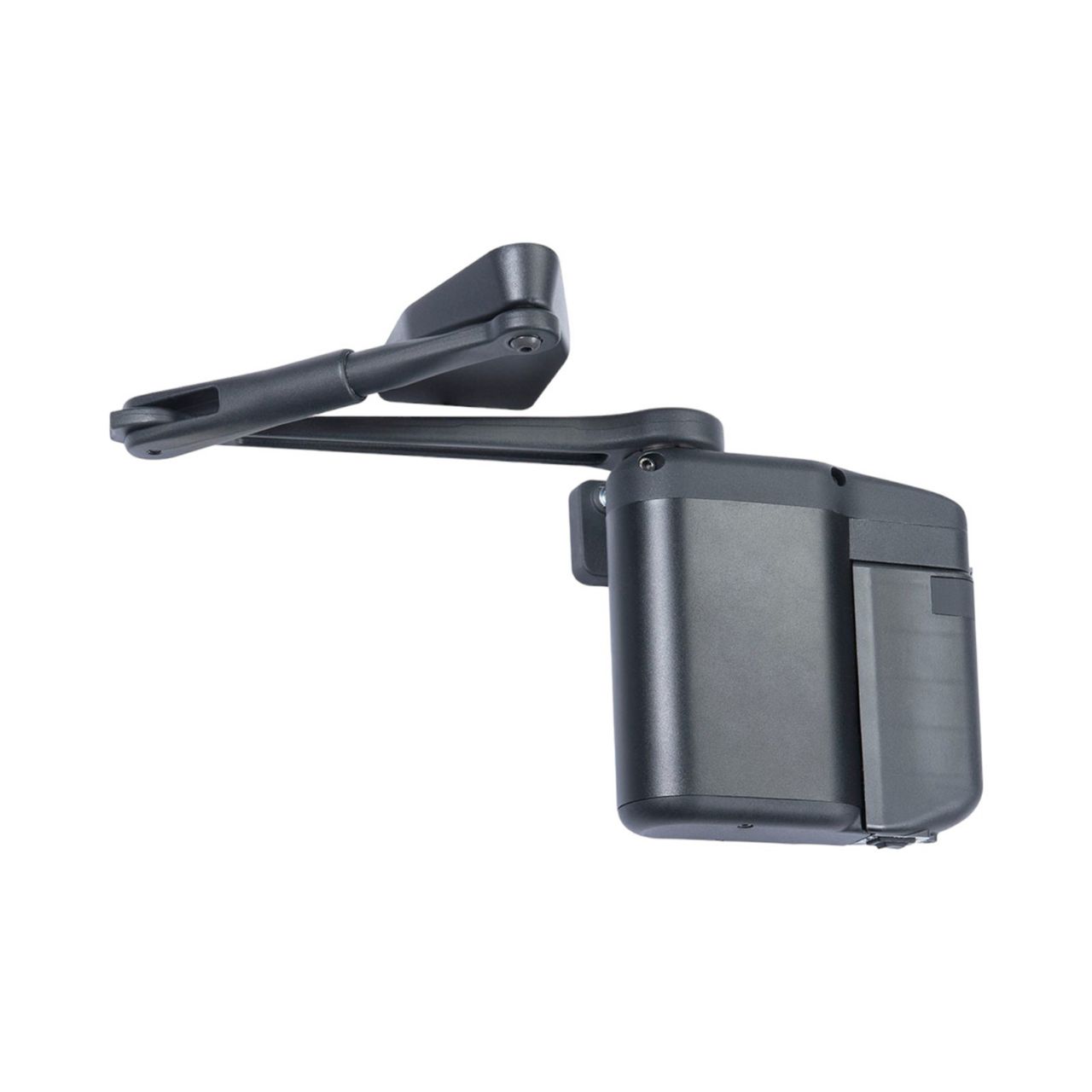

Lockwood 5831 Series Low Energy Operator
Benefits
As one of the world’s only regenerative power door operators, the Lockwood 5831 Series Low Energy Operator has the ability to reduce energy consumption by as much as 100 percent versus other comparable operators. Available in wireless and plug-in versions and able to fit in the tightest of spaces, the 5831 Series is simple to install and use.
Simple Installation
- Mounts on door
- No voltage / low voltage power to opening
- Includes stainless steel, weatherized RF push buttons
- Patented Auto-Tune ensures safety & compliance
Flexible
- Non-handed
- Push and pull side mounting
- Adjustable open/closing force
- Controls doors up to 48” wide & 250 lbs
- Functions like ordinary door closer when used manually
Dependable
- Grade 1 - heavy-duty, commercial design
- Protection from high-wind & abusive environments
- Built-in battery backup allows use during power failure
- Brushless DC motor/gearbox tested 10+ million cycles
- Power Close ensures consistent door latching
Features
- Regenerative drive or continuous duty operation
- 95° max. door opening
- Pull Side Conversion Kit optional
- Push-and-Go (ADA1015T/24V Kit must be connected)
- Power Close (ADA1015T/24V Kit must be connected)
- Radio Frequency stainless steel push buttons
- Integral RF receiver
- Shock absorbing arm
- 24 VDC input port
- ADA1015T/24V hardware kit
- Built-in ON/OFF Switch
- Auxiliary activation input port
- Maximum door width 1200mm
- Maximum door weight 110kg
- Patented Auto-Tune feature ensures safety and compliance
Certifications
- Complies to meet the requirements for the Disability Discrimination Act
- Manufactured in an ISO 9001 and ISO 14001 certified facility
Finish
693T
Black
