Lockwood 200 Series Artefact Square Corner Plate Door Furniture

The 200 Series Door Furniture is 162mm square with square corners. Concealed fixed plates have studs with internal threads located in each corner, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.

Application

Designed for use with Lockwood 3770/3570 Series Mortice Locks; Latches and Push and Pull doors.

Find your local Lockwood stockist Decorative Finishes
Lockwood 200 Series Artefact Square Corner Plate Door Furniture
Lockwood 200 Series Artefact Square Corner Plate Door Furniture

  • Materials
    Aluminium, brass and stainless steel

    Door Thickness
    35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.
    Note: When using flush pulls back to back the minimum door thickness is 40mm.

    Finishes

    Standard

    • Natural Anodised Aluminium NT
    • Satin Stainless Steel SS

    Non Standard

    • Polished Stainless Steel PS
    • Powdercoat PC
    • Marine Grade MG
    • Polished Brass PB

    Dimensions

  • Catalogue

    Lockwood Plate Door Handles Catalogue(PDF, 14 MB)

    Installation Instructions

    Artefact Square Plate Mounting Template(PDF, 364 KB)
    Artefact Series Furniture Mounting Instructions(PDF, 914 KB)
  • Description (Trade Pack)Part number
    Plate Size 162 x 162mm - External Plate with Cyl Hole, No Lever20000NALSS
    Plate Size 162 x 162mm - Internal Plate with Cyl Hole, No Lever20100NALSS
    Plate Size 162 x 162mm - External Plate with Cyl Hole, with Lever20001NA/96LSS
    Plate Size 162 x 162mm - Internal Plate with Cyl Hole, with Lever20101NA/96LSS
    Plate Size 162 x 162mm - External Plate with Emergency Turn, No Lever20002NNLSS
    Plate Size 162 x 162mm - External Plate with Emergency Turn, with Lever20003NN/96LSS
    Plate Size 162 x 162mm - External Plate with Oval T/Knob, with Lever20004NN/96LSS
    Plate Size 162 x 162mm - Internal Plate with Oval T/Knob, with Lever20104NN/96LSS

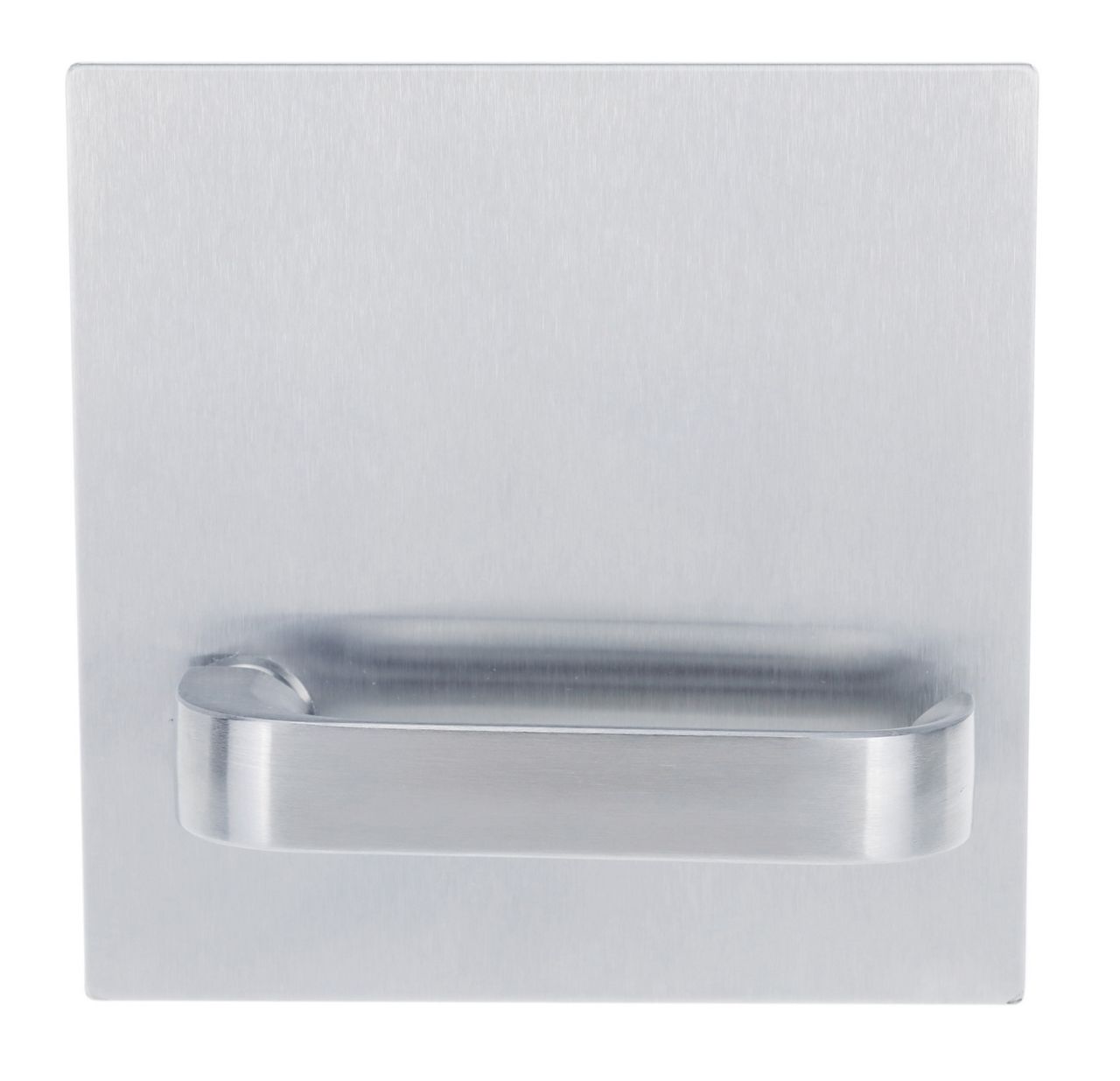

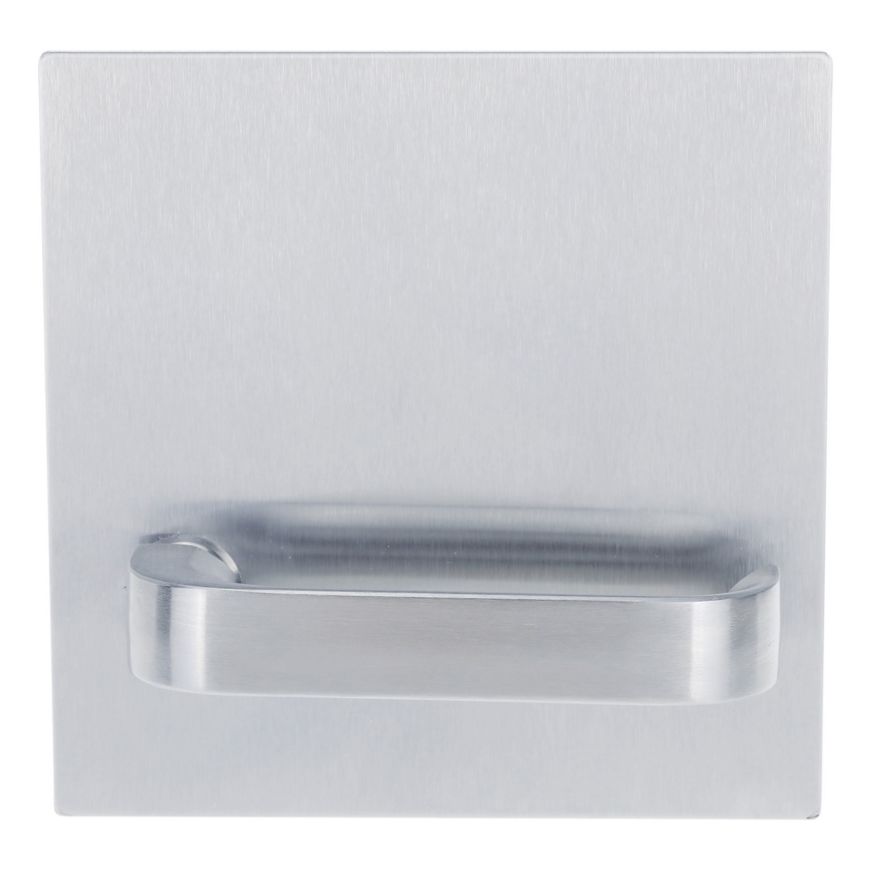

    Plate Size 162 x 162mm - External Plain Plate, with Lever20005NN/96LSS
    Plate Size 162 x 162mm - Internal Plain Plate, with Lever20105NN/96LSS
    Plate Size 162 x 162mm - External Plate with Oval T/Knob, No Lever20006NNLSS
    Plate Size 162 x 162mm - Internal Plate with Oval T/Knob, No Lever20106NNLSS
    Plate Size 162 x 162mm - External Plate with Dual Cyl Holes20010NALSS
    Plate Size 162 x 162mm - External Plate with Privacy Indicator Emergency Turn, No Lever - Suits Selector20013NSLSS
    Plate Size 162 x 162mm - External Plate with Privacy Indicator Emergency Turn, No Lever - Suits Synergy20013NNLSS
    Plate Size 162 x 162mm - External Plate with Privacy Indicator Emergency Turn, with Lever - Suits Selector20014NS/96LSS
    Plate Size 162 x 162mm - External Plate with Privacy Indicator Emergency Turn, with Lever - Suits Synergy20014NN/96LSS
    Plate Size 162 x 162mm - External Plate with Privacy Indicator Oval T/Knob, with Lever - Suits Selector20016NS/96LSS
    Plate Size 162 x 162mm - External Plate with Privacy Indicator Oval T/Knob, with Lever - Suits Synergy20016NN/96LSS
    Plate Size 162 x 162mm - External Plate with Cyl Hole & Led, with Lever20020NA/96LSS
    Plate Size 162 x 162mm - Internal Plate with Cyl Hole & Led, with Lever20120NA/96LSS
    Plate Size 162 x 162mm - External Plate with Led & Lever20022NN/96LSS
    Plate Size 162 x 162mm - Internal Plate with Led & Lever20122NN/96LSS
    Plate Size 162 x 162mm - Internal Plate with Disabled Turn and Lever - Suits Selector20139NS/96LSS
    Plate Size 162 x 162mm - Internal Plate with Disabled Turn and Lever - Suits Synergy20139NN/96LSS
    Push & Pull Handles on Plates 162 x 162mm - External Plain Plate, No Lever20007NNSS
    Push & Pull Handles on Plates 162 x 162mm - Internal Plain Plate, No Lever20107NNSS
    Push & Pull Handles on Plates 162 x 162mm - External Plain Plate with P1 Handle20024NN/P1SS
    Push & Pull Handles on Plates 162 x 162mm - Internal Plain Plate with P1 Handle20124NN/P1SS
    Push & Pull Handles on Plates 162 x 162mm - External Plate with Cyl Hole, P1L or P1R Handle20025NA/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - Internal Plate with Cyl Hole, P1L or P1R Handle20125NA/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - External Plate with Oval Turn, P1L or P1R Handle20027NN/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - Internal Plate with Oval Turn, P1L or P1R Handle20127NN/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - External Plate with Indicating Emergency Turn, P1L or P1R Handle20028NN/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - External Plate with Dual Cyl, P1L or P1R Pull Handle20030NA/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - Internal Plate with Disabled Turn, P1L or P1R Handle20142NN/P1LSS
    Flush Pulls on Plate 162 X 162mm - External Plate with Flush Pull20031NNSS
    Flush Pulls on Plate 162 X 162mm - Internal Plate with Flush Pull20131NNSS
    Flush Pulls on Plate 162 X 162mm - External Plate with Flush Pull & Cyl Hole, L or R20032NALSS
    Flush Pulls on Plate 162 X 162mm - Internal Plate with Flush Pull & Cyl Hole, L or R20132NALSS
    Flush Pulls on Plate 162 X 162mm - External Plate with Flush Pull & Privacy Indicator Emergency Turn, L or R20035NNLSS
    Flush Pulls on Plate 162 X 162mm - Internal Plate with Flush Pull & T/Knob, L or R20134NNLSS
