Lockwood 202 Series Artefact 10mm Radius Corner Plate Door Furniture

The 202 Series Door Furniture is 162mm square with 10mm radius corners. Concealed fixed plates have studs with internal threads located in each corner, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.

Application
Designed for use with Lockwood 3770/3570 Series Mortice Locks; Latches and Push and Pull doors.

Find your local Lockwood stockist Decorative Finishes
6137e-20214nn-102ss
6137e-20214nn-102ss

  • Materials
    Aluminium, stainless steel and brass.

    Door Thickness
    35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.
    Note: When using flush pulls back to back the minimum door thickness is 40mm.

    Finishes

    Standard

    • Natural Anodised Aluminium NT
    • Stainless Steel SS

    Non Standard

    • Polished Stainless Steel PS
    • Powdercoat PC
    • Marine Grade MG
    • Polished Brass PB

    Dimensions

  • Catalogue

    Lockwood Plate Door Handles Catalogue(PDF, 14 MB)

    Installation Instructions

    Artefact 202 Series Furniture Mounting Instructions(PDF, 914 KB)
    Artefact 202 Square Plate Mounting Template(PDF, 364 KB)
  • Description (Trade Pack)Part number
    Plate Size 162 x 162mm - External Plate with Cyl Hole, No Lever20200NALSS
    Plate Size 162 x 162mm - Internal Plate with Cyl Hole, No Lever20300NALSS
    Plate Size 162 x 162mm - External Plate with Cyl Hole, with Lever20201NA/96LSS
    Plate Size 162 x 162mm - Internal Plate with Cyl Hole, with Lever20301NA/96LSS
    Plate Size 162 x 162mm - External Plate with Emergency Turn, No Lever20202NNLSS
    Plate Size 162 x 162mm - External Plate with Emergency Turn, with Lever20203NN/96LSS
    Plate Size 162 x 162mm - External Plate with Oval T/Knob, with Lever20204NN/96LSS
    Plate Size 162 x 162mm - Internal Plate with Oval T/Knob, with Lever20304NN/96LSS
    Plate Size 162 x 162mm - External Plain Plate, with Lever20205NN/96LSS
    Plate Size 162 x 162mm - Internal Plain Plate, with Lever20305NN/96LSS
    Plate Size 162 x 162mm - External Plate with Oval T/Knob, No Lever20206NNLSS
    Plate Size 162 x 162mm - Internal Plate with Oval T/Knob, No Lever20306NNLSS
    Plate Size 162 x 162mm - External Plate with Dual Cyl Holes20210NALSS
    Plate Size 162 x 162mm - External Plate with Privacy Indicator Emergency Turn, No Lever - Suits Selector20213NSLSS
    Plate Size 162 x 162mm - External Plate with Privacy Indicator Emergency Turn, No Lever - Suits Synergy20213NNLSS
    Plate Size 162 x 162mm - External Plate with Privacy Indicator Emergency Turn, with Lever - Suits Selector20214NS/96LSS

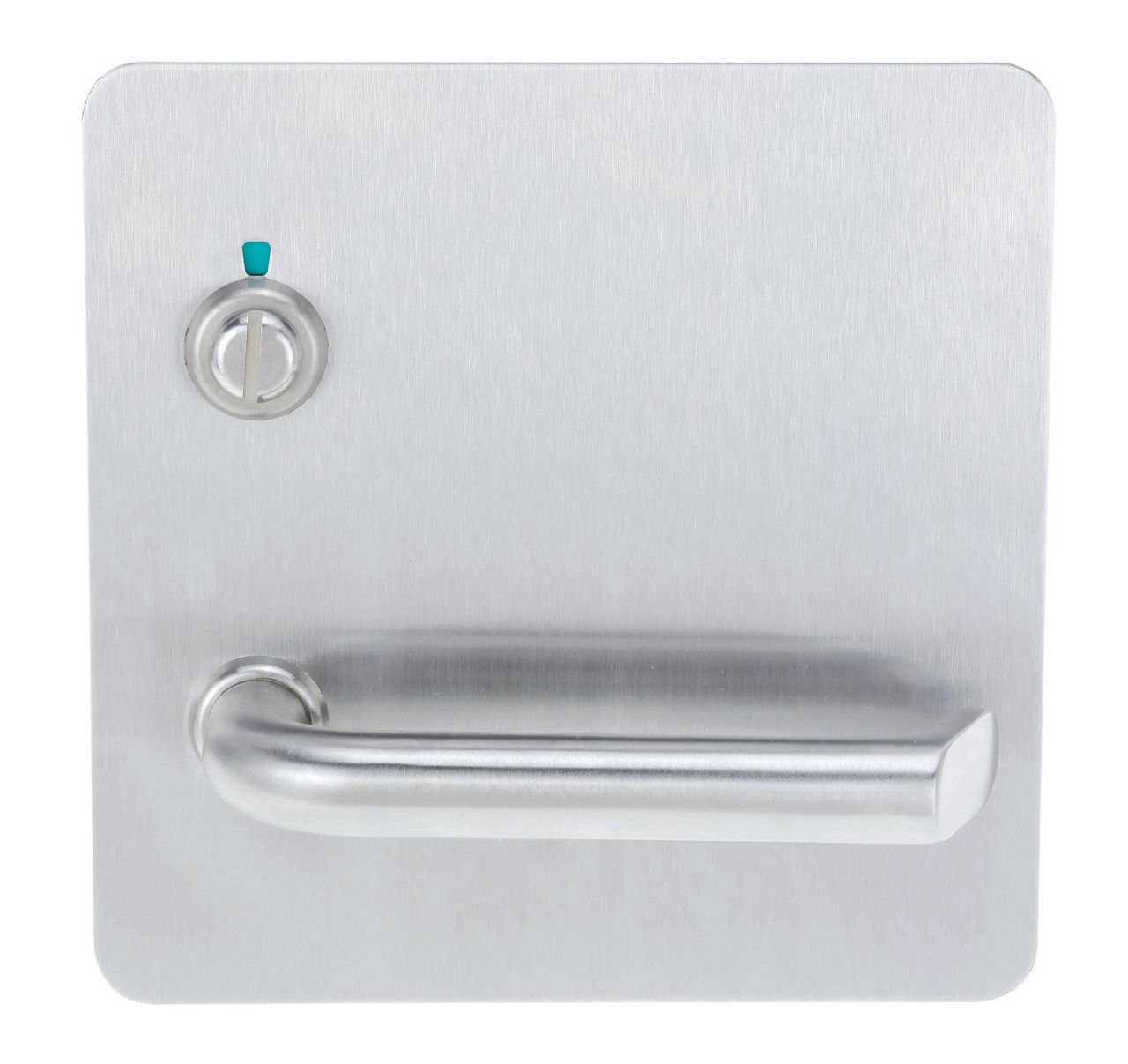

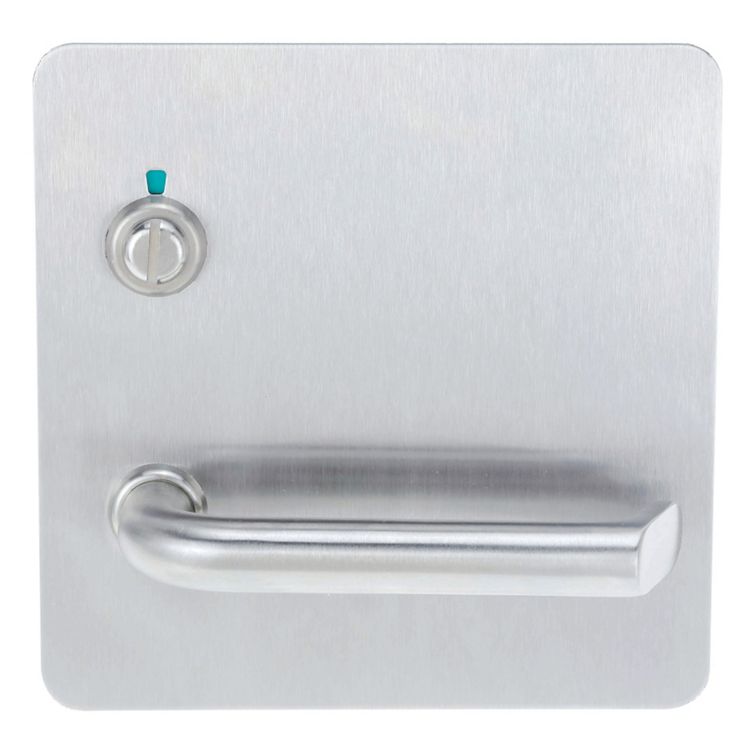

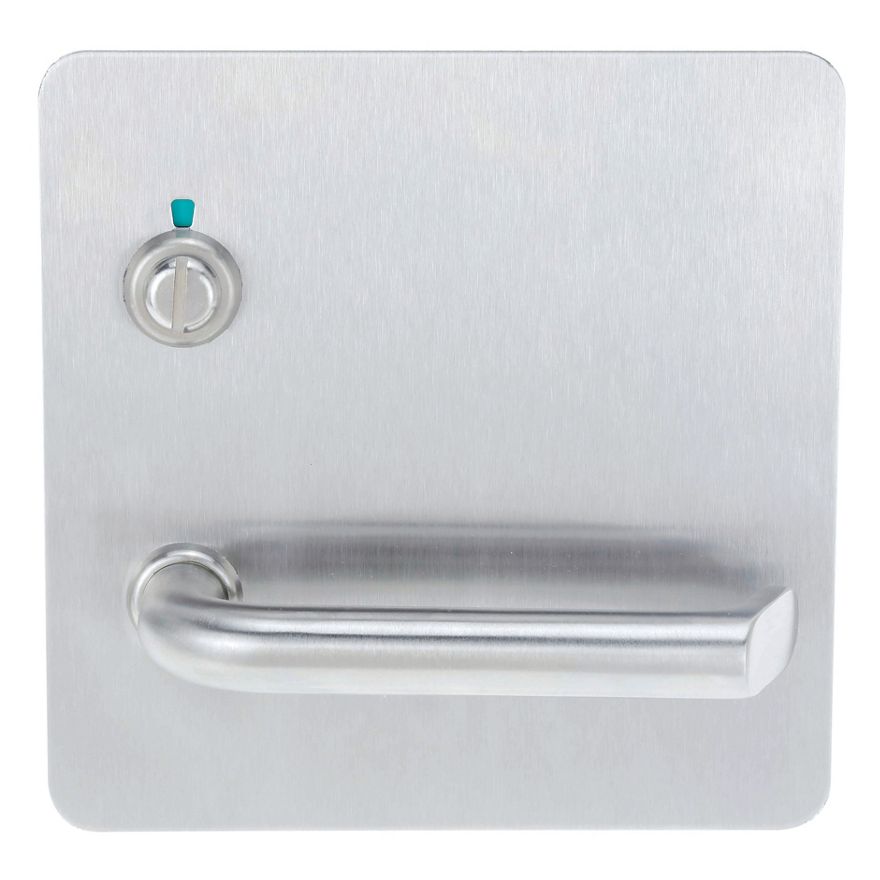

    Plate Size 162 x 162mm - External Plate with Privacy Indicator Emergency Turn, with Lever - Suits Synergy20214NN/96LSS
    Plate Size 162 x 162mm - External Plate with Privacy Indicator Oval T/Knob, with Lever - Suits Selector20216NS/96LSS
    Plate Size 162 x 162mm - External Plate with Privacy Indicator Oval T/Knob, with Lever - Suits Synergy20216NN/96LSS
    Plate Size 162 x 162mm - External Plate with Cyl Hole & Led, with Lever20220NA/96LSS
    Plate Size 162 x 162mm - Internal Plate with Cyl Hole & Led, with Lever20320NA/96LSS
    Plate Size 162 x 162mm - External Plate with Led & Lever20222NN/96LSS
    Plate Size 162 x 162mm - Internal Plate with Led & Lever20322NN/96LSS
    Plate Size 162 x 162mm - Internal Plate with Disabled Turn and Lever - Suits Selector20339NS/96LSS
    Plate Size 162 x 162mm - Internal Plate with Disabled Turn and Lever - Suits Synergy20339NN/96LSS
    Push & Pull Handles on Plates 162 x 162mm - External Plain Plate, No Lever20207NNSS
    Push & Pull Handles on Plates 162 x 162mm - Internal Plain Plate, No Lever20307NNSS
    Push & Pull Handles on Plates 162 x 162mm - External Plain Plate with P1 Handle20224NN/P1SS
    Push & Pull Handles on Plates 162 x 162mm - Internal Plain Plate with P1 Handle20324NN/P1SS
    Push & Pull Handles on Plates 162 x 162mm - External Plate with Cyl Hole, P1L or P1R Handle20225NA/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - Internal Plate with Cyl Hole, P1L or P1R Handle20325NA/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - External Plate with Oval Turn, P1L or P1R Handle20227NN/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - Internal Plate with Oval Turn, P1L or P1R Handle20327NN/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - External Plate with Indicating Emergency Turn, P1L or P1R Handle20228NN/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - External Plate with Dual Cyl, P1L or P1R Pull Handle20230NA/P1LSS
    Push & Pull Handles on Plates 162 x 162mm - Internal Plate with Disabled Turn, P1L or P1R Handle20342NN/P1LSS
    Flush Pulls on Plate 162 X 162mm - External Plate with Flush Pull20231NNSS
    Flush Pulls on Plate 162 X 162mm - Internal Plate with Flush Pull20331NNSS
    Flush Pulls on Plate 162 X 162mm - External Plate with Flush Pull & Cyl Hole, L or R20232NALSS
    Flush Pulls on Plate 162 X 162mm - Internal Plate with Flush Pull & Cyl Hole, L or R20332NALSS
    Flush Pulls on Plate 162 X 162mm - External Plate with Flush Pull & Privacy Indicator Emergency Turn, L or R20235NNLSS
    Flush Pulls on Plate 162 X 162mm - Internal Plate with Flush Pull & T/Knob, L or R20334NNLSS
