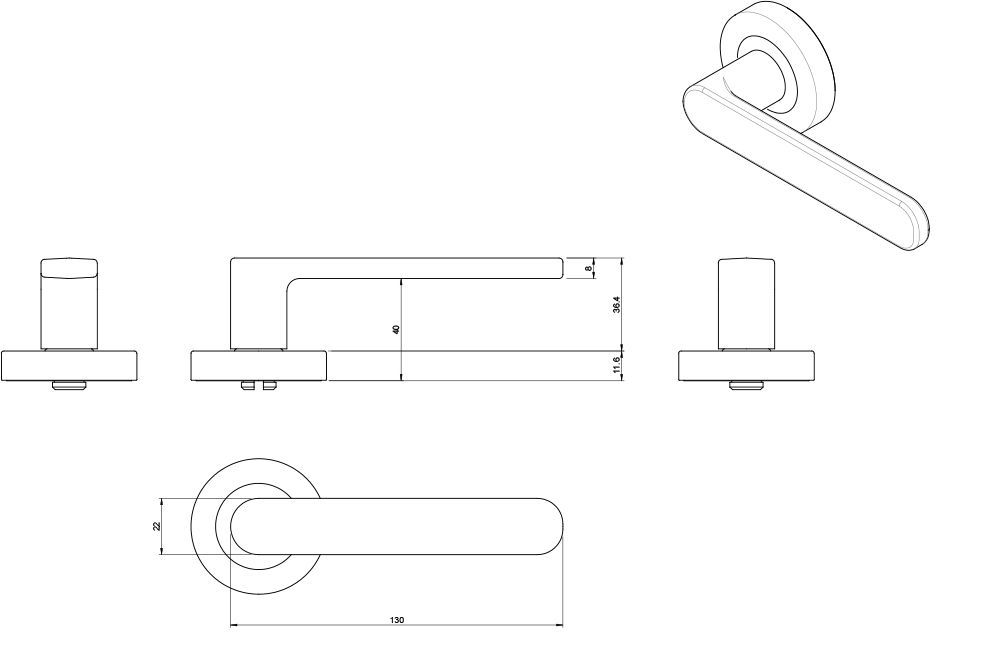

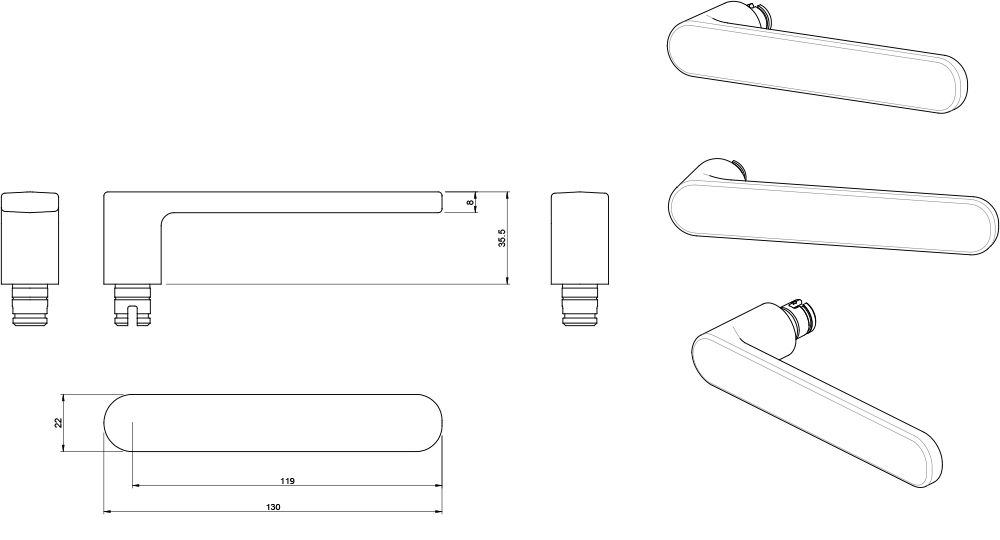

• Dimensions

    Length: 130mm
    Projection: 48mm
    Finger clearance: 40mm

    Handing
    A removable stop screw allows all symmetrically designed levers (e.g. Cadenza) to be handed on site. Levers of asymmetrical design (e.g. Veloce) cannot be reversed. Specify left or right handed when ordering.

    Materials
    All Lockwood roses and levers contained in the 1220 series are of solid brass construction.

    Fixing
    Fully concealed on both sides.

    Door Thickness
    33mm minimum for 5260 Latches and 32mm minimum for Lockwood 3770 Selector & 3570 Synergy Series Mortice Latches. Maximum door thickness 50mm.

    Finishes

    Standard

    • Satin Chrome Brushed - SC

    Non Standard

    • Architectural Bronze - AZ
    • Architectural Bronze Unlaquered - AU
    • Antique Copper - AC
    • Chrome Plate - CP
    • Oil Rubbed Bronze - ORB
    • Polished Brass - PB
    • Polished Brass Unlacquered - BU
    • Polyester Powdercoat - PC
    • Satin Brass - SB

      Rose Dimensions


    • Trade Pack
      Description Part Number

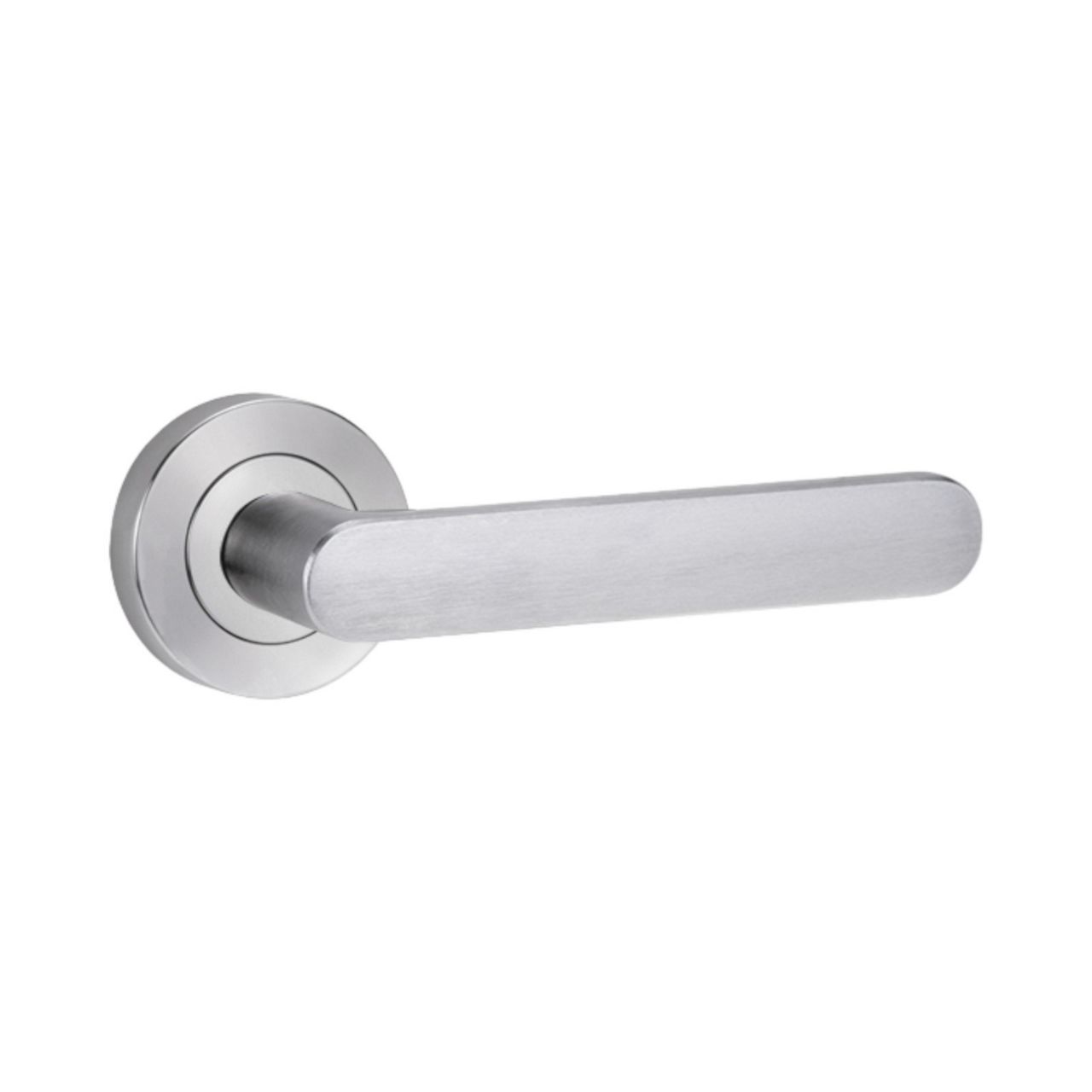

      Round Rose Furniture - Full Set 1220/1221/106SC
      Round Rose Furniture - Half Set Exterior 1220/106SC
      Round Rose Furniture - Half Set Interior 1221/106SC
      Round Rose Furniture - Fixed Half Set Exterior 1224/106SC
      Symphony Round Rose Furniture - Fixed Half Set Interior 1225/106SC

      Note: Items shown above feature the Satin Chrome Brushed finish (SC). For alternative finish substitute SC for appropriate finish.

      Standard Finishes

      Satin Chrome Brushed - SC

      Non-Standard Finishes

      Architectural Bronze - AZ
      Architectural Bronze Unlaquered - AU
      Antique Copper - AC
      Chrome Plate - CP
      Oil Rubbed Bronze - ORB
      Polished Brass - PB
      Polished Brass Unlacquered - BU
      Polyester Powdercoat - PC
      Satin Brass - SB

      1220 Series Cylinder and Turn Escutcheons

      A range of escutcheons for the fitting of cylinders, turnknobs and emergency turns are available in the same wide choice of metal finishes to complement all Symphony lever furniture installations.

      Features of the 1220 Series Symphony Cylinder and Turn Escutcheons

      • Concealed fixing
      • Designed and manufactured in Australia
      • Turn escutcheons feature a unique mechanism that automatically adjusts the length of the tail bar to suit a particular door thickness

      Selector 3700 Series Mortice Lock Through fix Escutcheon Kits

      A new range of escutcheon kits has been introducted as part of the release of the new Selector 3700 Series Mortice Lock. This new range of escutcheon kits are designed to be fixed through the new mortice lock and door to provide more robust fixing.

      Key Features

      • Supplied with two escutcheons to accomodate both exterior and interior functions
      • Supplied with two screws for through fixing which can be cut to length to suit 32-50mm door thickness
      • Designed to be fixed through the door for strength and durable performance
      • Uniform rose and escutcheon dimensions for a more aesthetically pleasing installation

      Double Oval Cylinder Escutcheons Kit

      Part Number: 1226/6SC

      Designed for use with Selector Series Mortice Locks. Concealed through fixing with stainless steel screws.

      Escutcheons supplied
      Exterior : Oval Cylinder
      Interior : Oval Cylinder

      Note: If only one oval cylinder escutcheon is required, please order 1226/ISC. Wood screws will be provided for surface fixing.

      Oval Cylinder and Turnknob Escutcheons Kit

      Standard Turnknob Escutcheon

      Part Number: 1226/7NSC

      Designed for use with Selector Series Mortice Locks. Concealed through fixing with stainless steel screws.

      Escutcheons supplied
      Exterior : Oval Cylinder
      Interior : Oval Turnknob

      Privacy Indicating Emergency Turn and Disabled Accessible Turnknob Escutcheons Kit

      Privacy Indicating Emergency Turn EscutcheonPrivacy Indicating Accessible Turn Escutcheon

      Part Number: 1228/9PRSC

      Designed for use with Selector Series Mortice Locks. Concealed through fixing with stainless steel screws.

      Escutcheons supplied
      Exterior : Privacy Indicating Emergency Turn
      Interior : Privacy Indicating Disabled Accessible Turnknob

      Note: Handing is based on the door. A right-handed escutcheon kit suits a right-handed door, this kit will be supplied with a left-handed disabled accessible turnknob, as this turnknob is intended to be used on the interior side of the door. Only kits with disabled accessible turnknobs need handing.

      Note: Items shown above feature common kit configurations, for more kit variations please refer to the ordering procedure in the product catalogue in the Downloads seciton.

      Synergy Series Mortice Lock Escutcheons

      Designed to be surface fixed with wood screws, concealed by a threaded rose trim.

      Oval Cylinder Escutcheon



      Designed for use with Synergy Series Mortice Locks. Concealed fixing via wood screws.

      Part Number: 1226/ISC



      Oval Turnknob Escutcheon

      Standard Turnknob Escutcheon

      Designed for use with Synergy Series Mortice Locks. Concealed fixing via wood screws.

      Part Number: 1227/INSC

      Privacy Indicating Oval Turnknob Escutcheon

      Privacy Indicating Turnknob Escutcheon

      Designed for use with Synergy Series Mortice Locks. Concealed fixing via wood screws.

      Part Number: 1227/IPSC

      Emergency Turn Escutcheon

      Emergency Turn Escutcheon

      Designed for use with Synergy Series Mortice Locks. Concealed fixing via wood screws.

      Part Number: 1228/INSC

      Privacy Indicating Emergency Turn Escutcheon

      Privacy Indicating Emergency Turn Escutcheon

      Designed for use with Synergy Series Mortice Locks. Concealed fixing via wood screws.

        Part Number: 1228/IPSC

      Disabled Accessible Turnknob Escutcheon

      Accessible Turn Escutcheon

      Designed for use with Synergy Series Mortice Locks. Concealed fixing via wood screws.

      Part Number: 1229/INLSC

      Note: Disabled Accessible Turnknobs require handing

      Privacy Indicating Disabled Accessible Turnknob Escutcheon

      Privacy Indicating Accessible Turn Escutcheon

      Designed for use with Synergy Series Mortice Locks. Concealed fixing via wood screws.

      Part Number: 1229/IPLSC

      Note: Disabled Accessible Turnknobs require handing

       Note: Items shown above feature the Satin Chrome Brushed finish (SC). For alternative finish substitute SC for appropriate finish.
