The Lockwood Vivid® Collection is a stylish range of internal door furniture suitable for use in residential dwellings.
The Vivid® Collection includes three different internal leversets: the Privacy Leverset, Passage Leverset and Half Dummy Lever.
The Privacy Leverset comes with Privacy Tubular Latches and an accessory pack (including spindles, springs, mounting wood screws, through fix screws, privacy pin and a pointed tool), while the Passage Leverset comes with tubular latches and a different accessory pack (including spindles, springs, mounting wood screws, and through fix screws), specifically designed for passage door applications. The Half Dummy Lever comes with a fixed lever and timber mounting screws to be used on cupboard or wardrobe doors.
The Vivid® Collection’s three finishes are derived from a physical vapor deposition (PVD) surface treatment which offers a range of benefits, including sustainability and durability. PVD coatings exhibit unparalleled hardness, with four times the robustness of chrome, along with superior scratch and wear resistance, and reduced susceptibility to corrosion. In addition, PVD coatings do not emit toxic liquids or gases during manufacturing, making them a cleaner and safer method of production.
PVD Satin Brass
PVD Satin Gun Metal
PVD Satin Bronze
Lever 1 - Passage (VIV1/V1SBPVD)

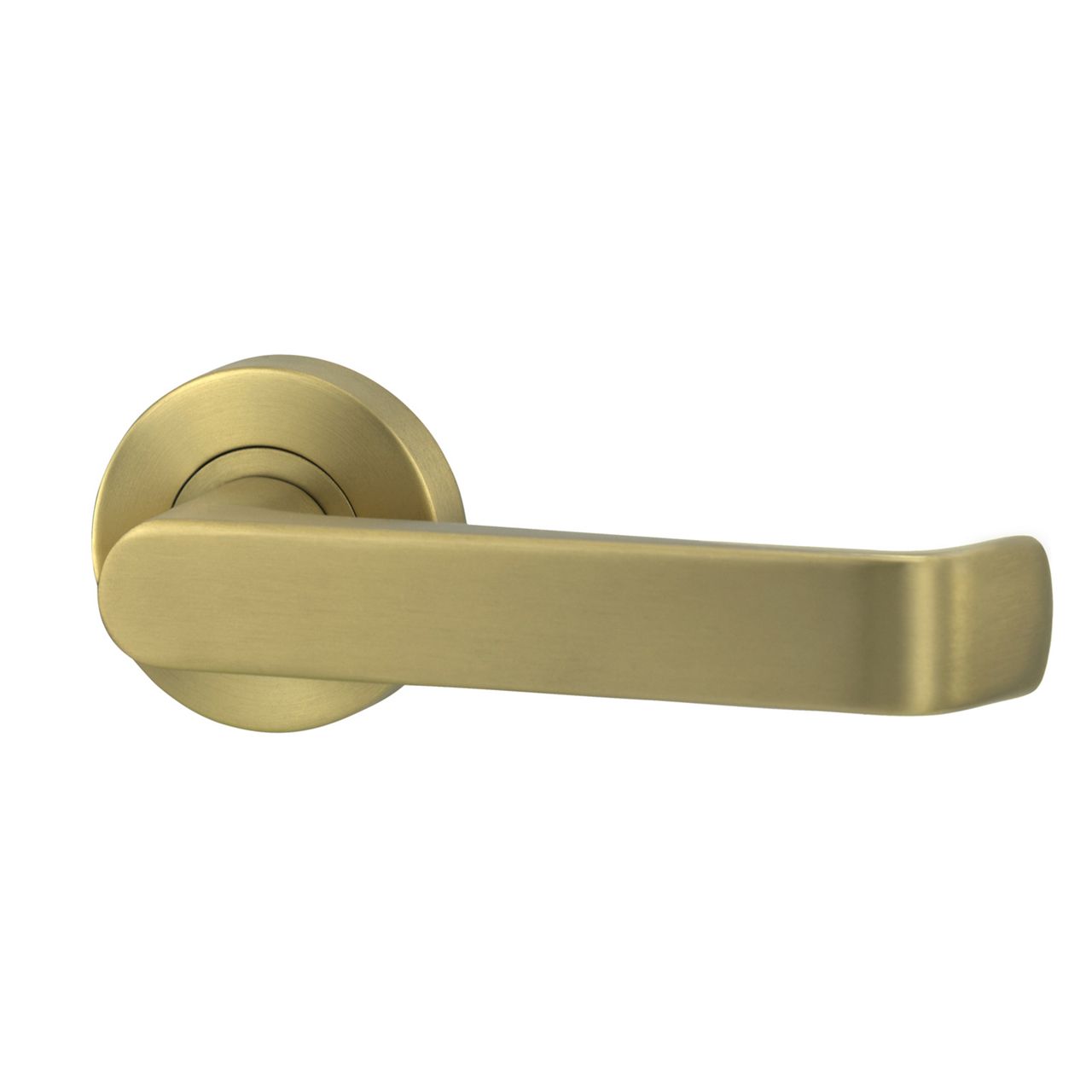

Lever 1 - Passage (VIV1/V1SBPVD)

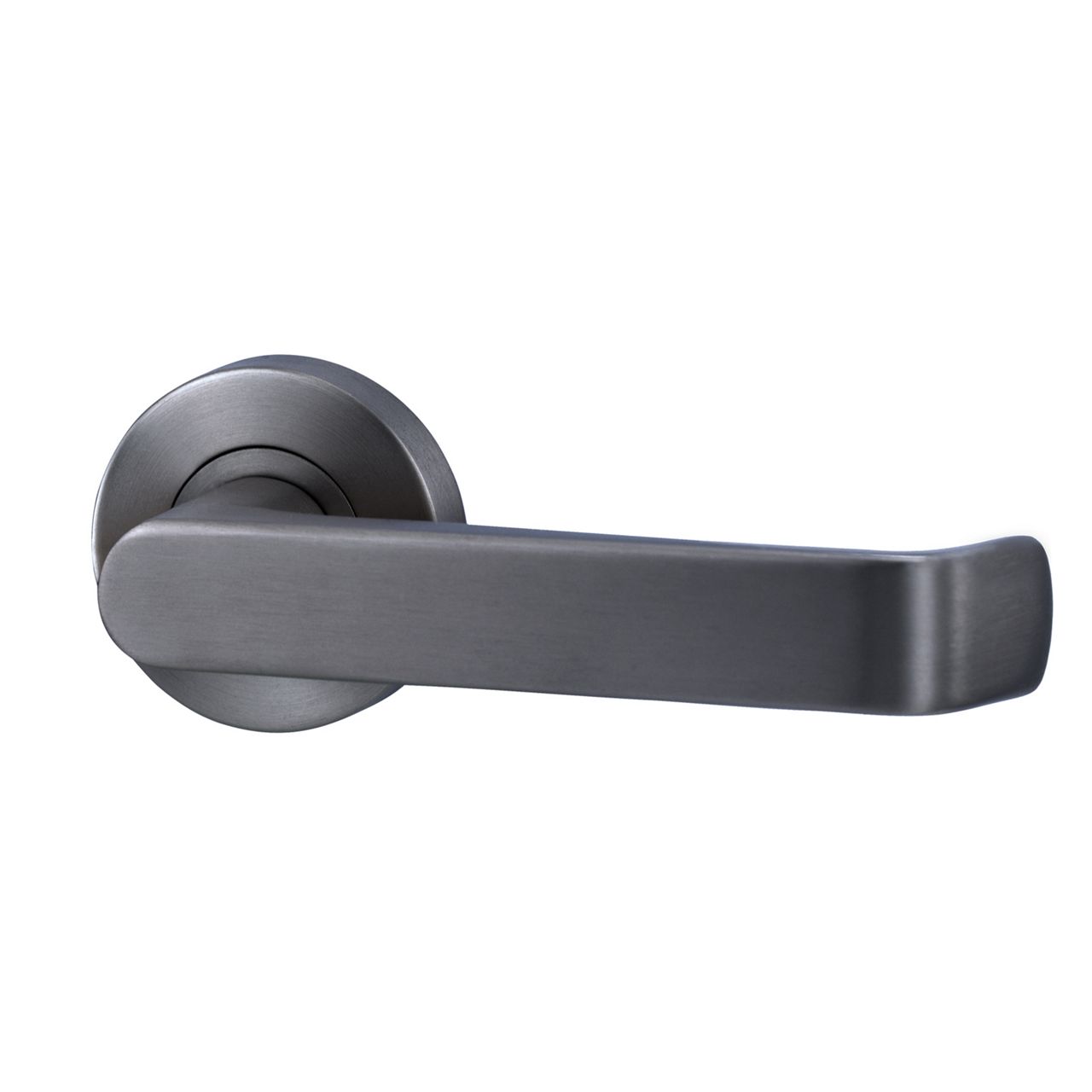

Lever 1 - Passage (VIV1/V1GMPVD)

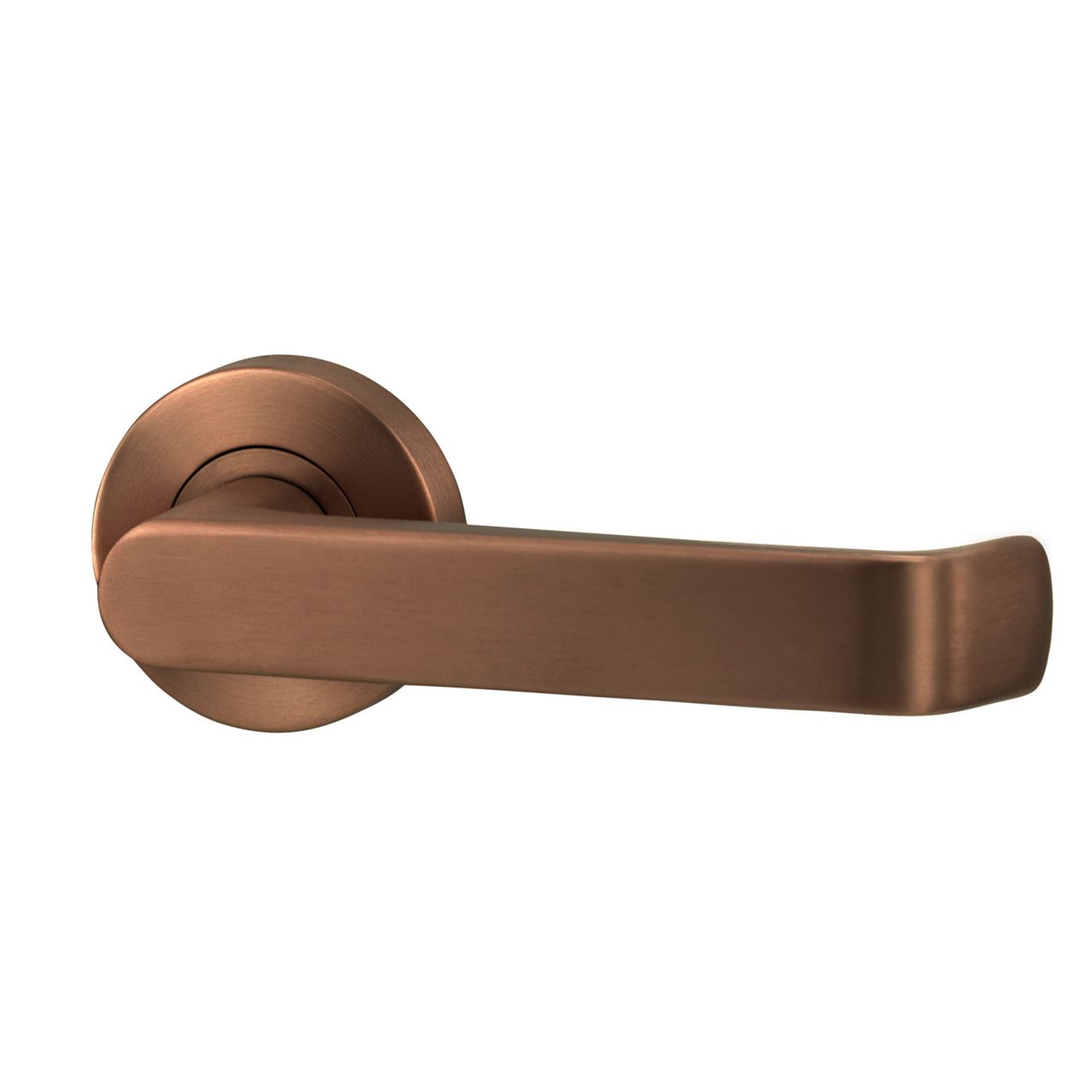

Lever 1 - Passage (VIV1/V1BZPVD)

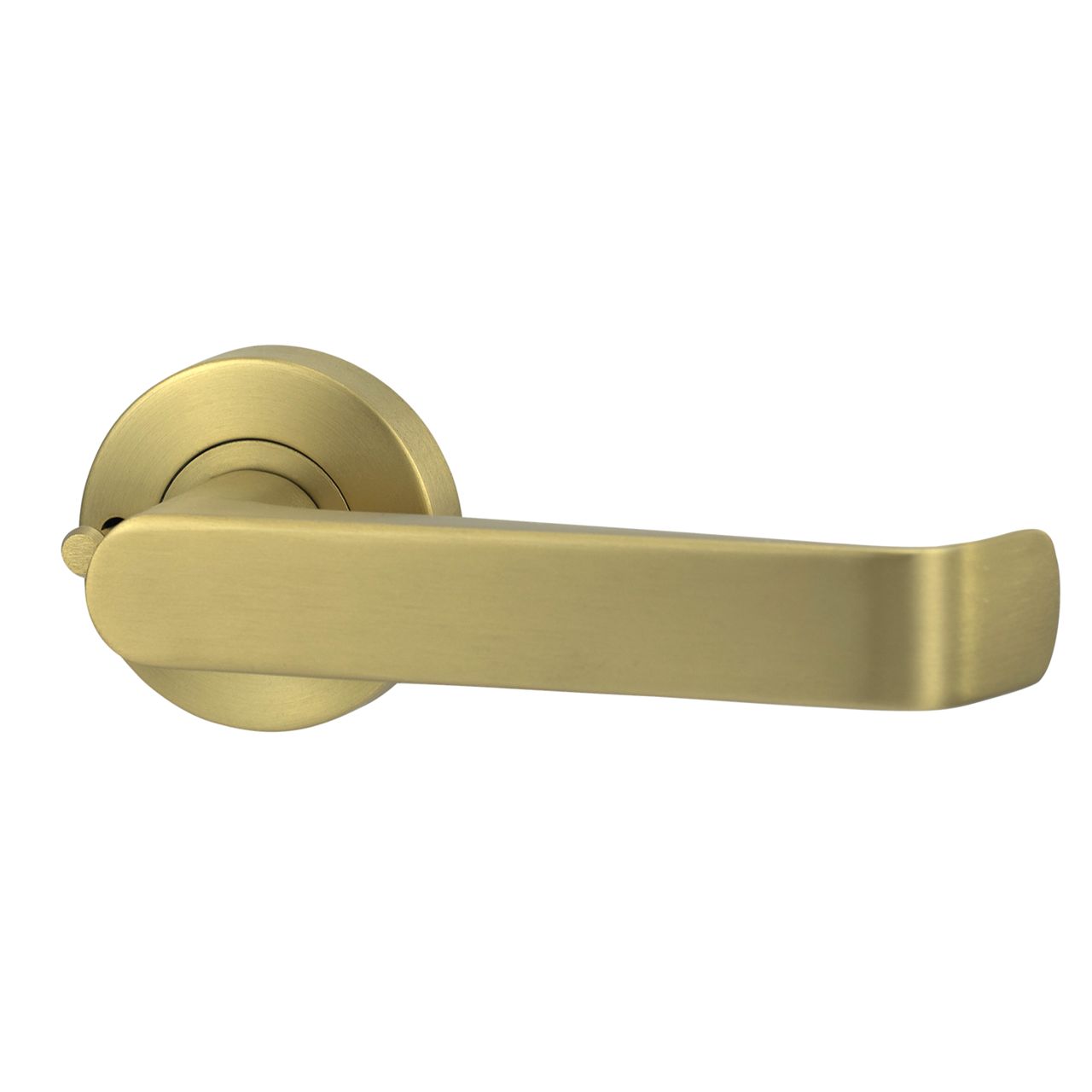

Lever 1 - Privacy (VIV2/V1SBPVD)

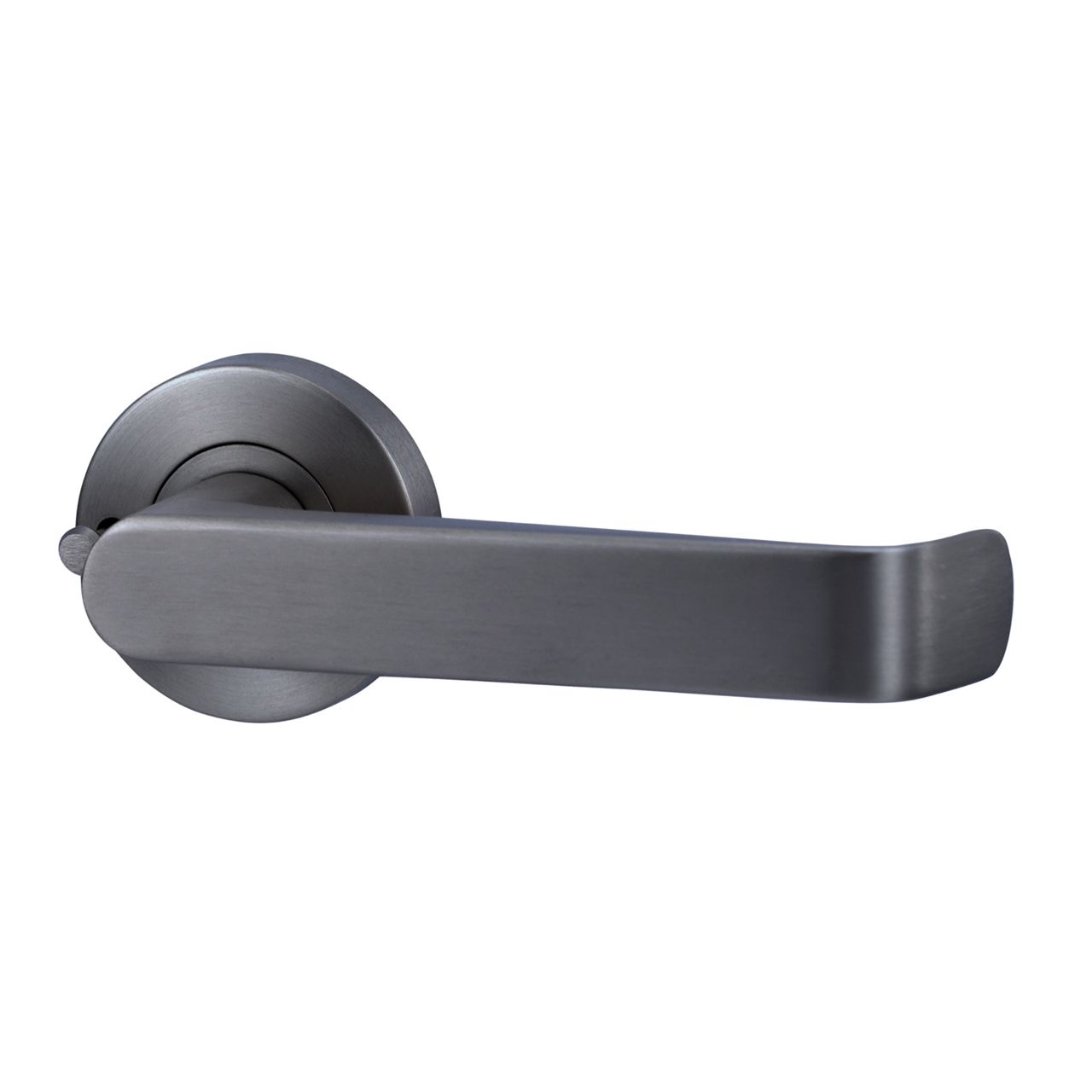

Lever 1 - Privacy (VIV2/V1GMPVD)

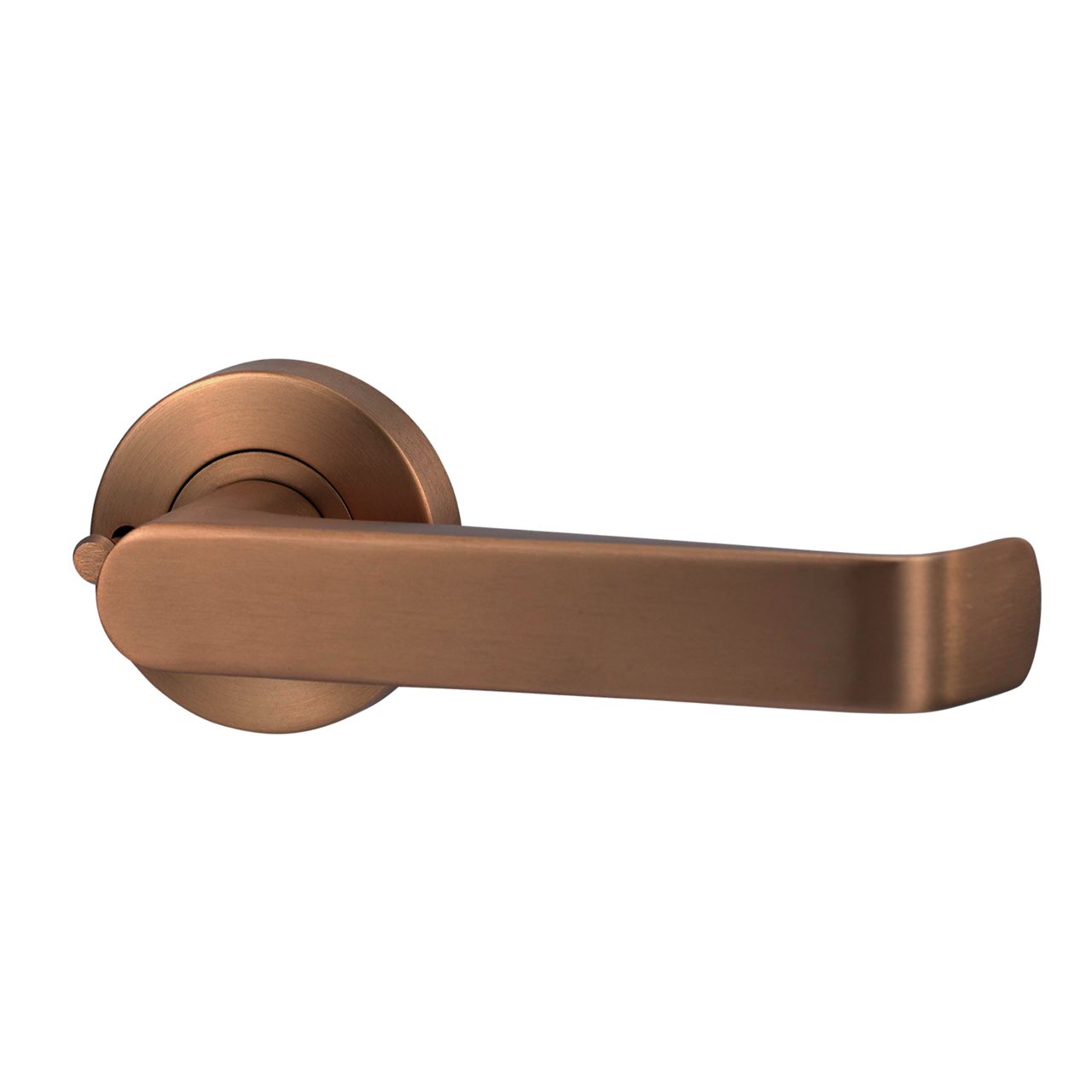

Lever 1 - Privacy (VIV2/V1BZPVD)
Tested to AS4145.2 2008 for Durability passing D7 - 300,000 cycles.
Tested to AS4145.2 2008 for Neutral Salt Spray, passing C6 - 168 hours.
Vivid® Collection includes levers (as shown) that meet the requirements of AS1428.1-2009, Designed for access and mobility.

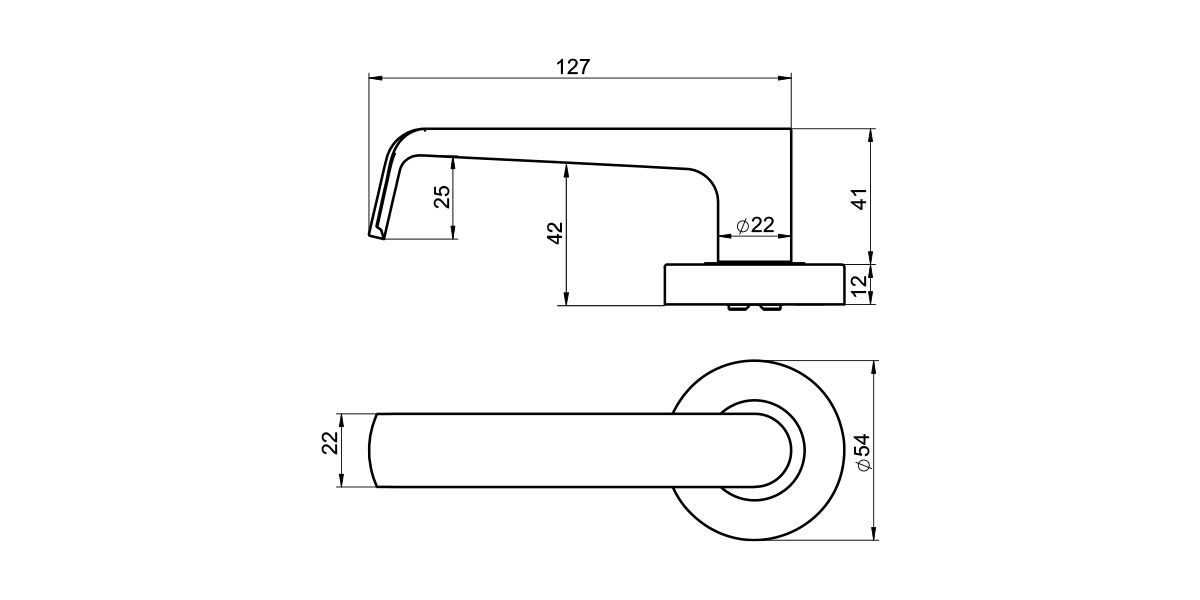

Rose Dimensions
54mm diameter x 12mm
Materials
All visible surfaces 304 stainless steel with durable PVD surface treatment.
Latches
Passage sets are available with a 60mm backset tubular latch. Privacy sets are supplied with a 60mm backset privacy latch which includes a privacy pin for the inside of the door and an external emergency release function. The latch is automatically released when the internal handle is operated and is easily adapted for both open in and open out applications. All latches are supplied with industry standard “T” strikes box.
Door Thickness
32-45mm hinged door for Privacy set
32-45mm hinged door for Passage set
Finishes
PVD Satin Brass (SB), PVD Satin Gun Metal (GM), PVD Satin Bronze (BZ)
Length
127mm
Projection
53mm
Description | Part number | Bar code |
---|---|---|
LEVER 1 - PASSAGE | ||
LEVER V1 PRIVACY SET WITH LATCH | VIV1/V1SBPVD | 9340116133003 |
LEVER V1 PASSAGE SET WITH LATCH | VIV1/V1GMPVD | 9340116133010 |
LEVER V1 PASSAGE SET WITH LATCH | VIV1/V1BZPVD | 9340116132990 |
LEVER 1 - PRIVACY | ||
LEVER V1 PRIVACY SET WITH LATCH | VIV2/V1SBPVD | 9340116132983 |
LEVER V1 PRIVACY SET WITH LATCH | VIV2/V1GMPVD | 9340116133027 |
LEVER V1 PRIVACY SET WITH LATCH | VIV2/V1BZPVD | 9340116133003 |
LEVER 1 - DUMMY | ||
VIVID LEVER V1 DUMMY HALF SET SATIN BRONZE | VIV3/V1BZPVD | 9340116141725 |
VIVID LEVER V1 DUMMY HALF SET SATIN GUN METAL | VIV3/V1GMPVD | 9340116141763 |
VIVID LEVER V1 DUMMY HALF SET SATIN BRASS | VIV3/V1SBPVD | 9340116141770 |
Description | Quantity |
---|---|
Lever | 2 |
Rose Trim | 2 |
Passage Latch | 1 |
Face Plate | 1 |
Spindle | 2 |
Spindle Springs | 2 |
Through Fix Screws | 2 |
Hex Inserts | 2 |
Striker Plate with dust box | 1 |
Timber Mounting screws | 4 |
Description | Quantity |
---|---|
Lever | 2 |
Rose Trim | 2 |
Privacy Latch | 1 |
Face Plate | 1 |
Privacy Pin | 1 |
Pointed tool | 1 |
Spindle | 2 |
Spindle Springs | 2 |
Through Fix Screws | 2 |
Hex Inserts | 2 |
Striker Plate with dust box | 1 |
Timber Mounting screws | 4 |
Description | Quantity |
---|---|
Lever | 1 |
Rose Trim | 1 |
Timber Mounting screws | 4 |
Proudly introducing the Lockwood Vivid® Collection. Available in three luxurious finishes – SATIN BRASS, SATIN GUNMETAL, and SATIN BRONZE, this is a range well-placed to satisfy the growing consumer trend towards coloured door hardware finishes.
Vivid® Collection levers come in Passage, Privacy and Dummy internal door formats, as well as sliding door components like cavity sliders, edge pulls, and flush pulls. Accessories such as door stops and hinges complete the full internal application.
