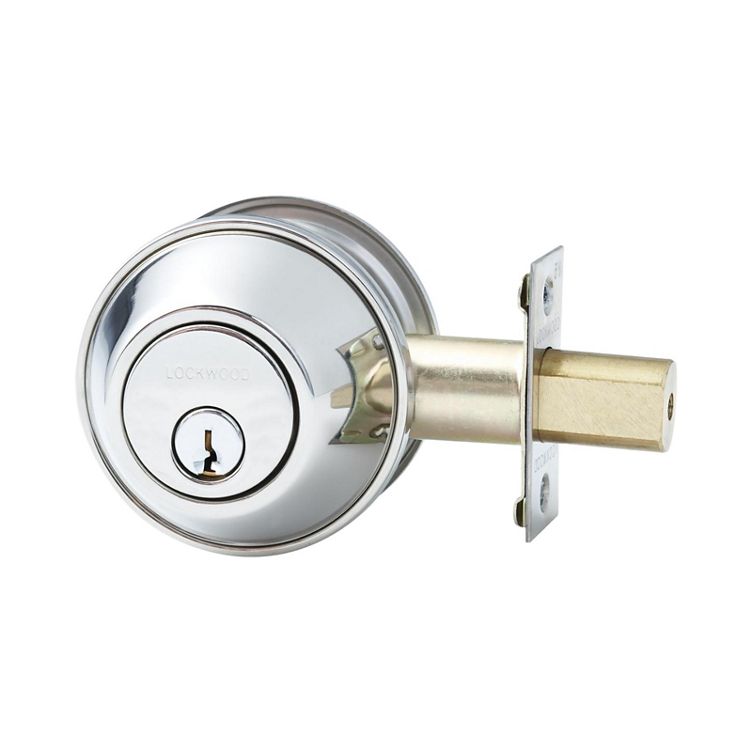

Lockwood Symmetry 7107 Double Cylinder Deadbolt

General purpose double cylinder deadbolt recommended for use with Symmetry knob and lever locksets.

  • General purpose double cylinder deadbolt
  • Operated by key from both inside and outside
  • Suits left or right hand opening doors
  • Solid brass bolt with 25mm projection
  • Hardened insert in locking bolt

Cylinder

  • The one cylinder assembly solution “OneCyl®” has been designed for the Lockwood Symmetry Range, which grants the convenience of cylinder interchangeability
  • 5 pin Lockwood C4 brass
Find your local Lockwood stockist
613be-130426091429906

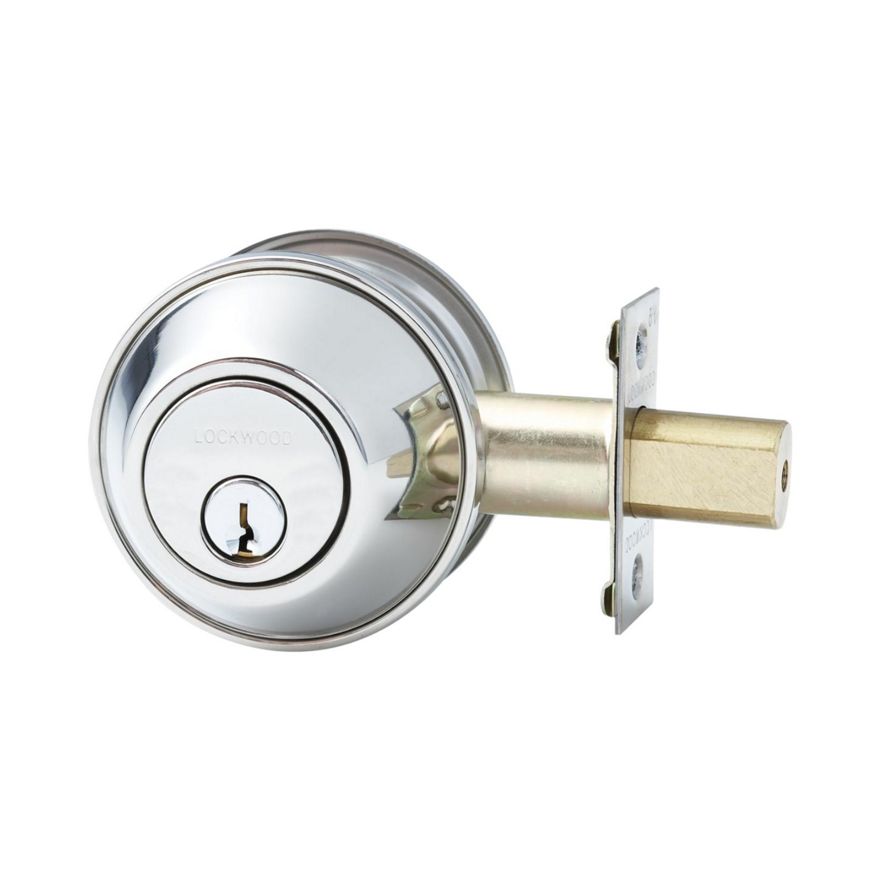

Lockwood Symmetry 7107 Double Cylinder Deadbolt

613be-130426091429906

Backset

Adjustable 60 – 70mm bolt.

Door Thickness

35* to 45mm.
* Requires spacer ring (included)

Keying

Standard Keying

  • Supplied individually keyed with three keys per lock
  • 78,000 key combinations
  • Key blank KB2015P

Restricted Special Keying

Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

Lockwood Keying Platforms - more information

Standard Finishes

  • Polished Stainless Steel PSS
  • Satin Stainless Steel SSS
  • Satin Chrome Brushed SC

Dimensions

  • Lockwood Deadbolts Catalogue(PDF, 3 MB)
DescriptionPart numberBarcode
Double Cylinder - Polished Stainless Steel7107PSS93-11847-74803-3
Double Cylinder - Satin Stainless Steel7107SSS93-11847-03306-1
DISPLAY PACK
Double Cylinder - Polished Stainless Steel7107PSSDP93-11847-71904-0
Double Cylinder - Satin Stainless Steel7107SSSDP93-11847-03206-4
