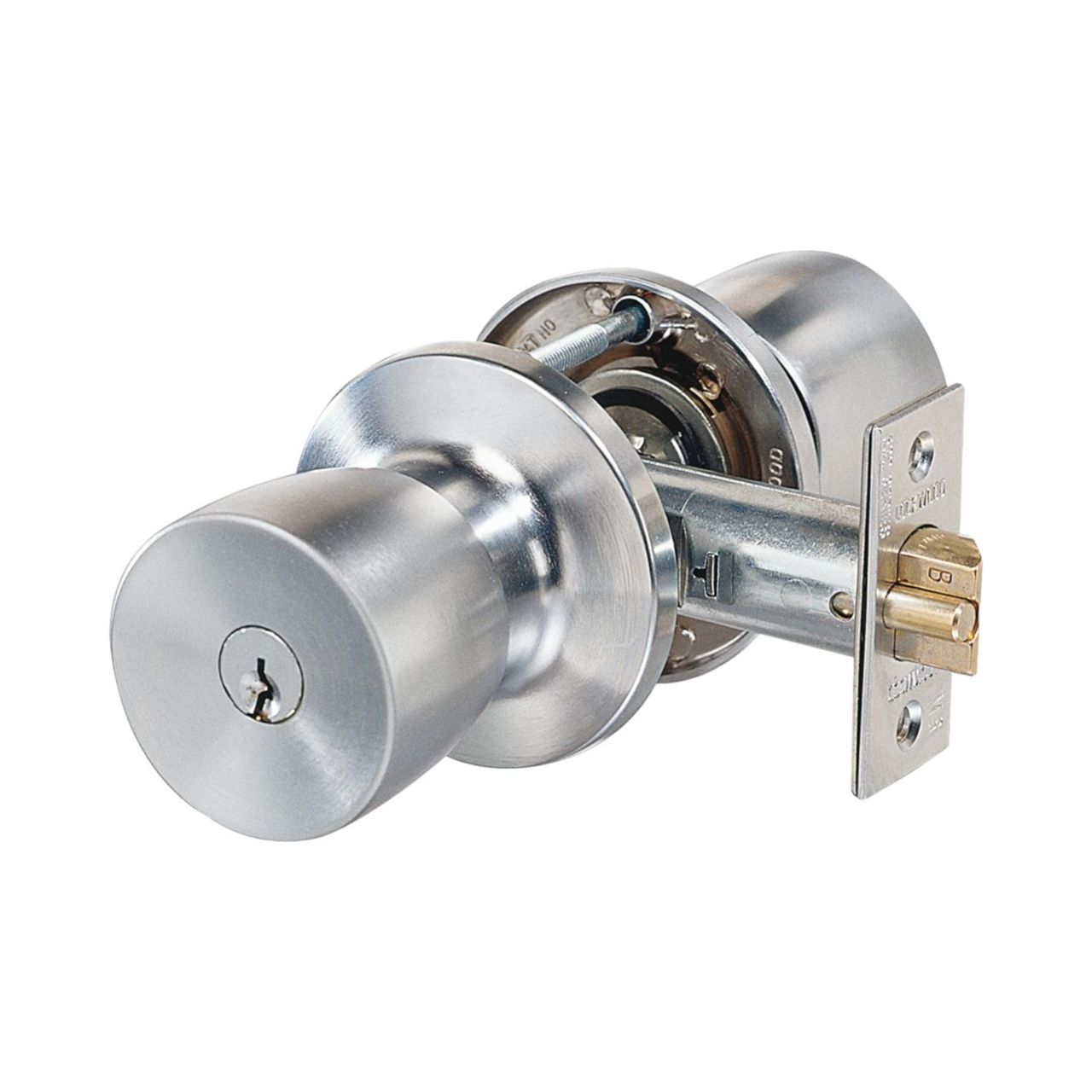

Lockwood 530 Series Key in Knob Lockset

Knob and Roses
High purity zinc alloy.

Door Thickness
32 to 48mm (all functions except 534 which suits doors 32 to 45mm).

Backset
60mm standard backset. 70mm and 127mm latches available separately.

Latch
13mm projection brass bolt.

Cylinder

• 5 pin tumbler mechanism
• Brass cylinder and brass barrel

Fire Rating
Lockwood 530 Series Locksets have been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.

Handing
Non-handed lockset.

Finishes
Satin Chrome Brushed SC

Keying

Standard Keying

• Supplied individually keyed with two keys per lock
• 78,000 key combinations
• Key blank KB2015P

Restricted Special Keying

Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

Lockwood Keying Platforms - more information

Dimensions
