Lockwood 930 and 950 Series Key in Lever Locksets
The Lockwood 930 and 950 Series Key in Lever Locksets are produced from high purity zinc alloy and available in a comprehensive range of functions and attractive finishes.
Features of the 930 and 950 Series Key in Lever Locksets
- Brass bolt with 13mm projection
- A brass rose is supplied to conceal inside fixing screws
- 70mm standard backset. 60mm backset also available
- Can be keyed alike, master keyed, grand master keyed, maison keyed or construction keyed
- Successfully tested up to 2 hours (depending on the type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1-2005, Part1: Fire Resistant Doorsets

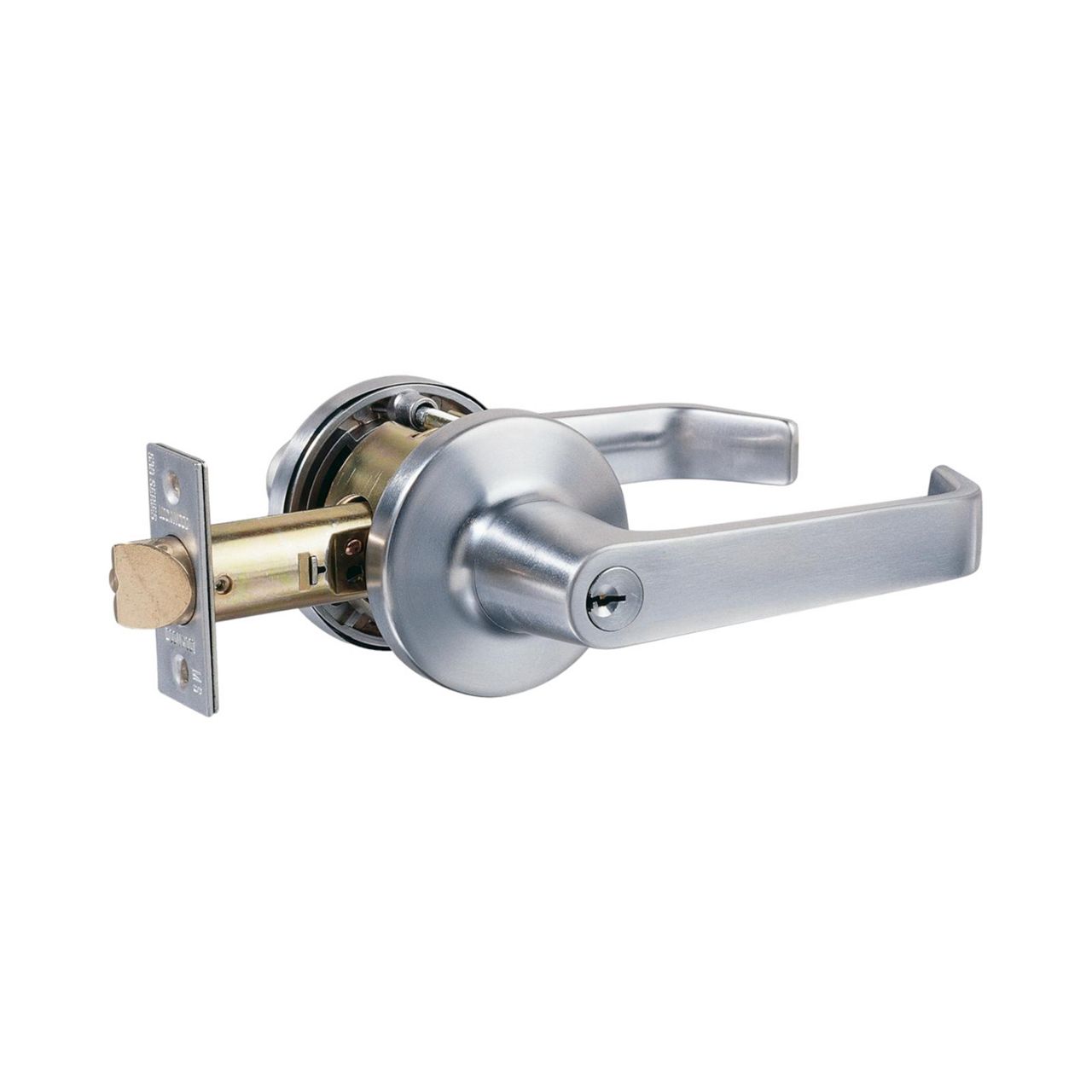

Lockwood 930 Series Key in Lever Lockset
Levers and Roses
High purity zinc alloy. A rose cover is supplied to conceal internal fixing screws.Door Thickness
32 to 45mm (all functions except 934 and 954 which suit doors 35 to 41mm).Backset
70mm standard backset. 60mm and 127mm latches available separatelyLatch
13mm projection.Cylinder
- 5 pin tumbler mechanism
- Brass cylinder and brass barrel
Handing
Field adjustable handing.Finishes
Satin Chrome Brushed SCFire Rating
Lockwood Key in Lever Locksets have been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905 Part 1: Fire Resistant Doorsets.Keying
Standard Keying
- Supplied individually keyed with two keys per lock
- 78,000 key combinations
- Key blank KB2015P
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
Lockwood Keying Platforms - more information
Dimensions
930 Series

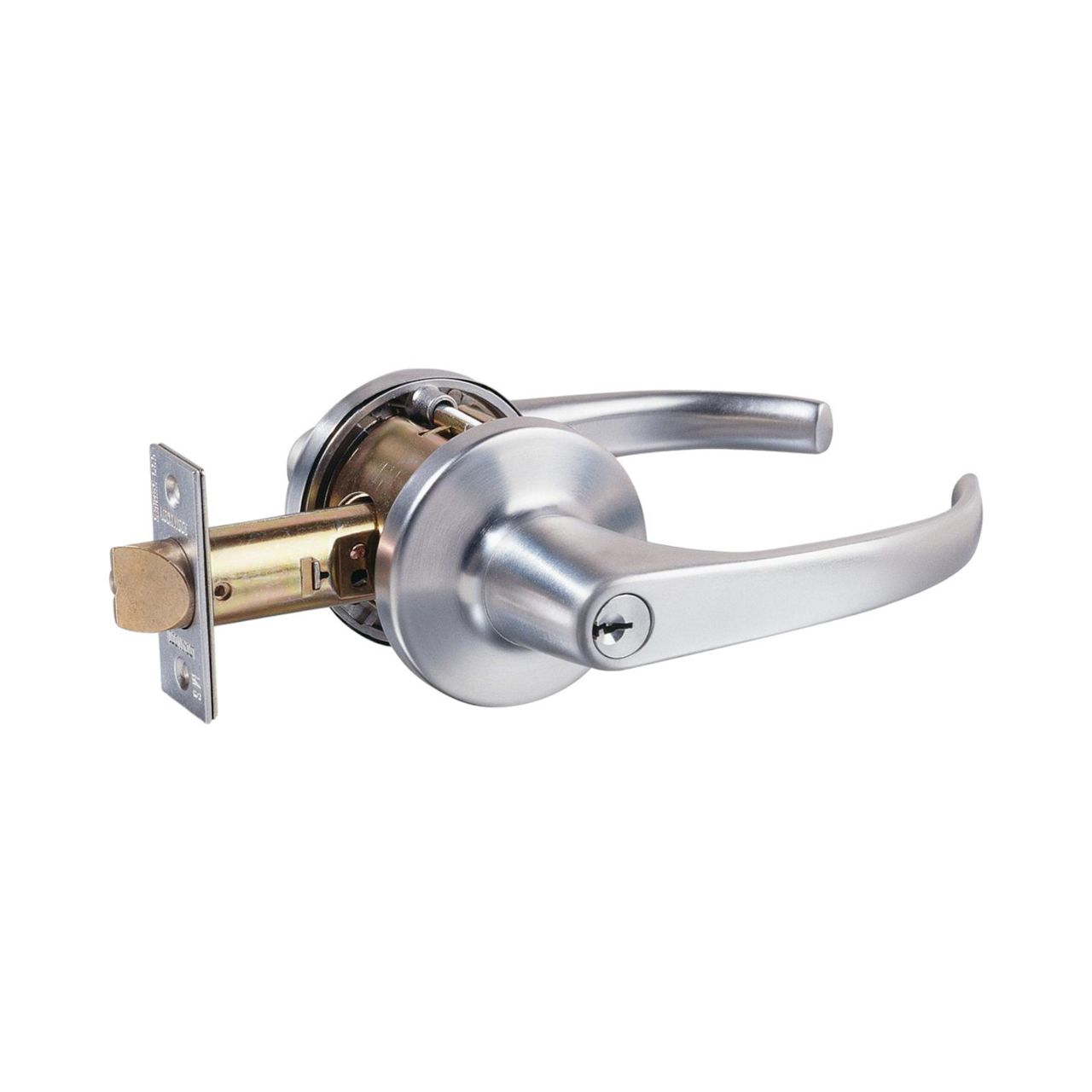

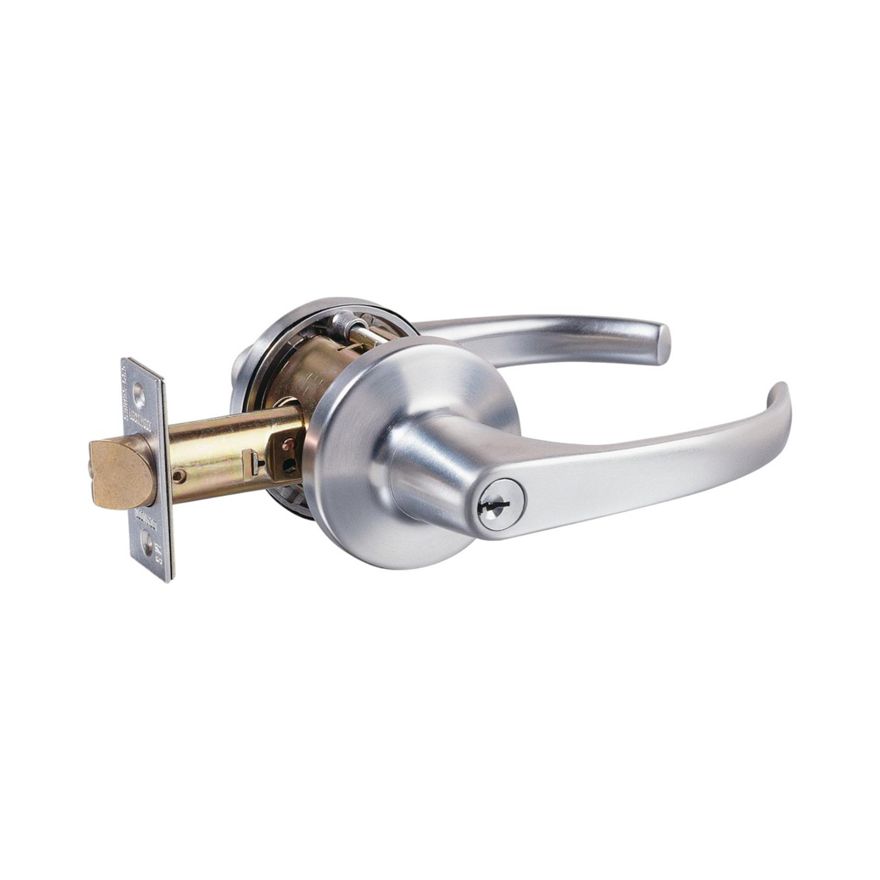

950 Series
Trade Pack
Exterior Escape Lockset
Description Part Number Barcode 929 - Deadlatch 70mm Backset 929SC 93-11847-18662-0 949 - Deadlatch 70mm Backset 949SC 93-11847-18710-8 Exterior Lockset
Description Part Number Barcode 930 - Deadlatch 70mm Backset 930SC 93-11847-18668-2 950 - Deadlatch 70mm Backset 950SC 93-11847-18716-0 Passage Set
Description Part Number Barcode 931 - Plainlatch 70mm Backset 931SC 93-11847-18674-3 951 - Plainlatch 70mm Backset 951SC 93-11847-18722-1 Privacy Set
Description Part Number Barcode 932 - Plainlatch 70mm Backset 932SC 93-11847-18680-4 952 - Plainlatch 70mm Backset 952SC 93-11847-18728-3 Glass Door Lockset
Description Part Number Barcode 934 - Deadlatch 70mm Backset 934SC 93-11847-18692-7 954 - Deadlatch 70mm Backset 954SC 93-11847-18740-5 Escape Lockset
Description Part Number Barcode 936 - Deadlatch 70mm Backset 936SC 93-11847-18698-9 956 - Deadlatch 70mm Backset 956SC 93-11847-18746-7 Storeroom Escape Lockset
Description Part Number Barcode 938 - Deadlatch 70mm Backset 938SC 93-11847-18704-7 958 - Deadlatch 70mm Backset 958SC 93-11847-18752-8 Note: For additional options in the 930 & 950 series product range, please refer to the commercial price list or contact a customer service representative on 1300 lock up.
Accessories
Long- Lipped Strike
Description Part Number Satin Chrome Brushed 530-153SC 530 Rebated Conversion Kit
Description Part Number Satin Chrome Brushed 530-9SC Tubular Latches
Description Part Number Barcode Plainlatch - 60mm Backset 531-122SC 93-11847-46612-8 Deadlatch - 60mm Backset 530-12SC 93-11847-46374-5 Plainlatch - 70mm Backset 531-222SC 93-11847-46009-6 Deadlatch - 70mm Backset 530-222SC 93-11847-46477-3 127mm Backset, SC 530-225SC 93-11847-46315-8
