SMARTair™ Cabinet Locks

Function

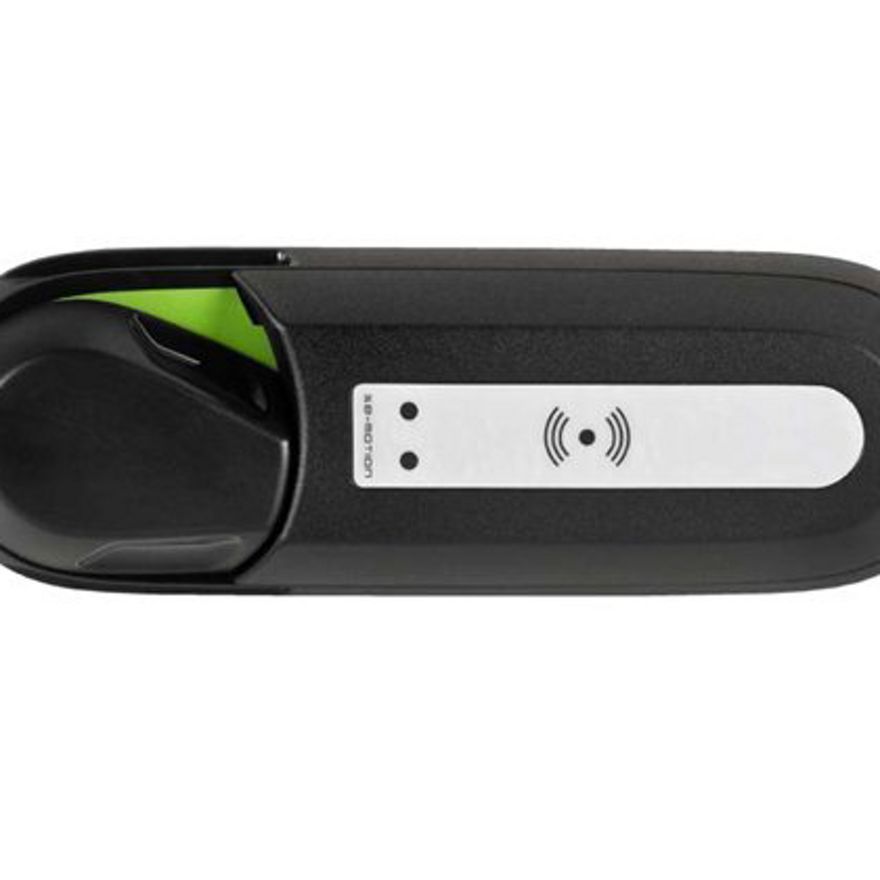

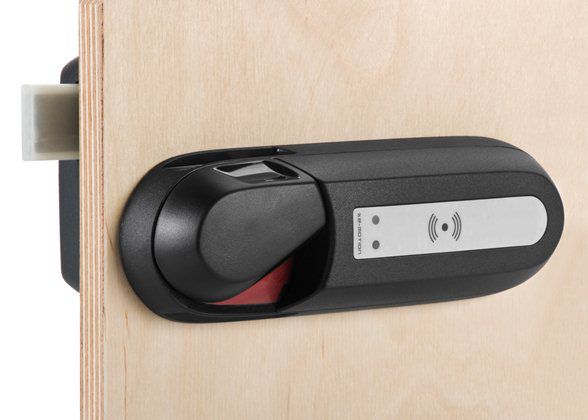

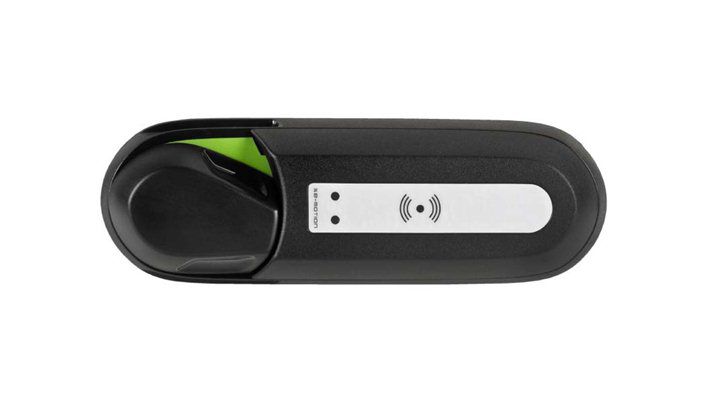

E-Motion is an electronic lock for lockers which may be integrated into the SMARTair system.

Features
Simple operation
System management through easy-to-use software
2 operation modes
High traffic:

• All lockers are available to all users. Any user can select a free locker and lock it by presenting his/her card.
• While the locker is locked, other users cannot open it, and the user cannot lock another locker.
• Once the user has opened the locker, it is available to other users again.

User assigned:
Through the E-Motion or SMARTair software, a specific locker can be assigned to one or more users.
This mode of operation supports various access control features: authorizations, time schedules, daylight savings time and holidays, cancellation and replacement of lost tags, audit trail, temporary blockage, etc.
Electronic features
Reader module:

• 13.56 MHz, MIFARE® RFID technology
• ISO 14443A
• Contact-less cards/tags (MIFARE Classic 1K, 4K and ULTRALIGHT)
• Reading range: 10mm with standard credentials
• LED indications (access authorized, access denied, low battery, etc.)
• iClass

Control Unit:

• Non-volatile memory
• Up to 1500 users
• Up to 1000 events recorded in audit trail
• Real-time clock and calendar

Battery module:

• Type: 3 x LR03 AAA 1.5V alkaline batteries
• Estimated duration: 20,000 operations or 3 years
• Changing the batteries is easy and simple; no need to disassemble the lock

Specifications
Temperature range (external side): from -20°C to 70°C
85% humidity without condensation
Fire certificate: 30', 60' and 90' UNFEN 1634:2000
IP55
Dimensions
Door width (3 models): 2-12mm; 12-15mm; 15-25mm
'Long' or 'Short' footprint
