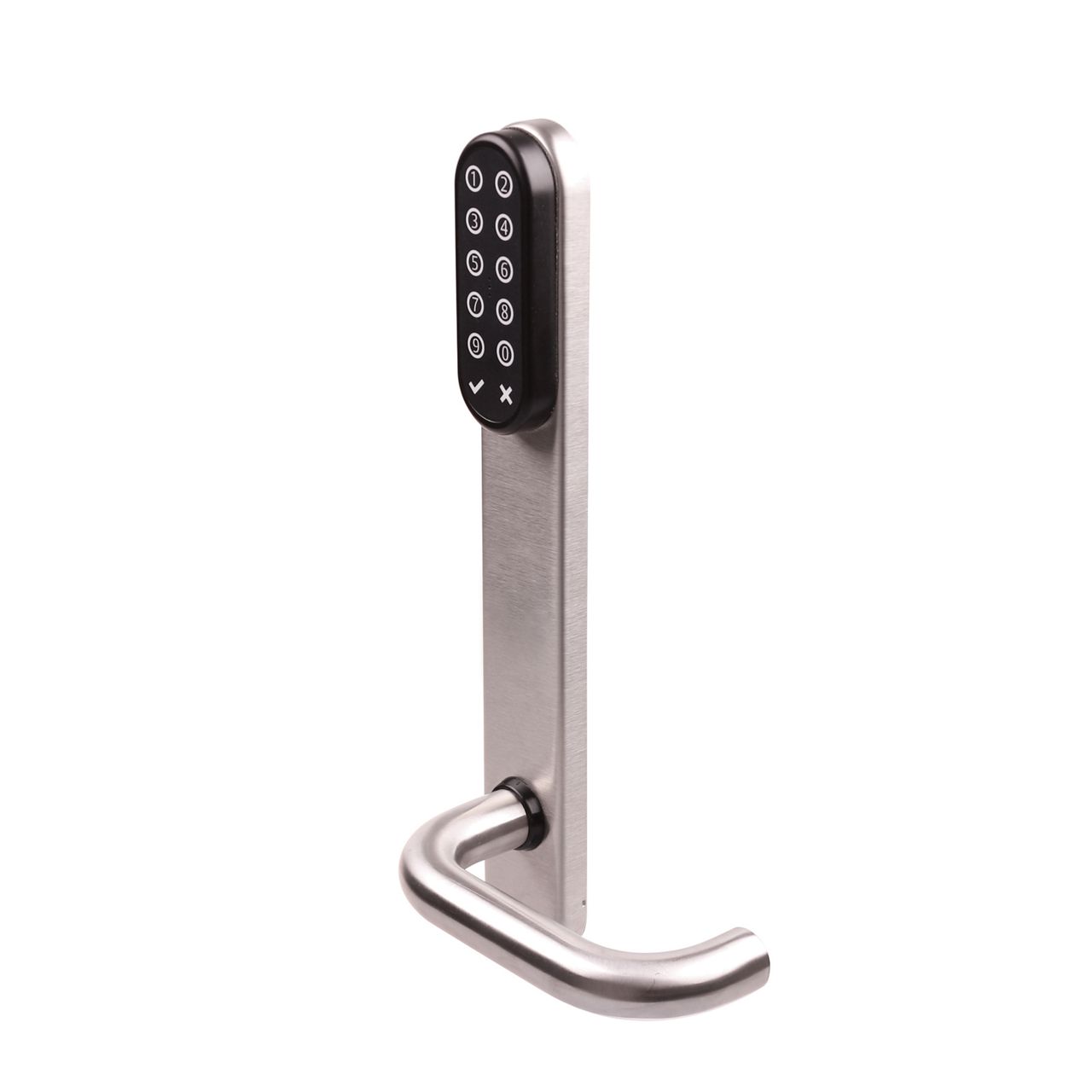

Keypad + RFID Escutcheons

The SMARTair™ Keypad Escutcheon is the ideal solution for doors that require elevated access control and security through multiple authentication. In addition to its high security mode, it can also operate as a simple keypad to maximise convenience and remove the need to have a credential to open a door. As a wire-free, battery-powered device, the Keypad Escutcheon is just as easy to install and operate as the rest of the SMARTair™ solution.

Mechanical features

• Designed on the same platform as the standard Escutcheon to simplify installation and allow retro fit if required.
• Models are available with, and without, key override capability, as well as being suitable for standard and narrow backset lock bodies.

Electronic features

Reader/Keypad module:

• 12 button Piezo PIN pad has no moving parts so nothing to wear out.
• 13.56 MHz, MIFARE® DESFire technology
• Contact-less cards/tags
• RFID distance: 10mm with standard cards
• Programming device connection located on the front fascia
• Indication light: Red, green and Blue LED lights up the whole keypad

Control Unit:

• Non-volatile memory
• Programmable in 3 modes: Normal mode - 1,500 users and 600 audit trail entries, Extended mode - 1,000 users and 1,000 audit trail entries, High traffic - All users of the installation have access and 1,000 audit trail entries, Real-time clock and calendar - 14 time profiles

RF module:

• PC Server sends updates from the hub to the control unit, and the lock sends the audit trail from the control unit to the hub
• Encrypted communication
• Distance between the RF module and the hub: 30m

Battery module:

• 4 x AAA Alkaline battery
• Estimated battery life: 70,000 cycles; 2 years in standby
• Simple battery change; no dismounting required

Environmental

• 85% humidity without condensation
• Temperature range: 0°C to 70°C
• IP55 Rating optional
