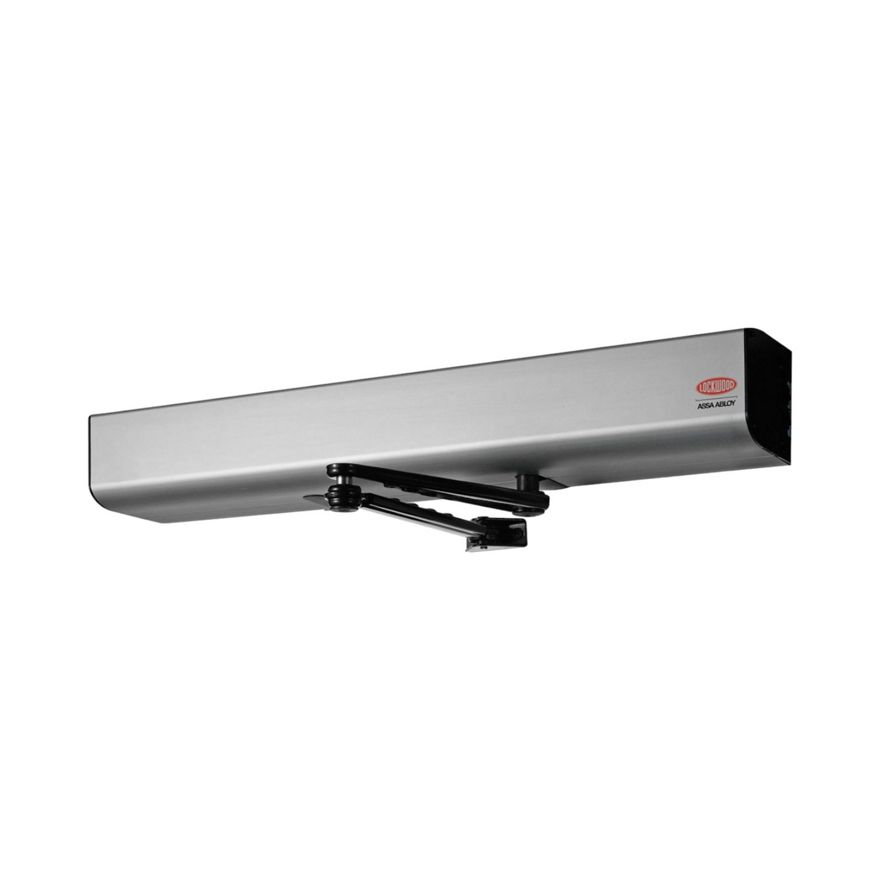

Lockwood 8002 Series Swing Door Operator

The Lockwood Swing Door Operator is an electro-hydraulic operator designed for a wide variety of applications. It is suitable for almost all types of external and internal swing doors and has been developed to cope with tough conditions.

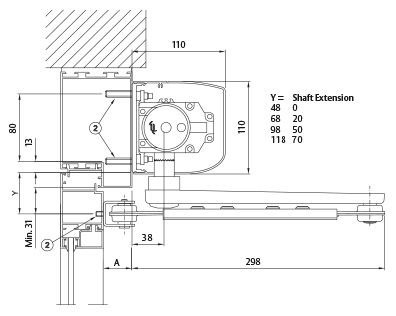

The operator can be mounted on either side of the door for pull or push action and is suitable for single or double doors fitted with butt hinges or pivots. With remote, push button and motion sensor options, the 8002 provides a full range of electronic door opening solutions.

Features

• Opens with motor and closes with spring
• Opening and closing speeds can be varied individually
• Door opening angle adjustable up to 120°
• A range of manual and automatic activation units available
• Impulse and presence detection sensors available
• Non Handed
• Push or pull opening solutions

Applications

• Disability Entrance solutions
• Hospital and Health Centre Applications
• Access Controlled Locking
• In Swinging or Out Swinging Doors

Meets requirements for door weights/widths stated in the:

• Controlled door closing, EN 1154 size 3 - 6
• Coordination unit for rebated doors, EN 1158
• Door closer with opening device (Swing door operator), DIN 18263-4 AU Size 3-6
• ANSI/BHMA A156.10, A156.19
• UL325/CUL325
• SITAC 0710/97
