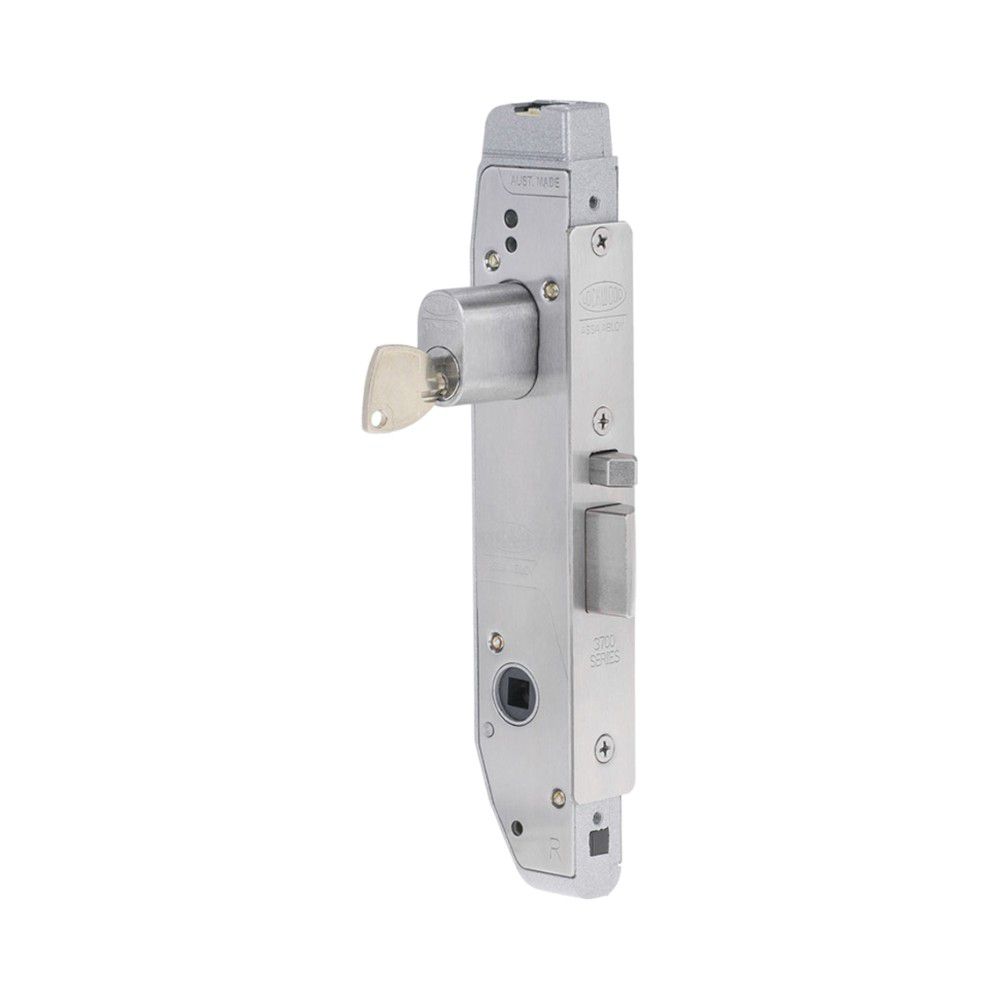

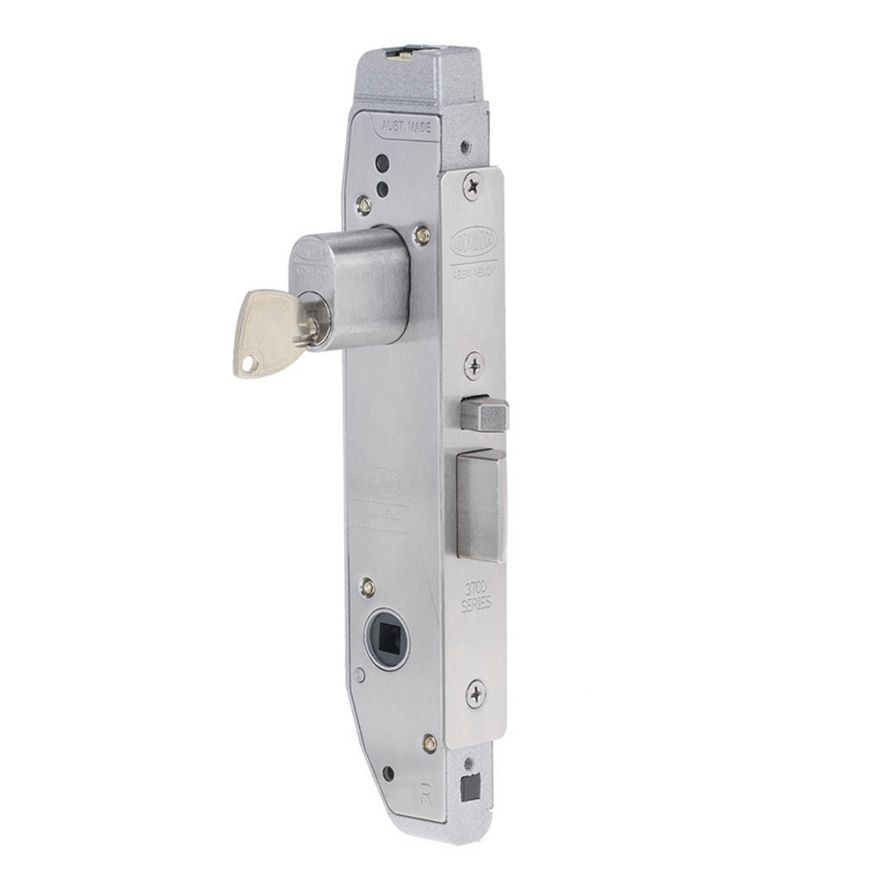

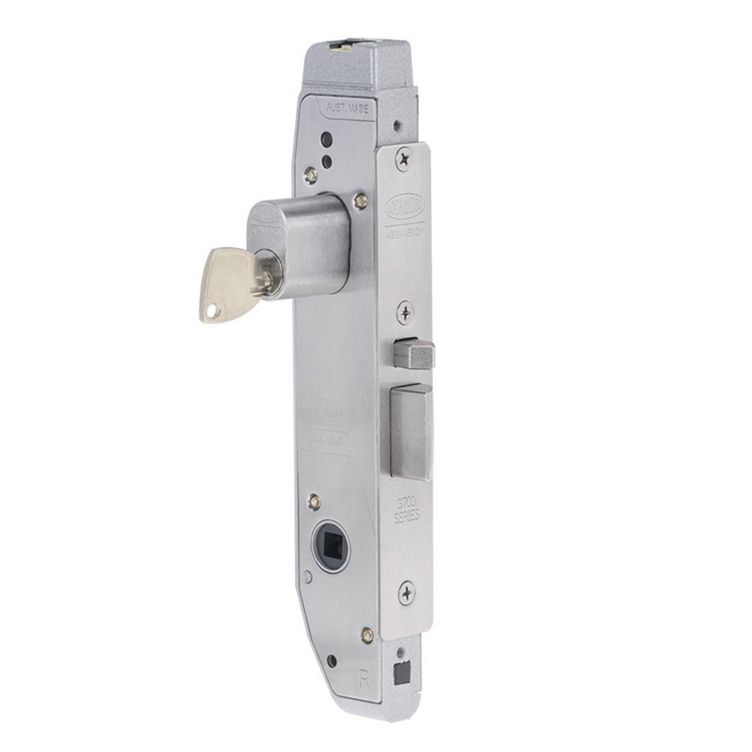

Furniture
Compatible with Lockwood 4800 and 5800 Series Furniture. Range includes functions with lens to allow LED indication.
Lockwood Plate Door Handles – More information
Voltage
9 – 28VDC
Current
300mA MAX (20mA continuous if LEDs are activated)
Monitoring
Key override (NC), Deadlatch (NC), Door Position (NC), REX (NO / NC) and Lock Status (NC) – all 30VDC 50mA MAX
Environment
-15 to 60ºC
Case / Cover
High purity zinc alloy material cases with stainless steel chassis plates
Backset
23mm, 25.4mm, 30mm, 38mm
Cabling
Supplied with 3.6m cable with 12 pin connector and water deflecting boot
Recommended cabling
8AWG (0.82mm²) cable runs up to 30m
Latch Bolts
Latch bolts are made with stainless steel, 15mm in size
Deadlatching is achieved by an auxiliary stainless steel latch bolt
Reversible for both left and right hand doors, opening in or opening out whilst lock is in door
Separate auxiliary bolt moves into lock case simultaneously with latch bolt
Radius bolt provides greater deadlatch throw and smoother closing action
Cylinder Retaining Pin
Hard-drawn spring steel wire, corrosion protected.
Door Thickness
Metal doors: 35 to 50mm
Timber doors: 32 to 50mm
Specify Selector® 3782-TFKIT for timber door fixing kit to convert an aluminium fix lock to timber door fixing. The timber door fixing kit includes a long faceplate, strike and screws to suit a timber door and jamb
Door Clearance
To ensure correct functioning of the deadlatching mechanism and security for all locks, the clearance between the door and the frame should be 3mm.
Security
All Selector® 3782EL Series Cylinder Mortice Locks conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008). Conforms to Level S8 (Physical Security) when fitted with door furniture and anti-drill cylinder.
Durability
All Selector® 3782EL Series Cylinder Mortice Locks conform with Level D8 (Durability) Australian Lock Standard (AS4145.2-2008).
Anti-Corrosion
All Selector® 3782EL Series Cylinder Mortice Locks conform with Level C6 (168 hours) Australian Standard (AS4145.2-2008).
Cylinder
Requires standard Lockwood oval shaped brass cylinders and brass barrels. Lockwood cylinders include bump resistant five pin tumbler mechanism.
Keying
- Restricted Special Keying – Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication and can also include specially designed keying systems such as master key systems. This allows for different levels of mechanical access control.
Standard Finishes
Stainless Steel SS
Standards and Compliance
RCM Compliant
Extended Cylinders
Modular Cylinder Extensions are available for thicker doors.
Rebate
Rebate kits to suit 13mm standard rebate are available. Only suitable for use with 30mm and 38mm backset locks.

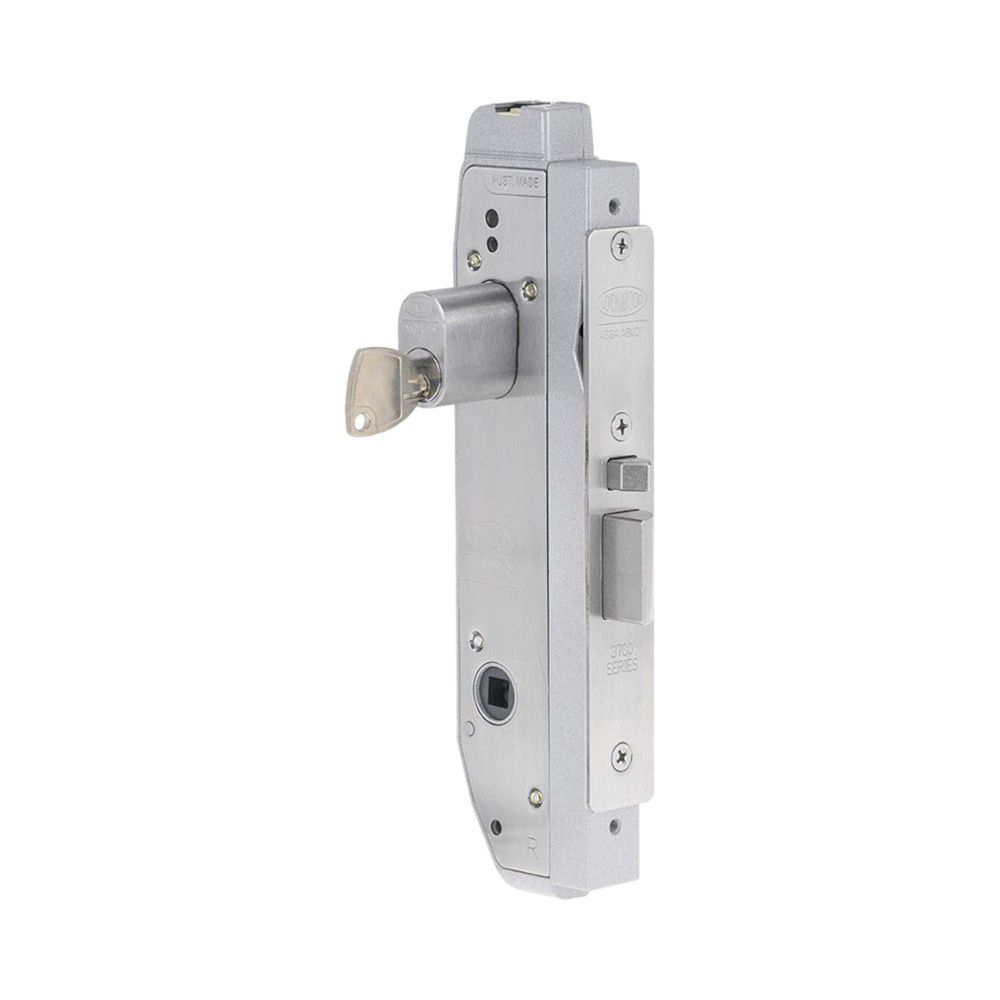

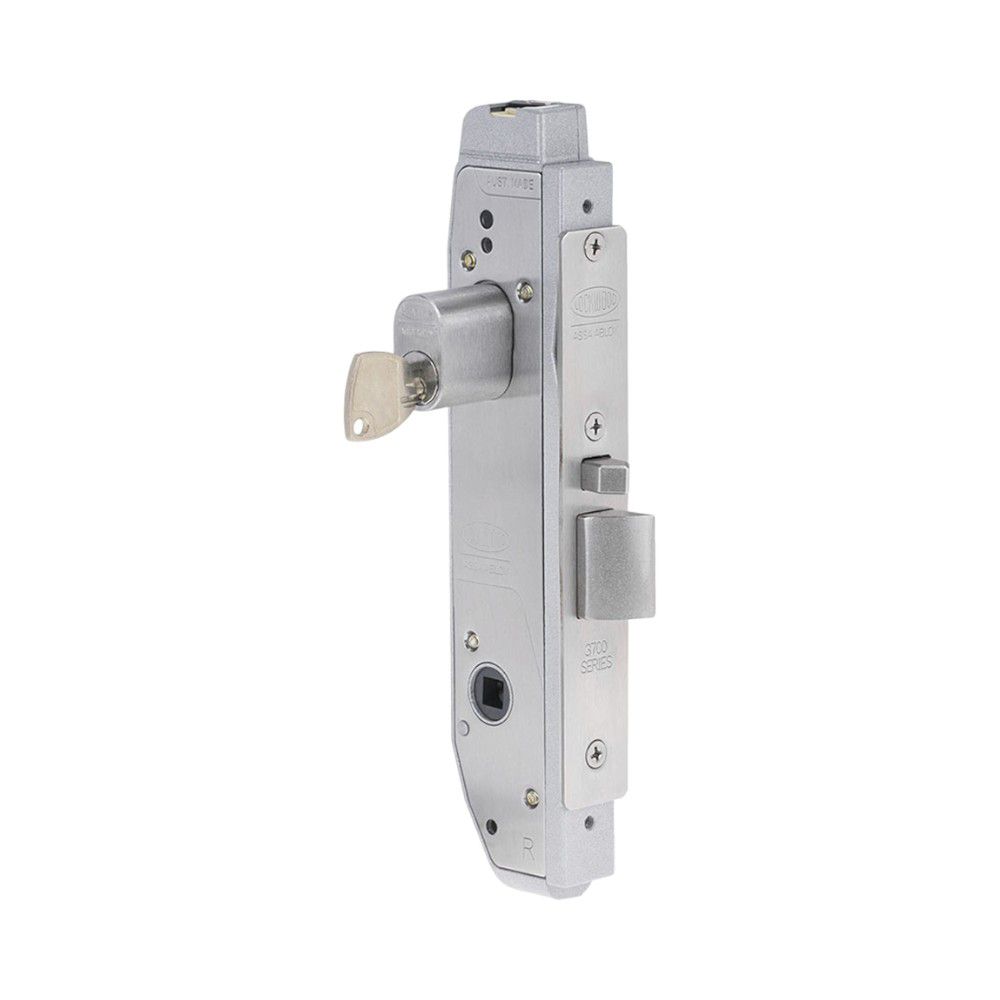

Dimensions
| Part Number | 3782EL | 4782EL | 5782EL | 6782EL |
| Dimension X | 23 | 25.4 | 30 | 38 |
| Dimension Y | 40 | 42.4 | 47 | 55 |
| Minimum Internal Depth of Door | 40 | 43 | 47 | 55 |
