Lockwood Hi-O Room Guard Locking System

The Room Guard Locking System is based on state of the art Hi-O technology platform developed by ASSA ABLOY.

Bringing a new dimension to electronic locking systems as we know them today, the Hi-O platform has enabled this unique product offering that is designed for ease of use and simplified installation.

The system provides electronic lock control of multiple doors for any room requiring privacy by the occupants. The most common applications are shared bathrooms in hospitals and conference rooms with dual entries. The intelligence is embedded in the locking devices themselves, resulting in a plug and play system without the need for a door controller to lock and unlock the door; therefore extremely easy to install and cost effective.

Features

• One touch privacy
• All components supplied in one neat kit
• Plug and Play connectivity
• No requirement for external door controller or EAC system
• Fast, accurate and cost effective installation

Applications

• Shared bathrooms
• Conference rooms
• Laboratories

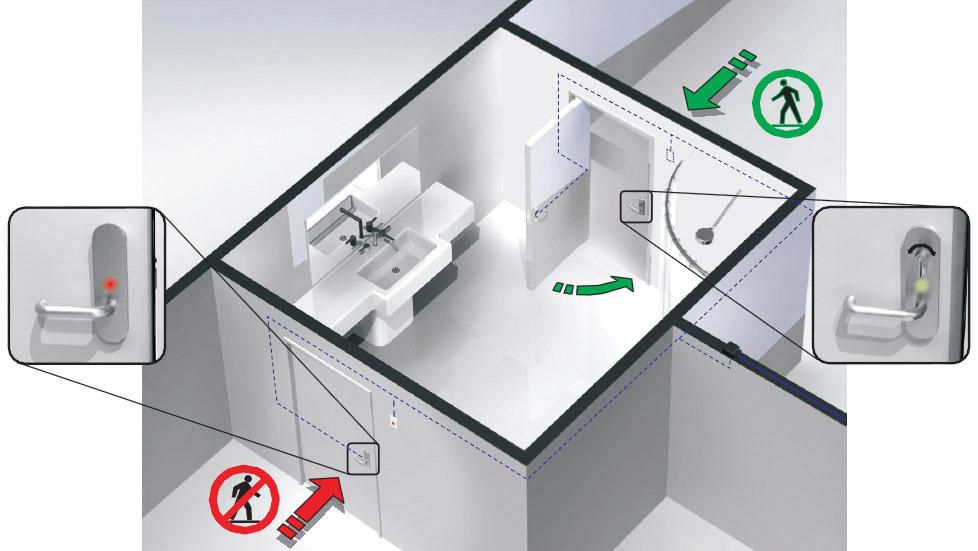

Function

Locking the door

• Enter either door and close door
• Activate internal turn knob
• Both doors automatically lock - outside
• External handles indicate red (locked)

To unlock/exit

• Activate internal lever on either door
• Both doors automatically unlock
• External handles indicate green (unlocked)

Note: In the event of an emergency, the doors may be unlocked externally via emergency override switches if fitted.

Standards and Compliance
Successfully fire rated up to 4hrs on fire door
Hour assemblies in accordance with AS1905.1.2007
RCM Compliant
