Lockwood AH130 Series Aluminium Hinges

The Lockwood AH130 Series Hinge range comprises of heavy duty fast fix hinges which can be used either on Aluminium or Timber doors.

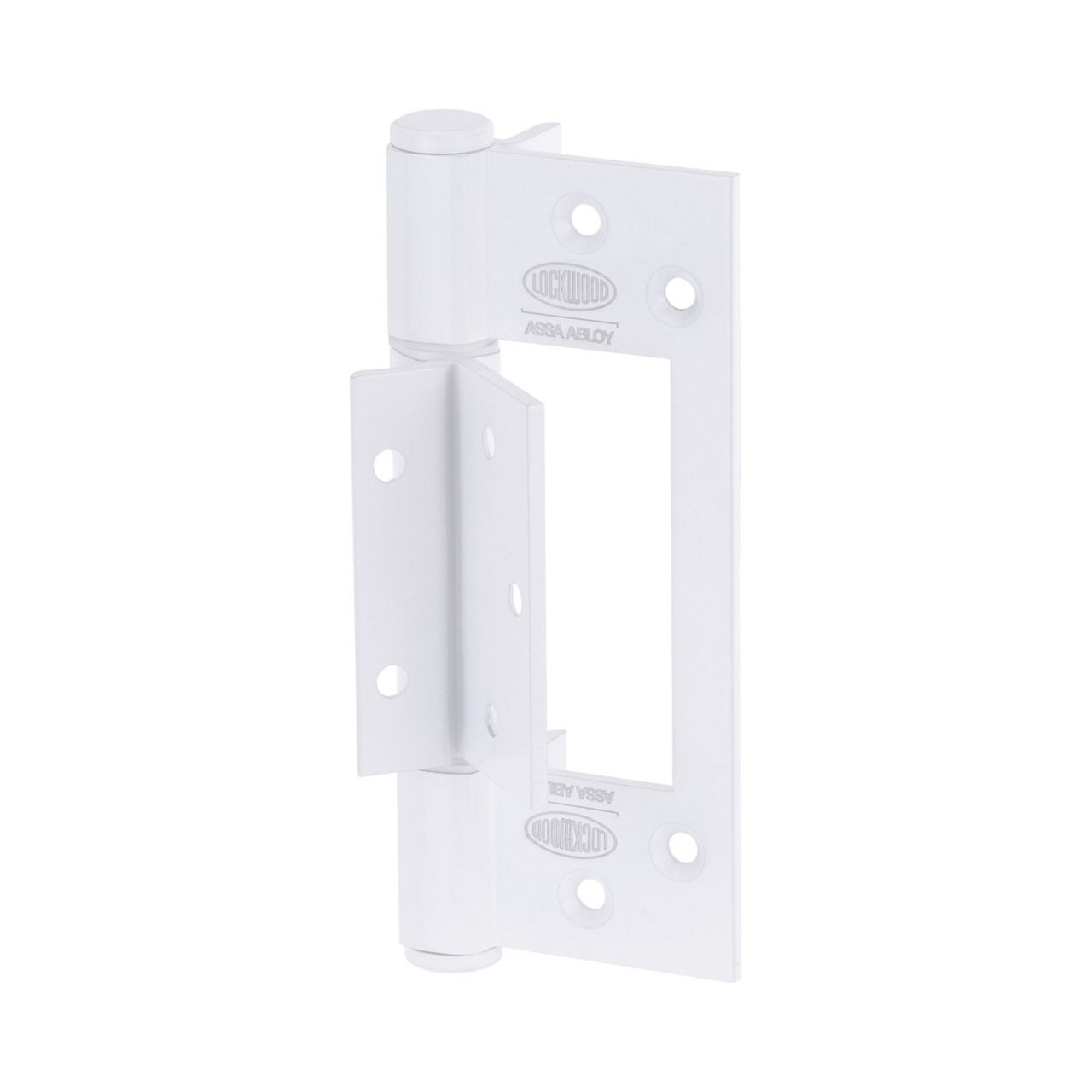

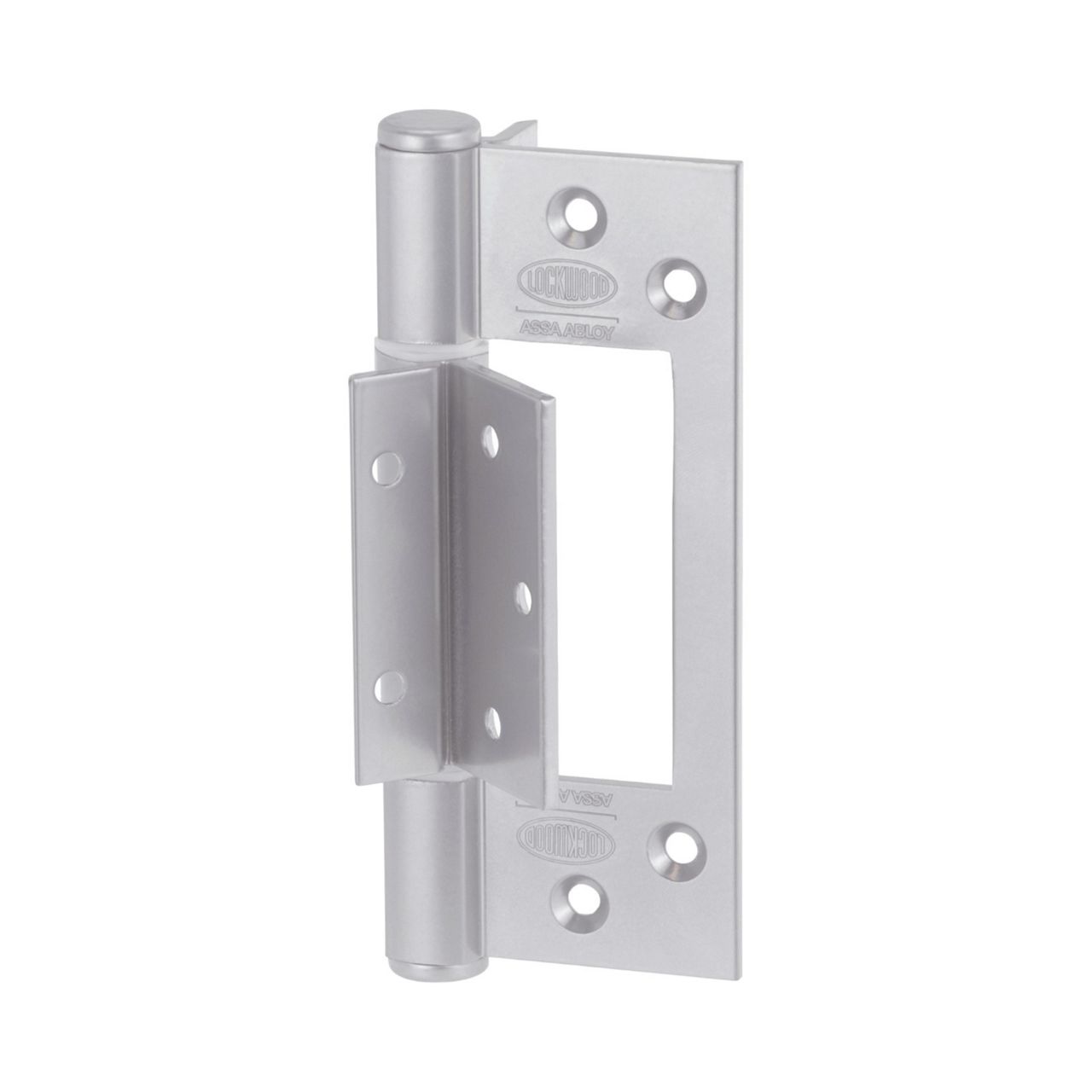

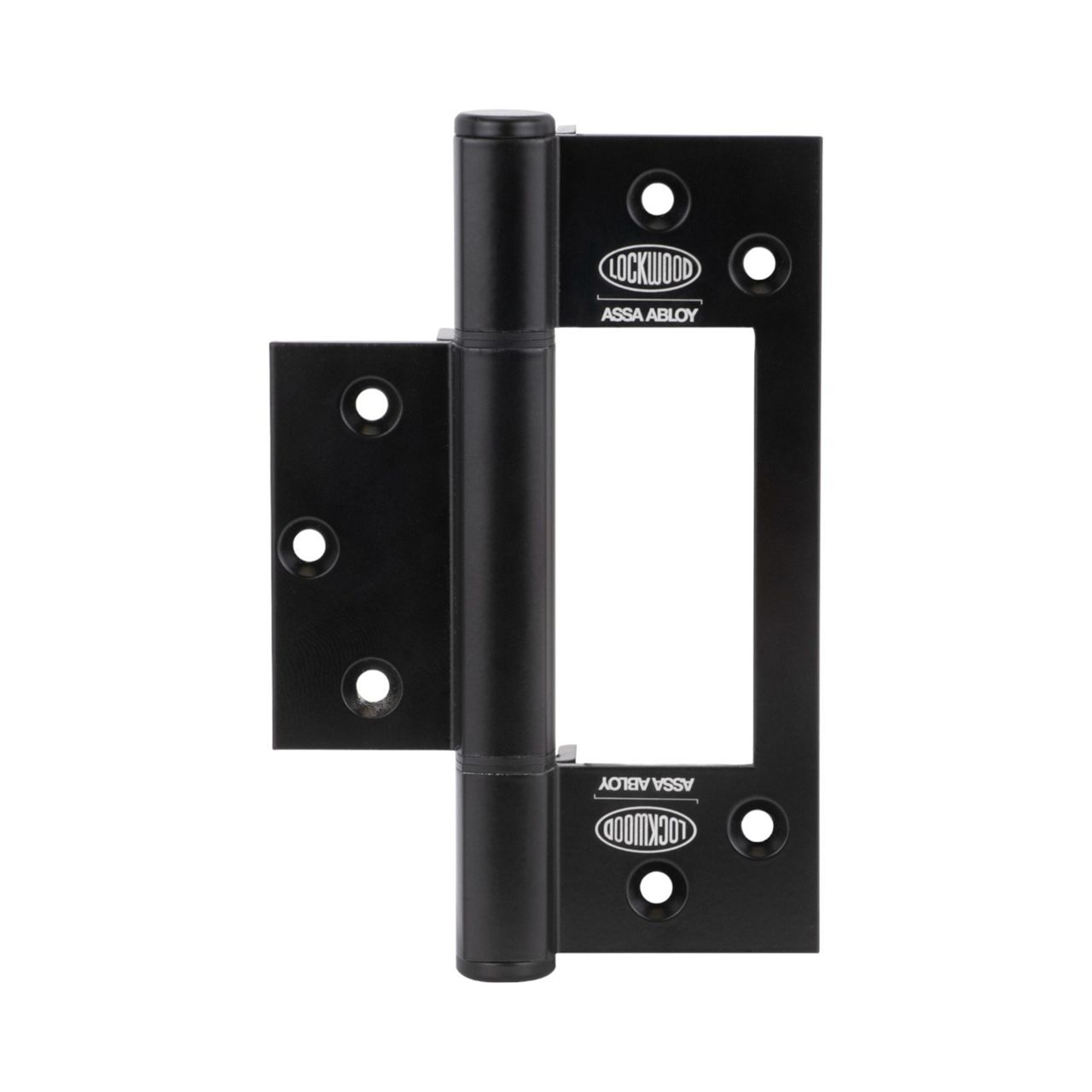

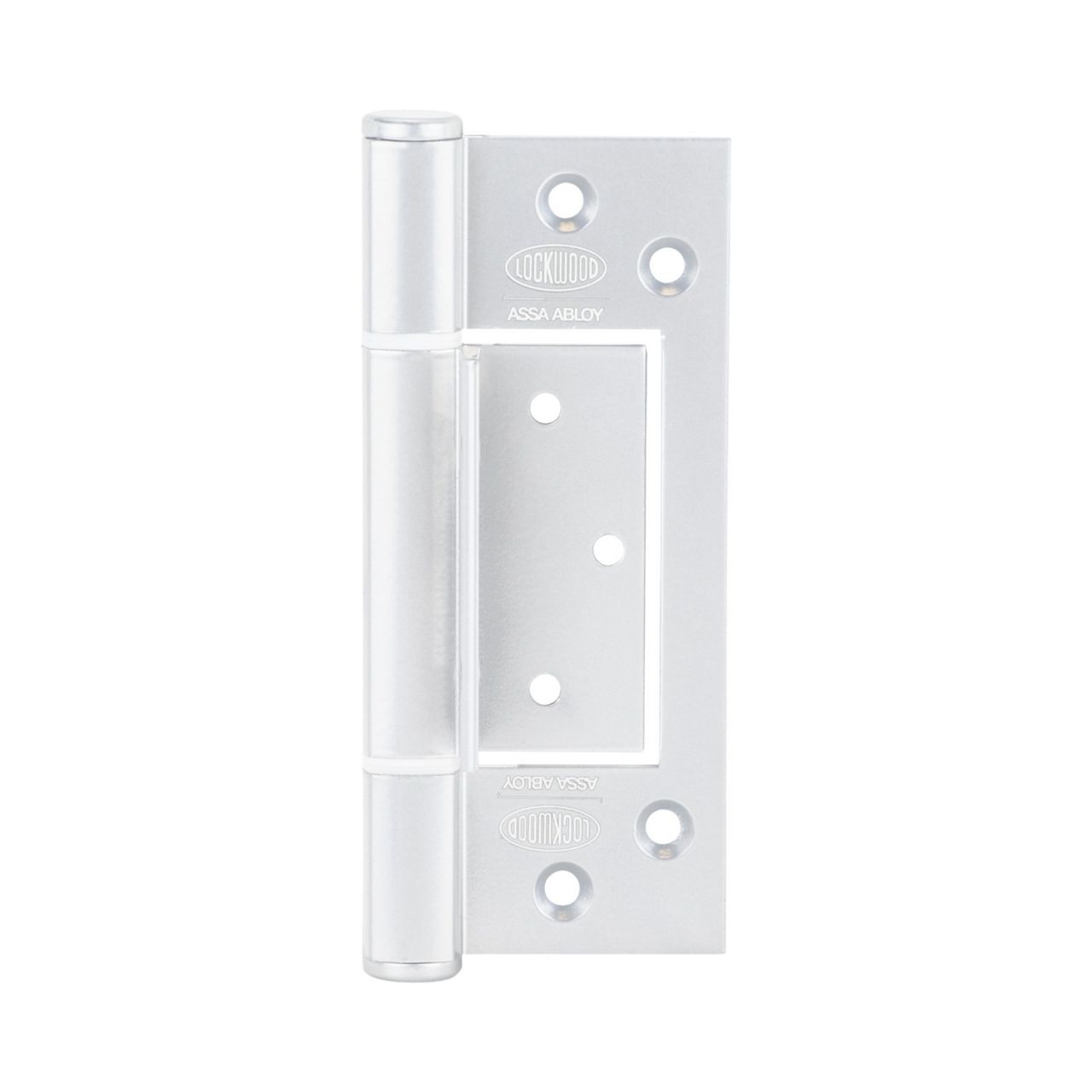

AH130 - Heavy Duty Fast Fix Hinge with face fix flanges to suit commercial aluminum door applications.

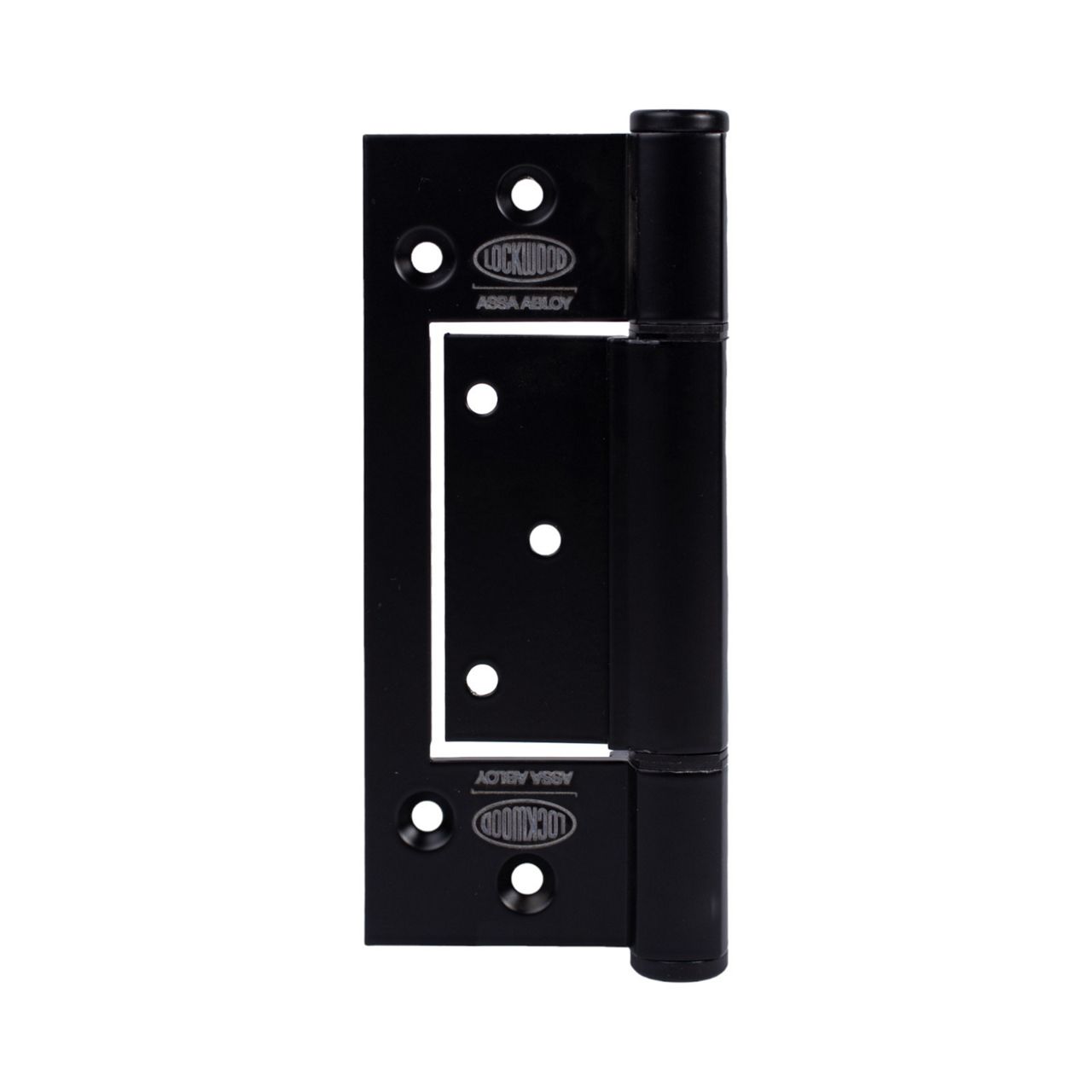

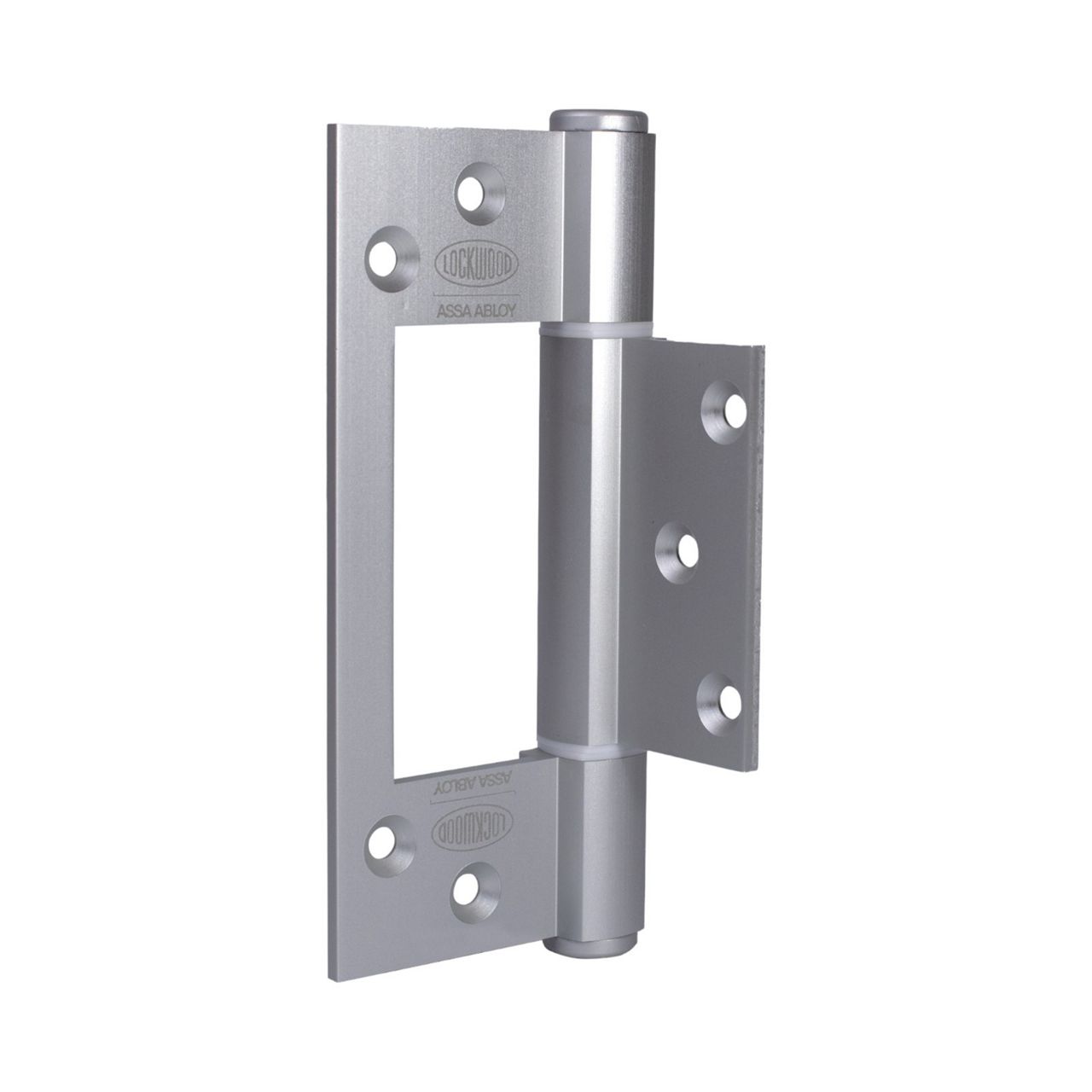

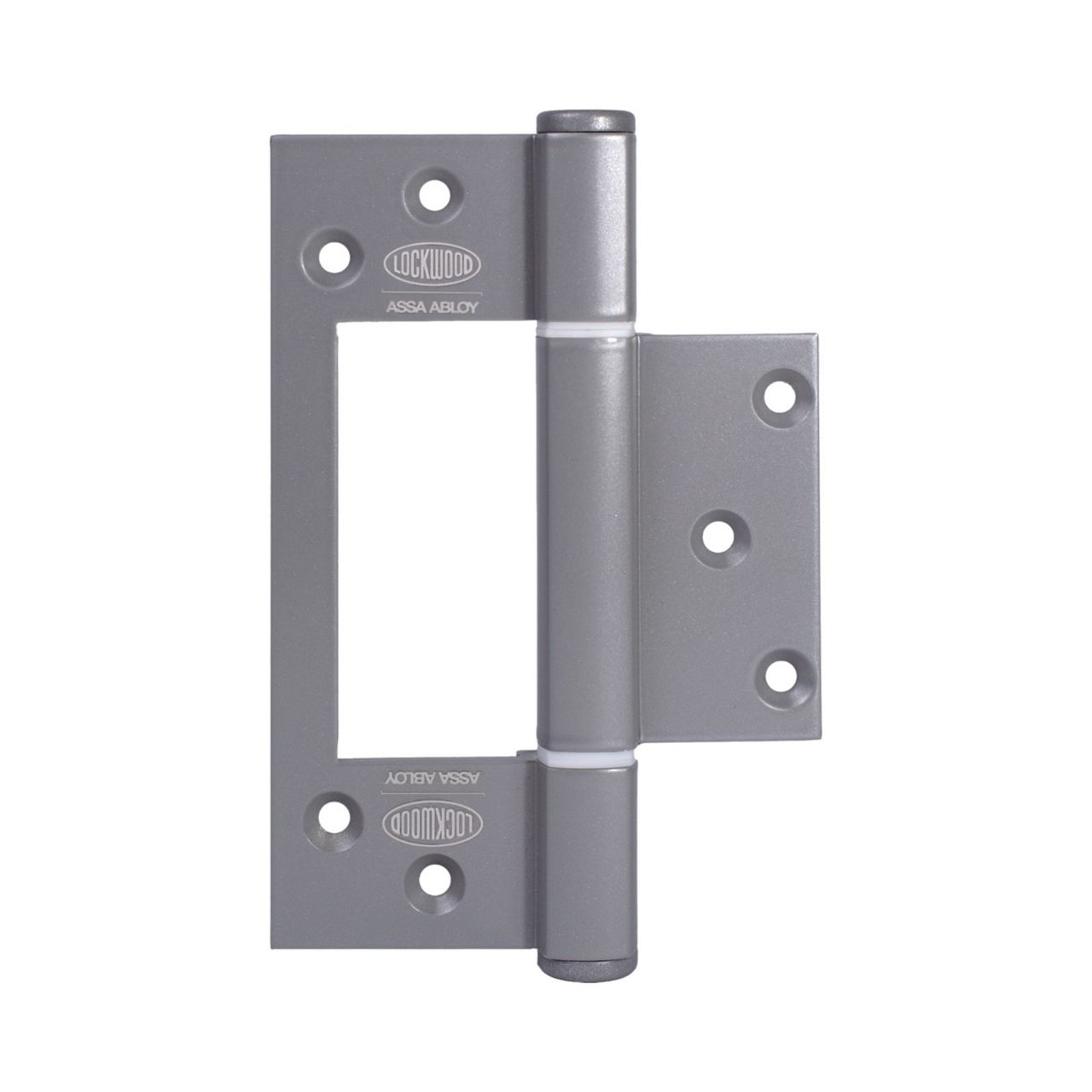

AH130T - Heavy Duty Fast Fix Hinge with integrated locater step to suit timber door/aluminum frame applications.

Installation Guide

AH130T

• Minimum door thickness 40mm
• Up to 2100 high x 900 wide x 80kg - 3 Hinges
• Up to 2400 high x 900 wide x 80kg-  4 Hinges

AH130

• Minimum door thickness 40mm
• Up to 2100 high x 900 wide x 100kg - 3 hinges
• Up to 2400 high x 900 wide x 100kg - 4 hinges

Fixing

AH130T

• Heavy duty bi-directional fixing
• Integrated locator step aids in alignment and installation
• Supplied with:
  7 of 10G x 12mm, 304SS undercut countersunk self tapping (AB) Phillip drive screws
  3 of 10G x 32mm, 304SS undercut countersunk  self tapping (AB) Phillip drive screws

AH130

• Heavy duty bi-directional fixing
• Face fix locator flange allows for faster installation
• Supplied with 11 of 10G x 12mm, 304SS undercut countersunk self tapping (AB) Phillip drive screw

Technical Specification

• Hinge: 6063-T6 alloy
• Hinge Pin: 6mm 304 grade Stainless Steel
• Nylon bushes
• Squareline heavy duty knuckles
• Interference pressed fit aluminium end caps
