• Furniture

    Compatible with most Lockwood rose and plate furniture including Brass Door Furniture, Robert Watson Series, Artefact Series II, Ovation Series and VSR Series.

    Lockwood Door Handles – More information

    Case and Faceplates

    • High purity zinc alloy material cases with stainless steel chassis plates. Stainless steel faceplates provided as standard
    • Brass faceplates available for alternative finishes

    Backset

    • 60mm standard backset
    • Extended backsets 89 and 127mm are available (Order 4772/5772 primary locks and configure accordingly.)

    Latch Bolts

    • Plainlatch only

    Door Thickness

    • 32 to 50mm
    • Components to facilitate use on thicker doors are available on application

    Aluminium Doors

    Specify Selector® 3774-AFKIT for aluminium door fixing kit to convert a timber fix lock to aluminium fixing. The aluminium door fixing kit comes with a 156mm by 25mm radius faceplate common to other aluminium door locks.

    Security

    All Selector® 3770 Series Cylinder Mortice Locks conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008). Conforms to Level S8 (Physical Security) when fitted with door furniture and anti-drill cylinder.

    Durability

    All Selector® 3770 Series Cylinder Mortice Locks conform with Level D8 (Durability) Australian Lock Standard (AS4145.2-2008).

    Fire Rating

    All Selector® 3770 Series Cylinder Mortice Locks have been successfully tested up to 4 hours (depending on type of doorsets) on fire door assemblies in accordance with Australian Standard AS 1905.1-2015, Part 1: Fire Resistant Doorsets.

    Anti-Corrosion

    All Selector® 3770 Series Cylinder Mortice Locks conform with Level C6 (168 hours) Australian Standard (AS4145.2-2008).

    Standard Finishes

    Stainless Steel SS

    Rebate

    Rebate kits to suit 13mm standard rebate are available.

    Dimensions

    Part Number 3774 4772 5772
    Dimension A 60 89 127
    Dimension B 88 117 155
  • DescriptionPart number

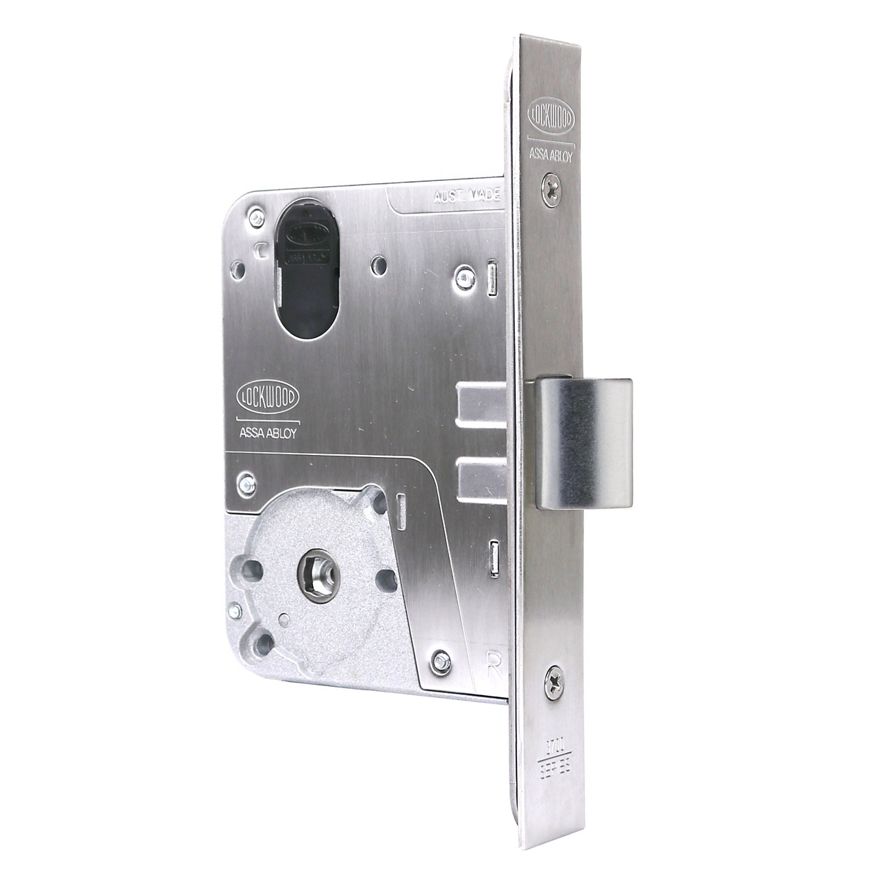

    LOCKWOOD SELECTOR 3774 MORTICE PASSAGE LATCH
    Primary Locks - 3774 Passage Latch Primary Lock 60mm Backset3774SS
    Primary Locks with Radius End Faceplate - 3774 Passage Latch Primary Lock Rad Faceplate 60mm Backset3774RSS
