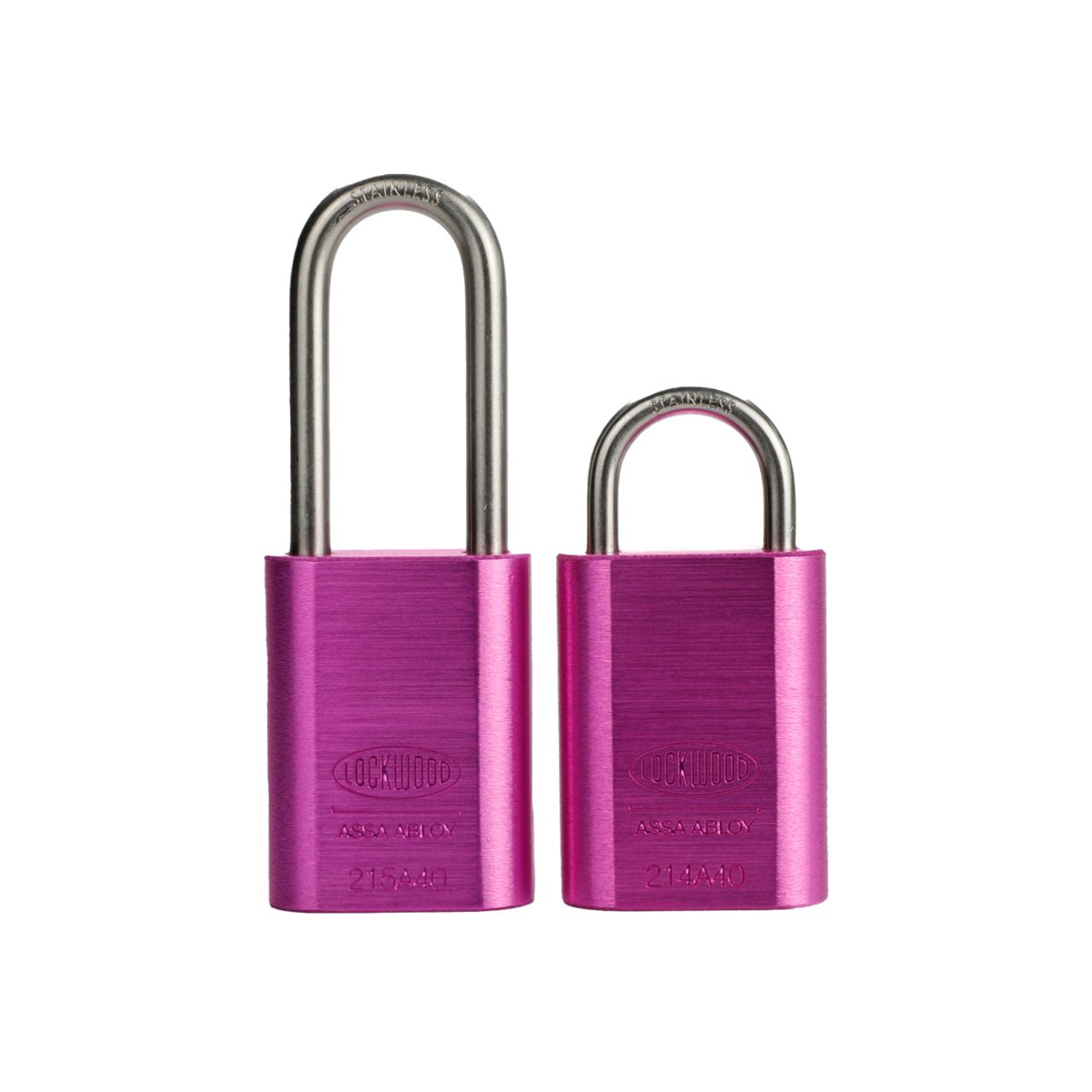

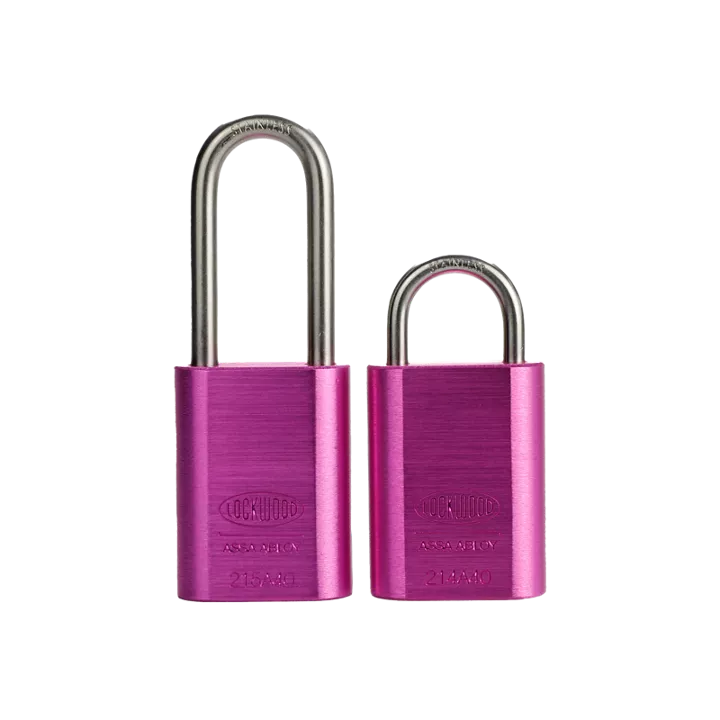

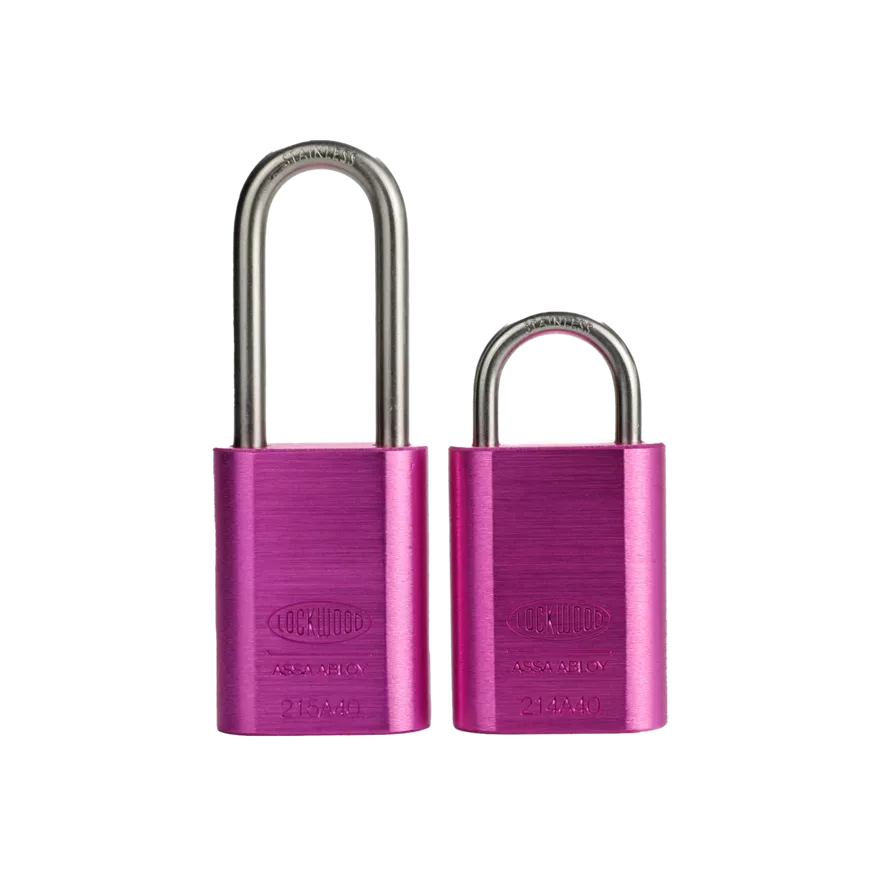

      Lockwood High Security 214/215 Series Aluminium Case Padlocks

      The Lockwood 214 and 215 Aluminium Series are a range of durable, rugged and lightweight 40mm aluminium case padlocks with full commercial grade special keying. These padlocks have been specifically designed to meet the requirements of commercial and industrial applications. Eight different coloured jackets are also available and can be custom marked to make lock identification quick and easy.

      Features and Specifications of the High Security 214 and 215 Series Aluminium Case Padlocks

      • Heavy duty, aluminium case extrusion
      • High corrosion resistant 5.0mm (214 model) or 6.4mm (215 model) stainless steel shackle
      • Self latching double ball locking
      • Extended shackle model
      • Can be converted from self latching to deadlocking (key retained) by simply relocating the cam plate pin in the cylinder assembly
      • Clearly identified jacket in 8 colours

      Cylinders

      334B top loaded cylinders are rekeyable in standard 5 pin with 6 pin capability (nickel silver keys with 6 pin padlocks).

      334B cylinders are preloaded with one length top pins and stainless steel pin springs using a Lockwood 570 barrel.

      Custom Marking

      Custom marking is available. Pricing and availability on application.

      Find your local Lockwood stockist
      Lockwood High Security 214/215 Series Aluminium Case Padlocks
      Lockwood High Security 214/215 Series Aluminium Case Padlocks
      • Lockwood Safety Lockout Padlocks Catalogue(PDF, 1 MB)
      • Padlock Security Standards Overview(PDF, 844 KB)
      Description (Trade Pack)Part numberBarcode
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 5P KD214A40/619/5KD93-11847-79065-0
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 5P KA214A40/619/5KA93-11847-82198-9
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 6P KD214A40/619/6KD93-11847-82199-6
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 6P KA214A40/619/6KA93-11847-82200-9
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 6P MK214A40/619/6MK93-11847-82201-6
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 5P KD214A40/650/5KD93-11847-79067-4
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 5P KA214A40/650/5KA93-11847-82202-3
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 6P KD214A40/650/6KD93-11847-82203-0
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 6P KA214A40/650/6KA93-11847-82204-7
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 6P MK214A40/650/6MK93-11847-82205-4
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 6P BK214A40/619/BK93-11847-82206-1
      Aluminium Body Padlocks - 214 Series (5.0MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 6P BK214A40/650/BK93-11847-82207-8
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 5P KD215A40/619/5KD93-11847-82208-5
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 5P KA215A40/619/5KA93-11847-82209-2
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 6P KD215A40/619/6KD93-11847-82210-8
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 6P KA215A40/619/6KA93-11847-82211-5
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 6P MK215A40/619/6MK93-11847-82212-2
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 5P KD215A40/650/5KD93-11847-82213-9
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 5P KA215A40/650/5KA93-11847-82215-3
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 6P KD215A40/650/6KD93-11847-82216-0
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 6P KA215A40/650/6KA93-11847-82217-7
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 6P MK215A40/650/6MK93-11847-82218-4
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, STD 19MM Shackle Opening - 6P BK215A40/619/BK93-11847-82219-1
      Aluminium Body Padlocks - 215 Series (6.4MM Diameter Shackle) - 40MM, EXTD 50MM Shackle Opening - 6P BK215A40/650/BK93-11847-82220-7
      Aluminium Body Padlock - Protection Sleeve to suit 214 & 215 Padlock - 214 & 215 Plastic Sleeve RedSP214/1193-11847-82221-4
      Aluminium Body Padlock - Protection Sleeve to suit 214 & 215 Padlock - 214 & 215 Plastic Sleeve OrangeSP214/1293-11847-82222-1
      Aluminium Body Padlock - Protection Sleeve to suit 214 & 215 Padlock - 214 & 215 Plastic Sleeve YellowSP214/1393-11847-82223-8
      Aluminium Body Padlock - Protection Sleeve to suit 214 & 215 Padlock - 214 & 215 Plastic Sleeve GreenSP214/1493-11847-82224-5
      Aluminium Body Padlock - Protection Sleeve to suit 214 & 215 Padlock - 214 & 215 Plastic Sleeve BlueSP214/1593-11847-82225-2
      Aluminium Body Padlock - Protection Sleeve to suit 214 & 215 Padlock - 214 & 215 Plastic Sleeve PurpleSP214/1693-11847-82226-9
      Aluminium Body Padlock - Protection Sleeve to suit 214 & 215 Padlock - 214 & 215 Plastic Sleeve WhiteSP214/1793-11847-82227-6
      Aluminium Body Padlock - Protection Sleeve to suit 214 & 215 Padlock - 214 & 215 Plastic Sleeve BlackSP214/1893-11847-82228-3
