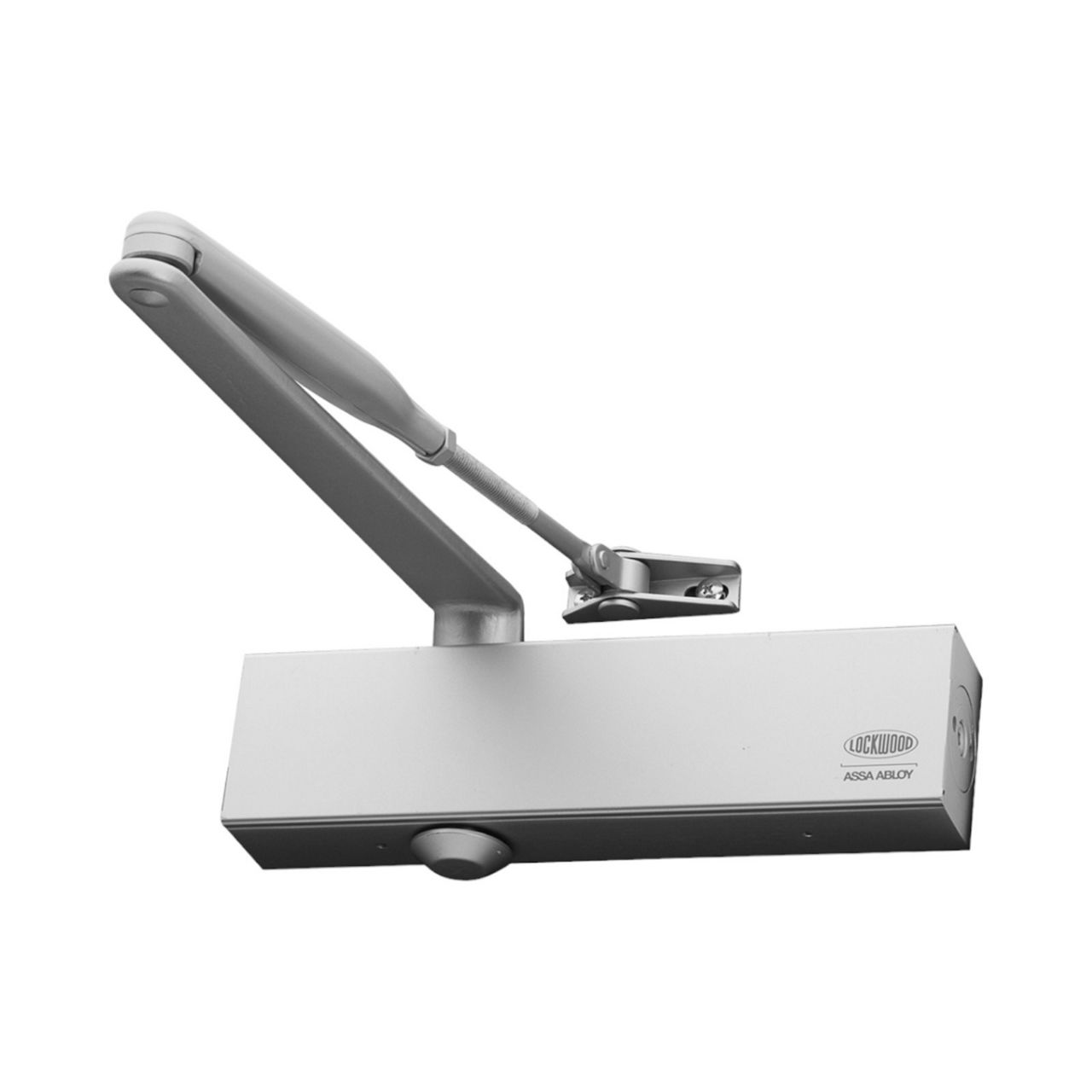

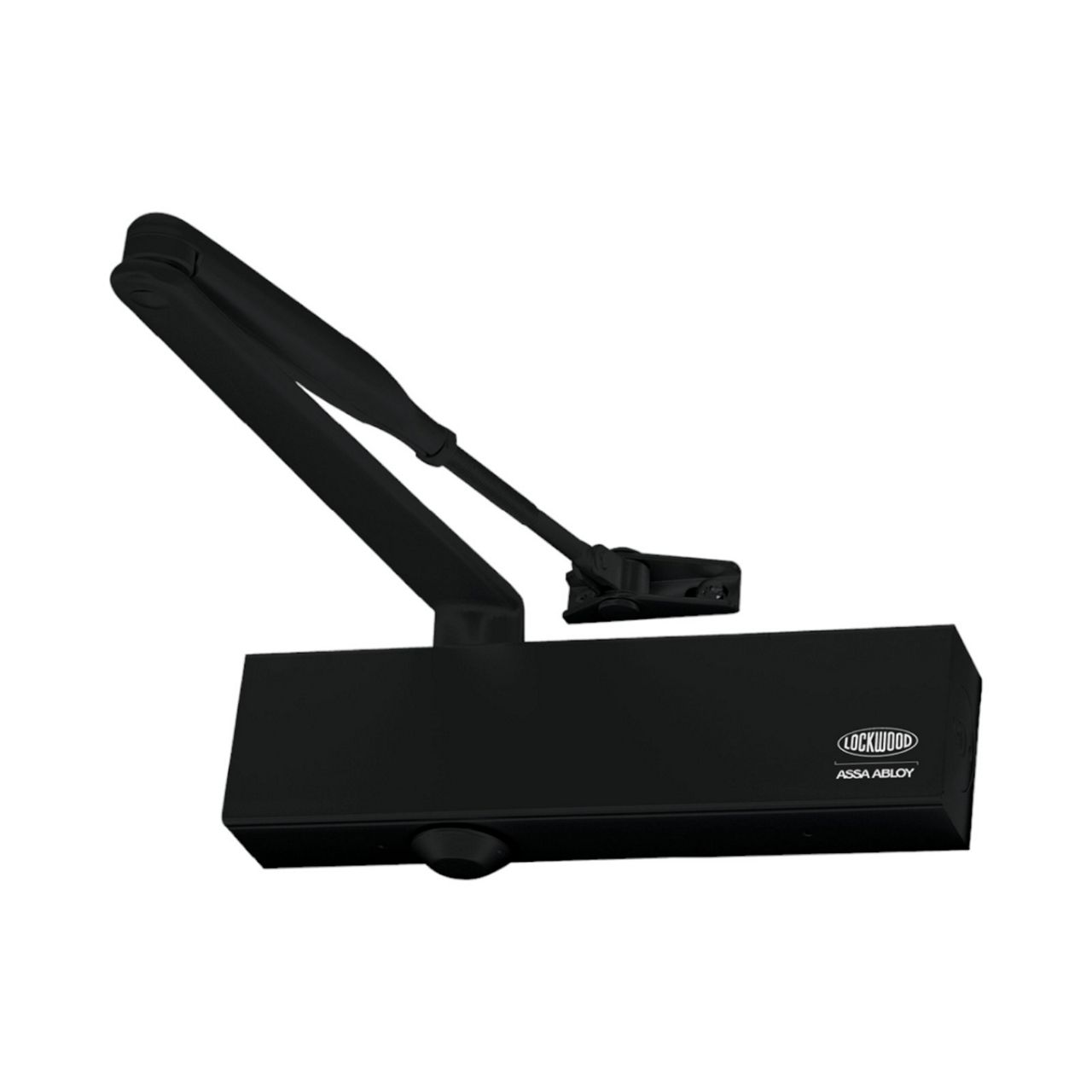

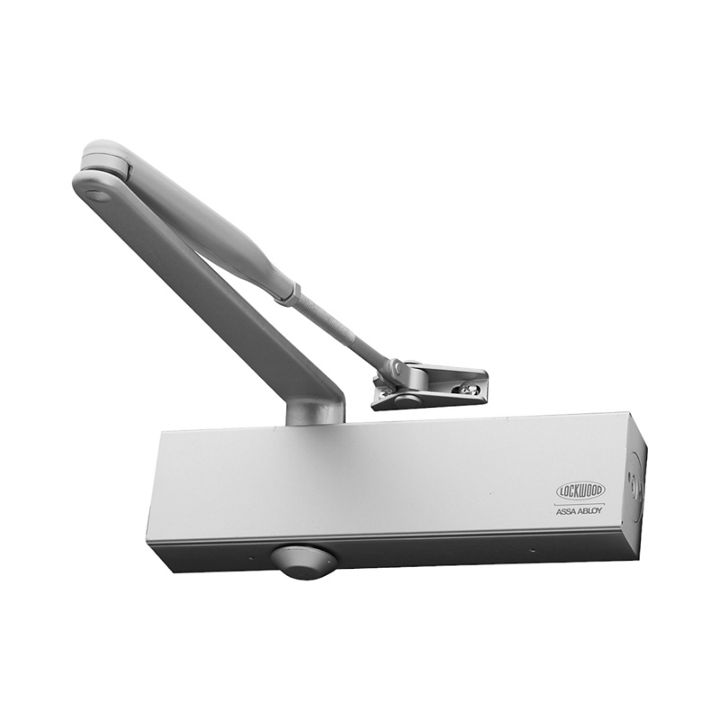

Lockwood 724 Series Door Closer

A range of adjustable power door closer units suitable for architectural and commercial applications.
Short arm to suit 400 mm width door is also available (7714-130SIL)

Power	EN adjustable 2 to 4.
Back check (BC)	Adjustable.
Hold Open	Adjustable. Hold-open can be set at any angle up to 150° of opening.
Handing	Non-handed. Suitable for left or right hand doors.
Cover	Clip-on.
Materials	Extruded aluminium body manufactured from high-performance silicon alloy.
Mechanism	Rack and pinion design.
Mounting	Regular, parallel and over-door mounting.
Valves	Adjustable closing and latching speed valves with overload protection.

Standards and Compliance

The Lockwood 724 series closer has been successfully tested upto four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets.

Note: Hold open option is not approved on any fire door.

Lockwood 724 Series Door Closer

Specifications

Downloads

Catalogue

Installation Instructions
