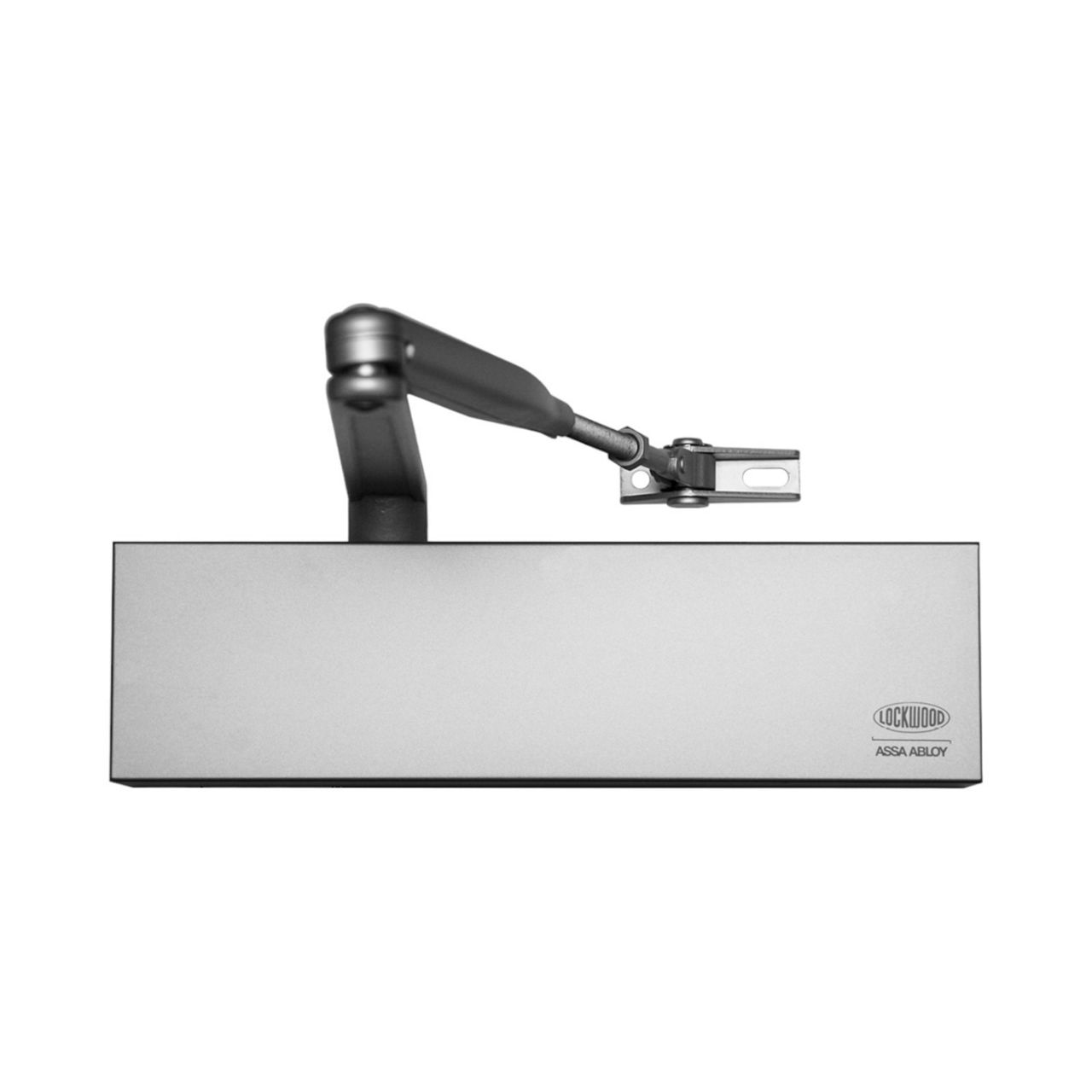

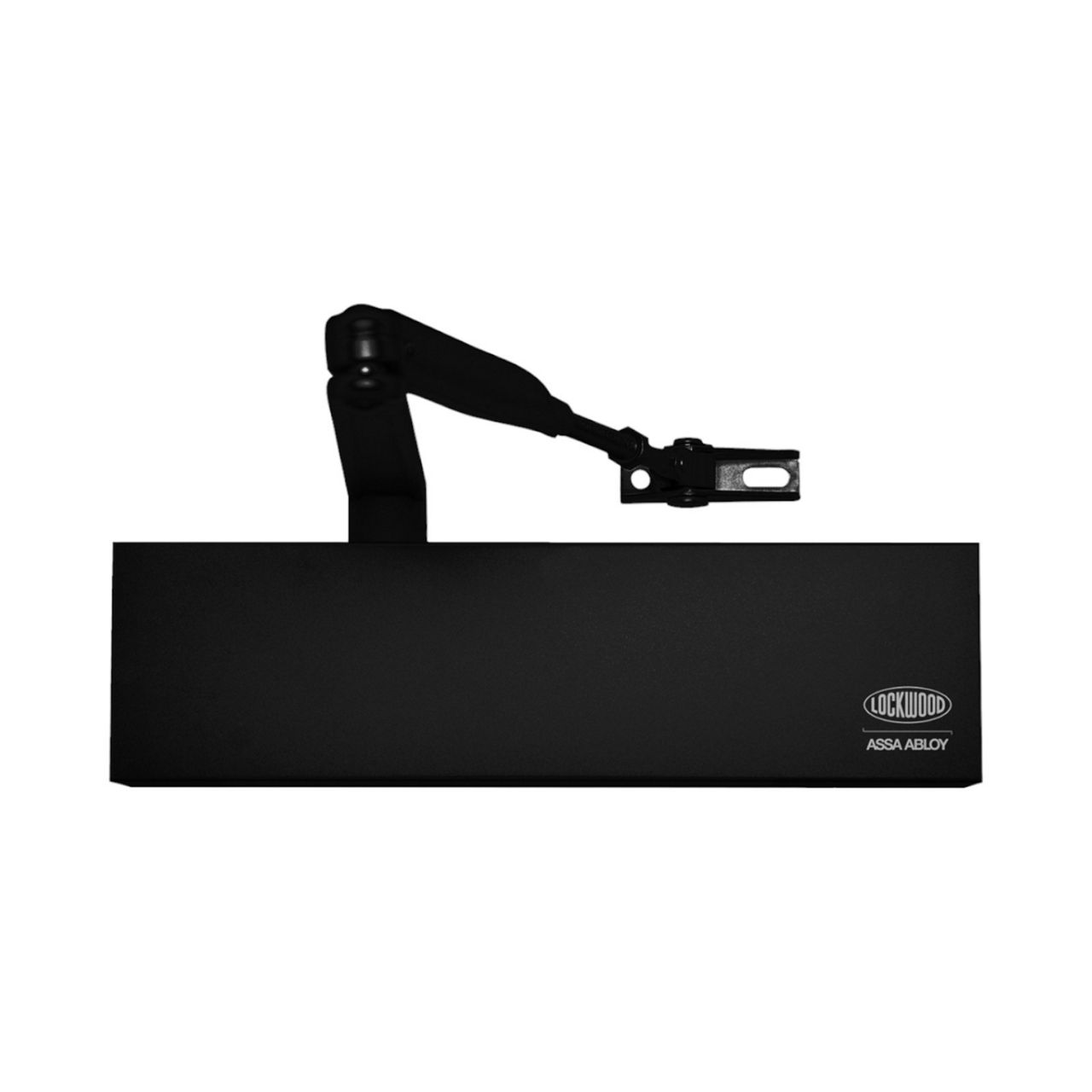

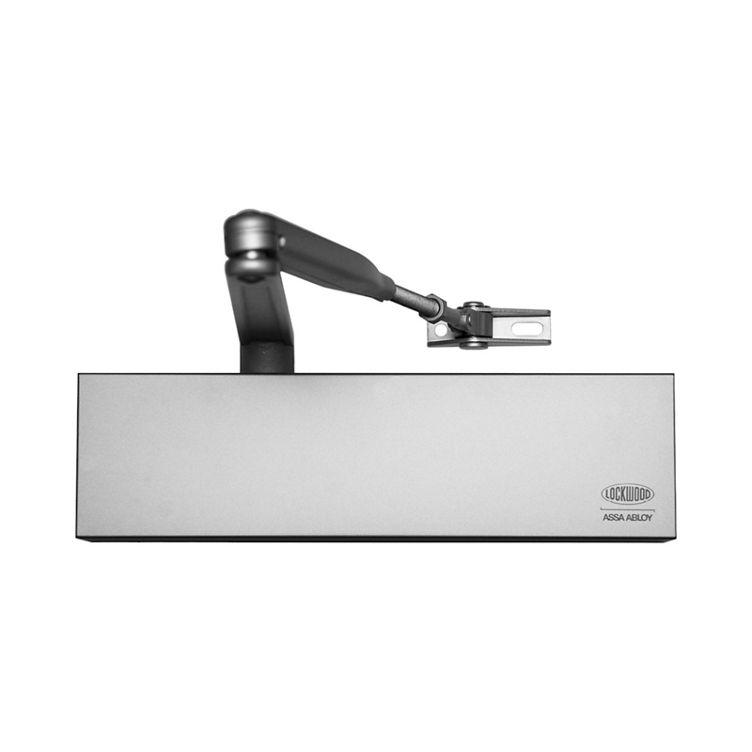

Lockwood 7714DA Series Premium Range Surface Mounted Door Closer

Rack and pinion adjustable power door closer suitable for architectural and commercial applications.

Image: 0b271-7714daseriespremiumrangesurfacemounteddoorcloser — 0b271-7714daseriespremiumrangesurfacemounteddoorcloser

Power	EN adjustable 1 to 4.
Back check (BC)	Adjustable.
Hold Open	Adjustable. Hold-open can be set at any angle up to 150° of opening.
Handing	Non-handed. Suitable for left or right hand doors.
Cover	Fully formed metal.
Materials	Extruded aluminium body manufactured from high-performance silicon alloy.
Mechanism	Rack and pinion design.
Mounting	Regular, parallel and over-door mounting.
Valves	Adjustable closing and latching speed valves with overload protection.
Delayed Action	Adjustable.

Standards and Compliance

The Lockwood 7714DA series closer has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets.

Note: Hold open option is not approved on any fire door.
