DualSelect®
Turn the key for safety mode. Turn the key further to select secure mode.
Lockwood Paradigm® Pull Handle Lockset - Self Latching Double Cylinder
This Australian designed lockset comes in three variants including a Double Cylinder Deadbolt, Self-Latching Single and Double Cylinder.
The Self-Latching Single and Double cylinders are specifically designed to meet the fire-rating requirements of semi-commercial and apartment buildings and have been successfully tested up to 2 hours (depending on the type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1-2005, part1: Fire Resistant Doorsets.
In addition to fire-rating, the range also incorporates innovative design and contemporary style that will be an excellent choice for an elegant entrance to your building.
* For questions concerning our fire rated products, their specifications and their utilisation please contact ASSA ABLOY or relevant Fire Door manufacturer.
Key Features
- Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
- High security cut resistant stainless steel deadlatch
- Brushed 304 grade Stainless Steel Pull Handle
- Concealed screw fixings provide a neat and clean appearance
- Can be matched with any of Lockwood's internal levers for a stunning and contemporary look throughout the house
- Can be matched with dummy (non-functioning) pull handle for double door applications

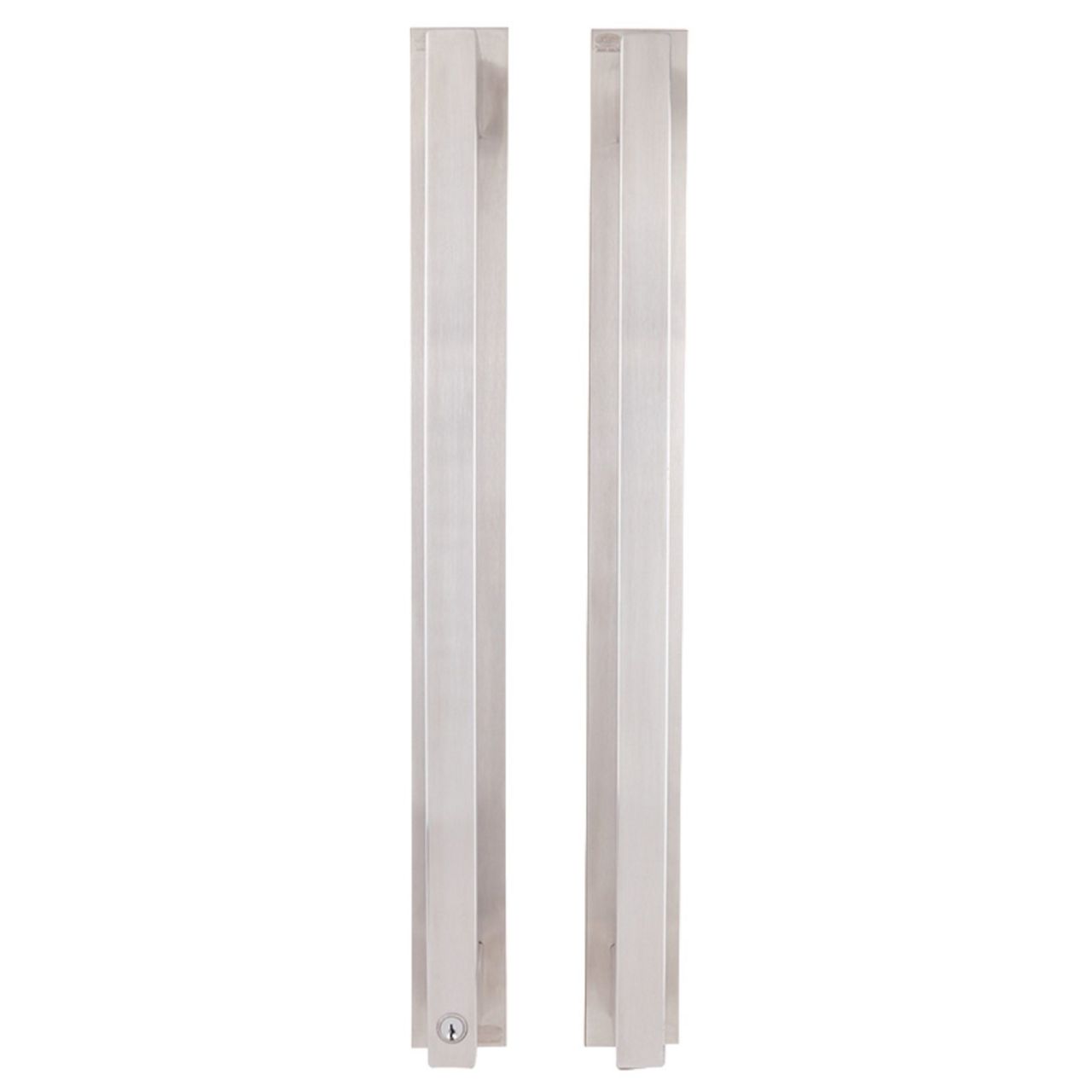

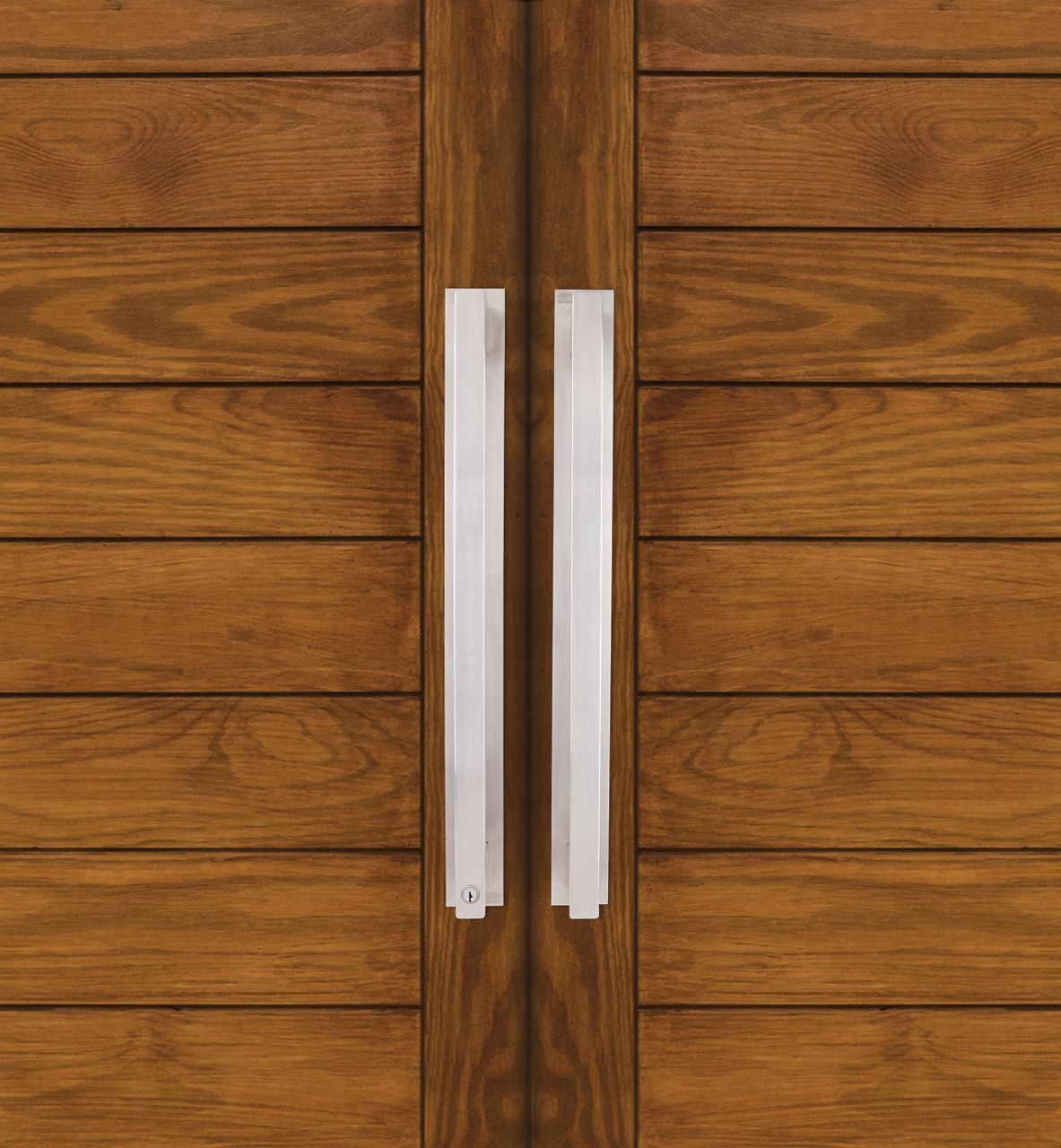

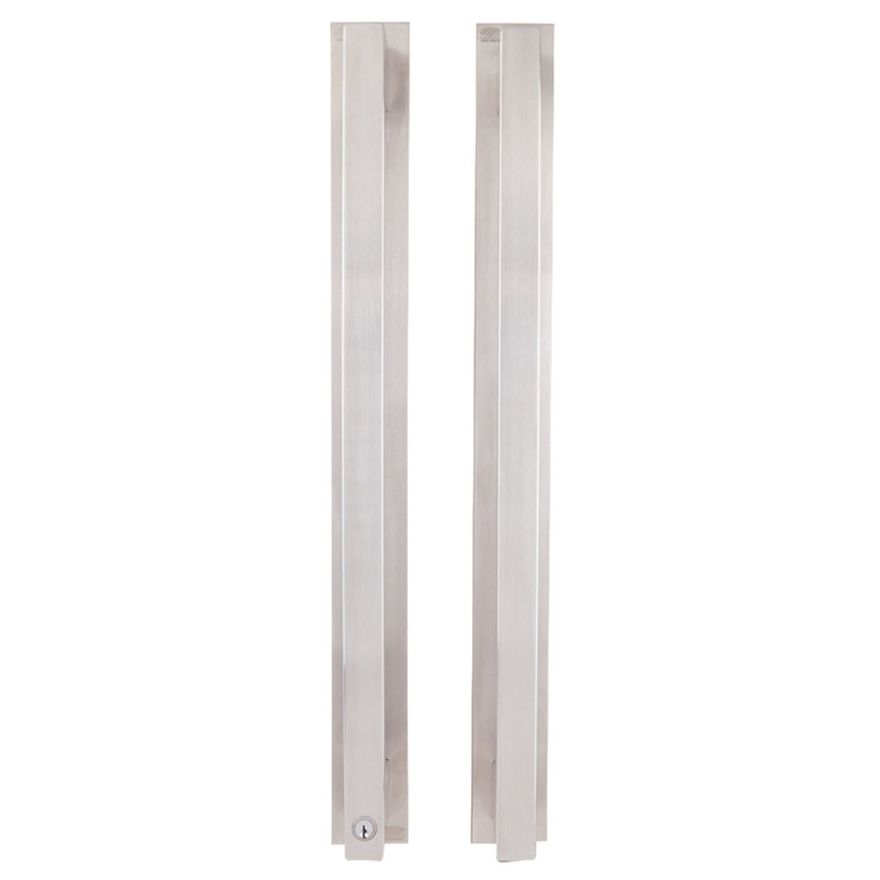

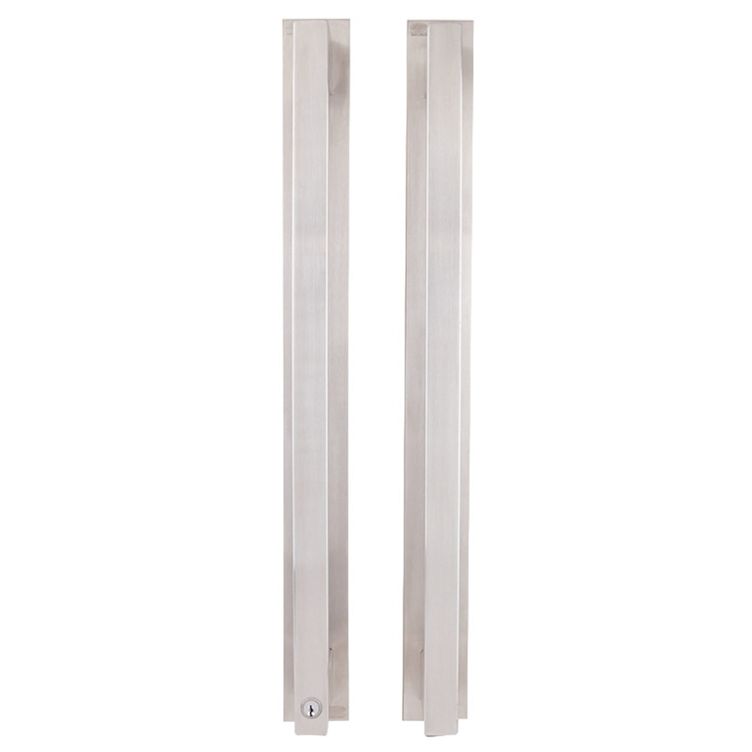

Exterior view
Exterior view

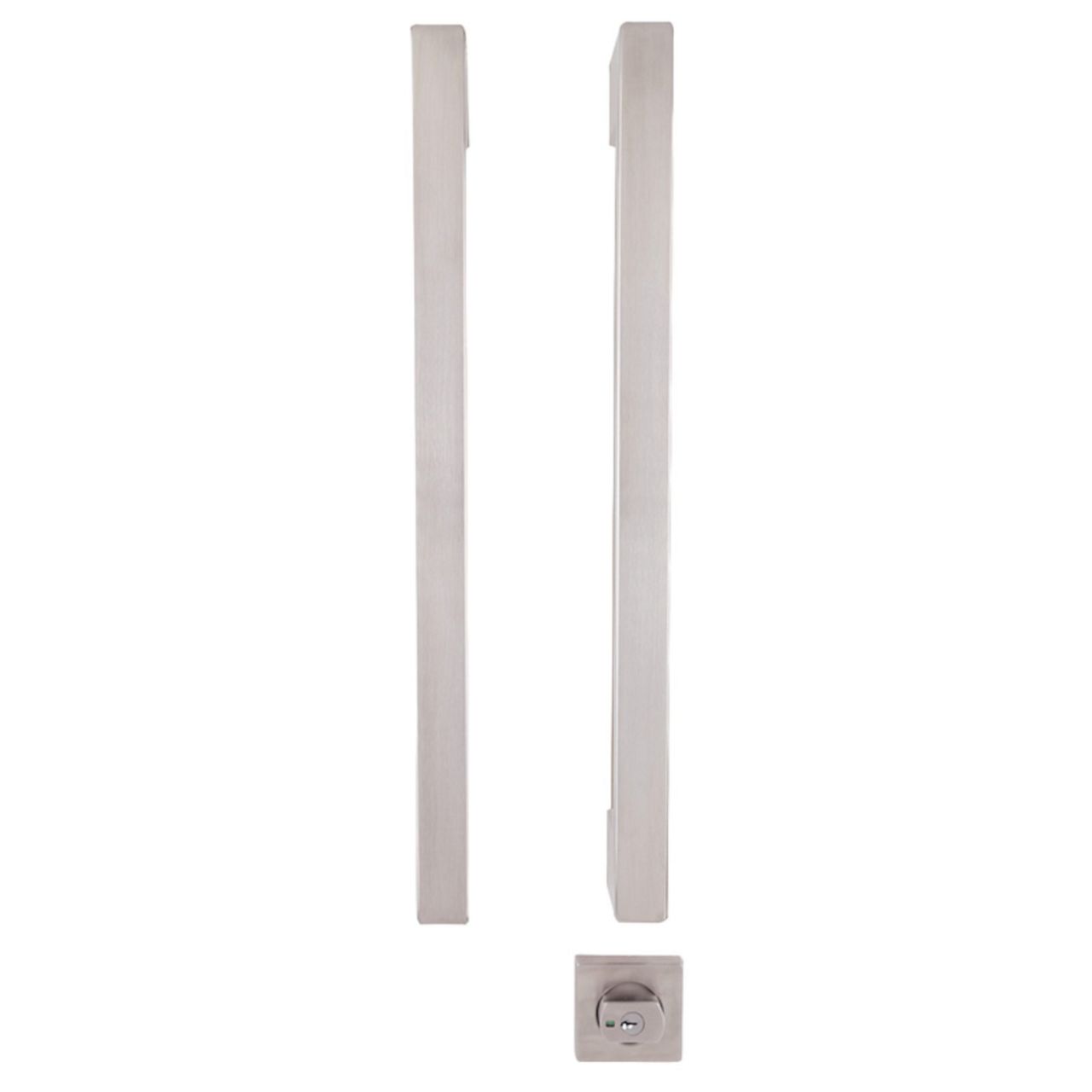

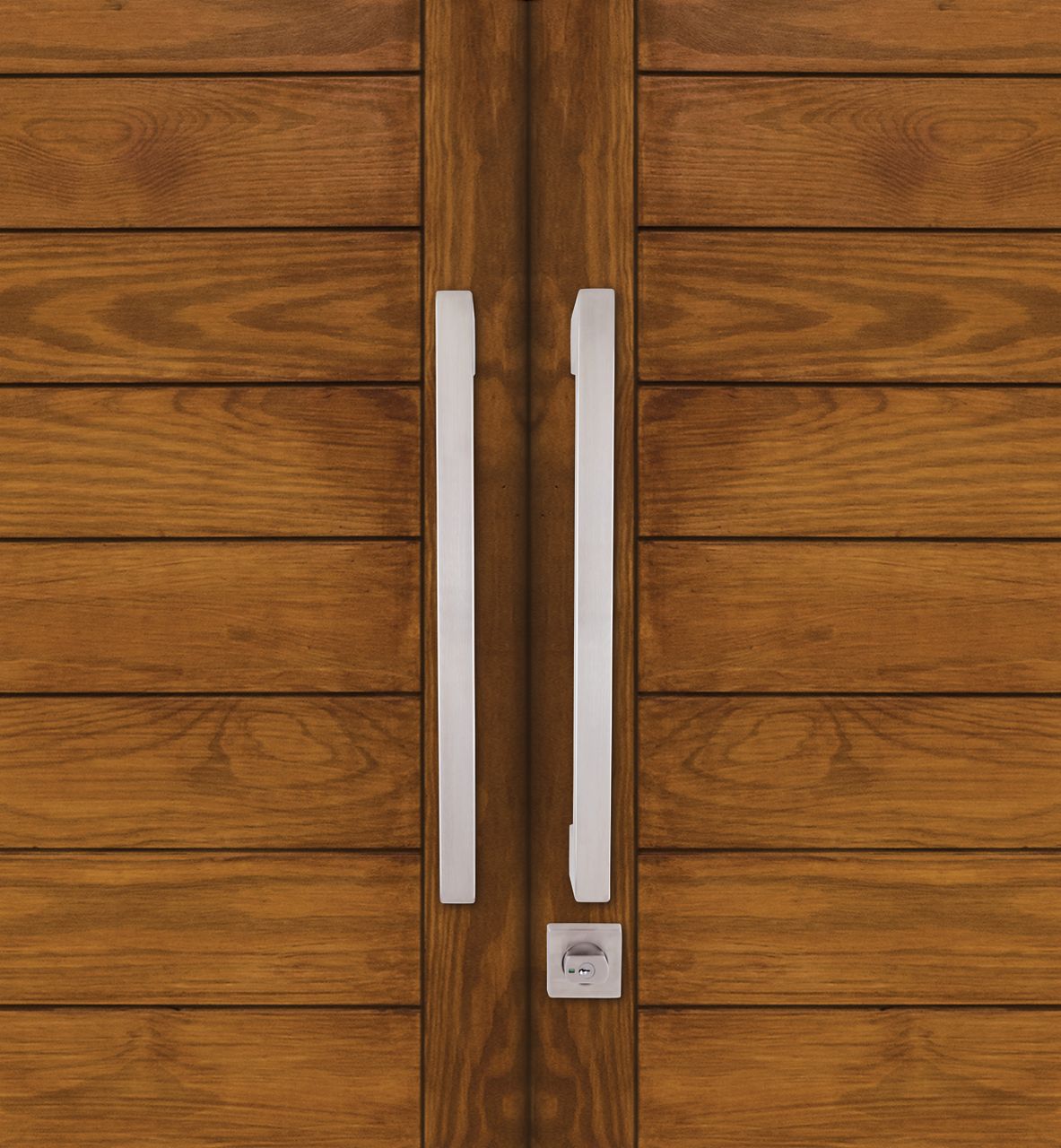

Interior view
Exterior view
Interior view
Key Features
SafetyRelease™
Minimises the risk of being locked in.
Corrosion Resistant
Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
Kinetic Defence®
Bump and pick resistant.
Counterbalance Bolt
Proportionally distributes the load between the door and door frame.
2 Keys Included
Can be keyed alike to other Lockwood door locks.
Door Thickness
32mm to 48mm.
LockAlert®
Interior Indicator shows lock status at a glance.
Safety Mode
Securely locked from outside and free from inside.
Secure Mode
Securely locked from both inside and outside. For when nobody is home.
Passage Mode
Free to enter from outside and free to exit from inside.
Backset
60mm standardDimensions
External handle length - 600mm
Internal handle length - 500mm
Handle width - 30mmCylinder
- 5 pin tumbler mechanism
- Brass cylinder and brass barrel
Keying
Standard Keying
- Supplied individually keyed with two keys per lock
- 78,000 key combinations
- Key blank KB2015P
- AS 4145.2-2008 K5
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems.
These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.Dummy (non-functioning Pull Handle)
The dummy (non-functioning) Pull Handle will compliment a double door application with a stunning look that makes entrance to the house as elegant with contemporary design.Description (Display Pack) Part number Barcode Paradigm Pull Handle Lockset - Double Cylinder Deadlatch (Stainless Steel) 005/DPHLSSS 9340116023595 Paradigm Pull Handle Lockset - Dummy (Stainless Steel) 005/PHDSSS 9340116023618
