• Dimensions

    Length: 130mm
    Projection: 61.5mm
    Finger clearance: 40.5mm

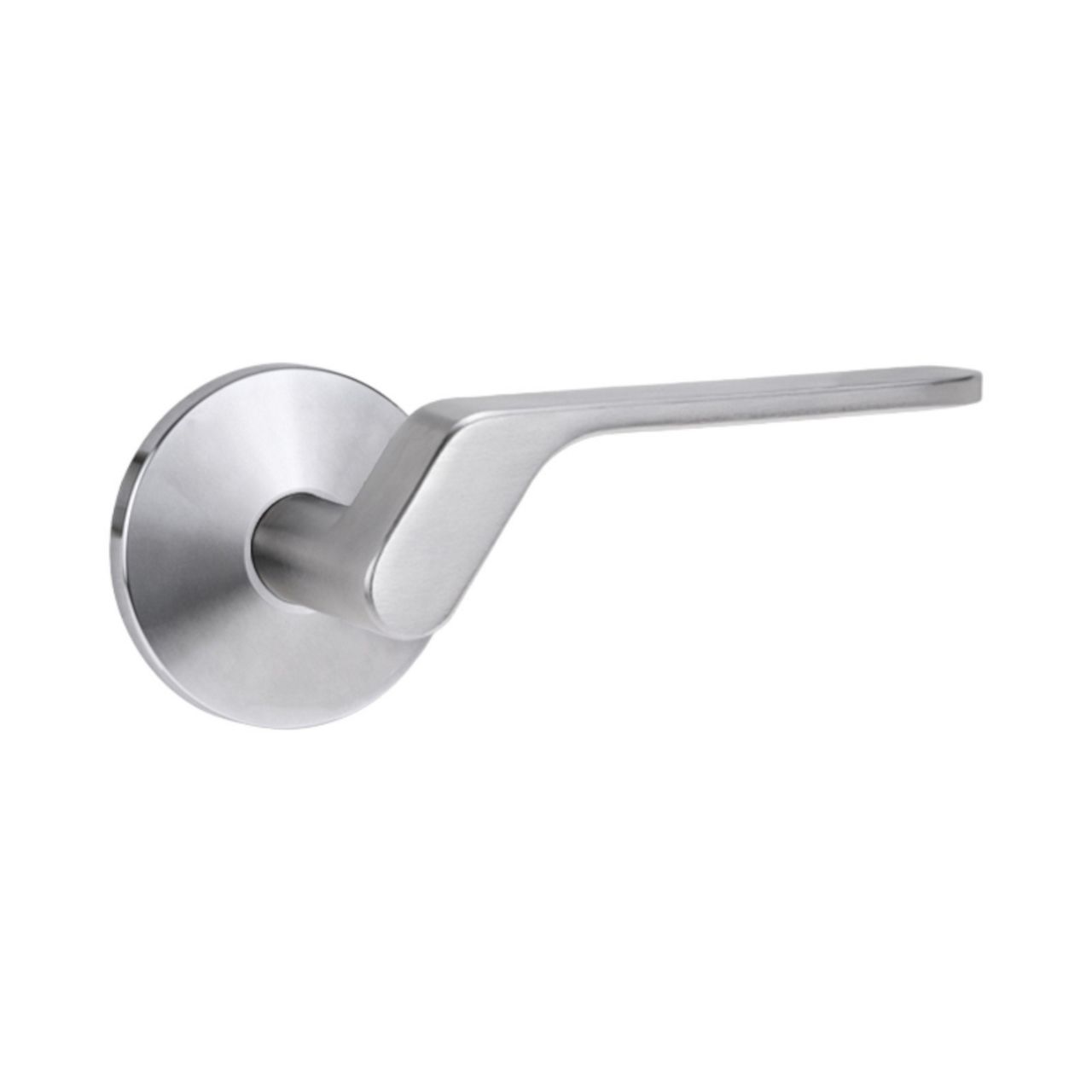

    Lever is an asymmetrical design and therefore must be handed.

    Handing
    A removable stop screw allows all symmetrically designed levers (e.g. Cadenza) to be handed on site. Levers of asymmetrical design (e.g. Veloce) cannot be reversed. Specify left or right handed when ordering.

    Materials
    All Lockwood roses and levers contained in the 1360 series are of solid brass construction.

    Fixing
    Roses are designed to fit back to back.
    If outside rose is specified with concealed fixing, then the inside rose must be visible fixed. Roses numbered 1360, 1362, and 1364 are concealed fixed, roses numbered 1361, 1363 and 1365 are visible fixed.

    Door Thickness
    33mm minimum for 5260 Latches and 32mm minimum for Lockwood 3770 Selector & 3570 Synergy Series Mortice Latches. Maximum door thickness 50mm.

    Finishes

    Standard

    • Satin Chrome Brushed SC

    Non Standard

    • Architectural Bronze AB
    • Architectural Bronze Unlaquered AU
    • Antique Copper AC
    • Chrome Plate CP
    • Polished Brass Unlacquered BU
    • Polished Brass PB
    • Polyester Powdercoat PC
    • Satin Brass SB
    • Oil Rubbed Bronze ORB

    Rose Dimensions

  • Trade Pack
    Description Part Number
    Round Rose Furniture Full Set 1360/1361/41SC
    Round Rose Furniture - Half Set 1360/41SC
    Round Rose Furniture - Fixed Half Set 1364/41SC

    1360 Blank Roses

    Description Part Number
    Blank Rose - Exterior 1362SC
    Blank Rose - Interior 1363SC

    Note: Items shown above feature the Satin Chrome Brushed finish (SC). For alternative finish substitute SC for appropriate finish.

    Standard Finishes

    Satin Chrome Brushed - SC

    Non-standard Finishes

    Polished Brass - PB
    Chrome Plate - CP
    Polished Brass Unlaquered - BU
    Polyester Powdercoat - PC
    Satin Brass - SB
    Architectural Bronze - AB
    Architectural Bronze Unlaquered - AU
    Antique Copper - AC
    Oil Rubbed Bronze - ORB

    1360 Series Cylinder and Turn Escutcheons

    A range of escutcheons for the fitting of cylinders, turnknobs and emergency turns are available in the same wide choice of metal finishes to complement all lever furniture installations.

    Features of the 1360 Series Cylinder and Turn Escutcheons

    • Designed and manufactured in Australia
    • Turn escutcheons feature a unique mechanism that automatically adjusts the length of the tail bar to suit a particular door thickness

    Selector 3700 Series Mortice Lock Through fix Escutcheon Kits

    A new range of escutcheon kits has been introducted as part of the release of the new Selector 3700 Series Mortice Lock. This new range of escutcheon kits are designed to be fixed through the new mortice lock and door to provide more robust fixing.

    Key Features

    • Supplied with two escutcheons to accomodate both exterior and interior functions
    • Supplied with two screws for through fixing which can be cut to length to suit 32-50mm door thickness
    • Designed to be fixed through the door for strength and durable performance
    • Uniform rose and escutcheon dimensions for a more aesthetically pleasing installation

    Double Oval Cylinder Escutcheons Kit

    Part Number: 1366/6SC

    Designed for use with Selector Series Mortice Locks. Through fixing with stainless steel screws.

    Escutcheons supplied
    Exterior : Oval Cylinder
    Interior : Oval Cylinder

    Note: If only one oval cylinder escutcheon is required, please order 1366/ESC. Grub screws will be provided for concealed fixing.

    Oval Cylinder and Turnknob Escutcheons Kit
    Standard Turnknob Escutcheon

    Part Number: 1366/7NSC

    Designed for use with Selector Series Mortice Locks. Through fixing with stainless steel screws.

    Escutcheons supplied
    Exterior : Oval Cylinder
    Interior : Oval Turnknob

    Privacy Indicating Emergency Turn and Disabled Accessible Turnknob Escutcheons Kit
    Privacy Indicating Emergency Turn EscutcheonPrivacy Indicating Accessible Turn Escutcheon

    Part Number: 1368/9PLSC

    Designed for use with Selector Series Mortice Locks. Through fixing with stainless steel screws.

    Escutcheons supplied
    Exterior : Privacy Indicating Emergency Turn
    Interior : Privacy Indicating Disabled Accessible Turnknob

    Note: Disabled Accessible Turnknobs require handing

    Note: Items shown above feature common kit configurations, for more kit variations please refer to the ordering procedure in the product catalogue in the Downloads seciton.

    Synergy Series Mortice Lock Escutcheons

    Designed to be surface fixed with wood screws, concealed by a threaded rose trim.

    Oval Cylinder Escutcheon



    Designed for use with Synergy Series Mortice Locks. Concealed fixing via grub screws.

    Part Number: 1366/ESC



    Oval Turnknob Escutcheon

    Standard Turnknob Escutcheon

    Designed for use with Synergy Series Mortice Locks. Surface fixing via wood screws.

    Part Number: 1367/INSC

    Privacy Indicating Oval Turnknob Escutcheon

    Privacy Indicating Turnknob Escutcheon

    Designed for use with Synergy Series Mortice Locks. Surface fixing via wood screws.

    Part Number: 1367/IPSC

    Emergency Turn Escutcheon

    Emergency Turn Escutcheon

    Designed for use with Synergy Series Mortice Locks. Concealed fixing via wood screws.

    Part Number: 1228/INSC

    Privacy Indicating Emergency Turn Escutcheon

    Privacy Indicating Emergency Turn Escutcheon

    Designed for use with Synergy Series Mortice Locks. Concealed fixing via wood screws.

      Part Number: 1228/IPSC

    Disabled Accessible Turnknob Escutcheon

    Accessible Turn Escutcheon

    Designed for use with Synergy Series Mortice Locks. Surface fixing via wood screws.

    Part Number: 1369/INLSC

    Note: Disabled Accessible Turnknobs require handing

    Privacy Indicating Disabled Accessible Turnknob Escutcheon

    Privacy Indicating Accessible Turn Escutcheon

    Designed for use with Synergy Series Mortice Locks. Sur fixing via wood screws.

    Part Number: 1229/IPLSC

    Note: Disabled Accessible Turnknobs require handing

     Note: Items shown above feature the Satin Chrome Brushed finish (SC). For alternative finish substitute SC for appropriate finish.

    Selector 3700 Series Mortice Lock Through fix Escutcheon Kits

    Designed to be fixed through the door for strength and durable performance.

    Description Part Number
    Double Oval Cylinder Escutcheons Kit 1366/6SC
    Oval Cylinder and Turnknob Escutcheons Kit 1366/7NSC
    Privacy Indicating Emergency Turn and Privacy Indicating Disabled Accessible Turnknob Escutcheons Kit 1368/9PRSC

    Notes:

    If only one oval cylinder escutcheon is required, please order 1366/ESC. A grub screw will be supplied for concealed fixing.

    Only kits with Disabled Accessible Turnknobs require handing. Handing is based on the door. A right-handed escutcheon kit suits a right-handed door, this kit will be supplied with a left-handed disabled accessible turnknob, as this turnknob is intended to be used on the interior side of the door.

    Items shown above feature common kit configurations, for more kit variations please refer to the ordering procedure in the product catalogue in the Downloads section.

    Synergy Series Mortice Lock Escutcheons

    Designed to be surface fixed with wood screws.

    Description Part Number
    Oval Cylinder Escutcheon 1366/ESC
    Oval Turnknob Escutcheon 1367/INSC
    Privacy Indicating Oval Turnknob Escutcheon 1367/IPSC
    Emergency Turn Escutcheon 1368/INSC
    Privacy Indicating Emergency Turn Escutcheon 1368/IPSC
    Disabled Accessible Turnknob Escutcheon 1369/INLSC
    Privacy Indicating Disabled Accessible Turnknob Escutcheon 1369/IPLSC

    Note: Items shown above feature the Satin Chrome Brushed Finish (SC). For alternative finish substitute SC for appropriate finish.
