AS1428.1 Compliant.
Lockwood Velocity® Series 55mm Rose Door Handles offer home owners and builders a contemporary collection of levers on rose for use within a residential environment. Designed in Australia, the Velocity series encompasses the robust design and product quality that has become synonymous with Lockwood. Available with either round or square rose and complemented with nine modern lever designs. The Velocity Series captures the aesthetic tone of the residential market providing style whilst maintaining utilitarian desire.
With a design that transcends the basic functional and aesthetic requirements of residential hardware, the Velocity series sets a new benchmark in ease of installation. The Velocity Series includes passage sets for connecting doors, privacy sets for bathroom and toilet doors and dummy half sets for use on cupboard and wardrobe doors where a consistent styling is desired.
Velocity levers styles are common to the Lockwood Nexion and Lockwood Palladium ranges, facilitating a uniform design aesthetic throughout the home. It is also the perfect complement to the uncompromising Paradigm 005 deadbolt.
Features of the Velocity Series Door Furniture
Chrome Plate Finish - CP

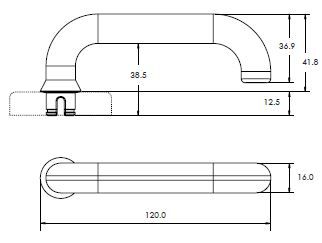

Lever Dimensions
Length: 120mm
Projection: 64mm
Finger clearance: 38.5mm
Rose Dimensions
55mm by 12.5mm
Installation Video |
Super Fast Installation
Through the simple twist and tighten fixing action the Velocity Series turns the rhetoric of ease of installation into reality.
The frustration of fiddling with small parts or misplacing them during installation is a thing of the past as Velocity lever sets are supplied pre-assembled so there are no loose screws or spindles.
Screws align through the rose removing the need to locate them blind through the door. A twist and a quick tighten of screws and the levers are installed.
Materials
All Velocity levers and roses are made from solid zinc die-cast.
Latches
Passage sets are available both with and without a 60mm backset tubular latch.
Privacy sets are supplied with a 60mm backset privacy latch which includes an activating pin for the inside of the door and an external emergency release function. The latch is automatically released when the internal handle is operated and is easily adapted for both open in and open out applications.
All latches are supplied with industry standard "D" strikes.
Functions
Door Thickness
Hinged doors 32mm to 45mm
Standard Finishes
Description (Trade Pack) | Part number | Barcode |
---|---|---|
Gidgee (AS1428.1 Compliant) Mortice Lock Furniture - Chrome Plate | VSR0/37CP | 93-11847-13533-8 |
Gidgee (AS1428.1 Compliant) Mortice Lock Furniture - Satin Chrome Brushed | VSR0/37SC | 93-11847-13534-5 |
Gidgee (AS1428.1 Compliant) Passage Sets with Latch - Chrome Plate | VSR1/37CP | 93-11847-13499-7 |
Gidgee (AS1428.1 Compliant) Passage Sets with Latch - Satin Chrome Brushed | VSR1/37SC | 93-11847-13498-0 |
Gidgee (AS1428.1 Compliant) Privacy Sets with Latch - Chrome Plate | VSR2/37CP | 93-11847-13517-8 |
Gidgee (AS1428.1 Compliant) Privacy Sets with Latch - Satin Chrome Brushed | VSR2/37SC | 93-11847-13518-5 |
Gidgee Dummy Half Sets - Chrome Plate | VSR3/37CP | 93-11847-13485-0 |
Gidgee Dummy Half Sets - Satin Chrome Brushed | VSR3/37SC | 93-11847-13484-3 |
