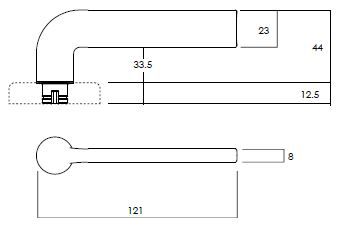

• Lever Dimensions

    Length: 121mm
    Projection: 56.5mm
    Finger clearance: 33.5mm

    Rose Dimensions
    63mm by 12.5mm

    Installation Video
    Step by step instructions to install your Lockwood Velocity Door Handles.

    Super Fast Installation

    Through the simple twist and tighten fixing action the Velocity Series turns the rhetoric of ease of installation into reality.

    The frustration of fiddling with small parts or misplacing them during installation is a thing of the past as Velocity lever sets are supplied pre-assembled so there are no loose screws or spindles.

    Screws align through the rose removing the need to locate them blind through the door. A twist and a quick tighten of screws and the levers are installed.

    Materials
    All Velocity levers and roses are made from solid zinc die-cast.

    Latches
    Passage sets are available both with and without a 60mm backset tubular latch.

    Privacy sets are supplied with a 60mm backset privacy latch which includes an activating pin for the inside of the door and an external emergency release function. The latch is automatically released when the internal handle is operated and is easily adapted for both open in and open out applications.

    All latches are supplied with industry standard "D" strikes.

    Functions

    • Passage
    • Privacy

    Door Thickness
    Hinged doors 32mm to 45mm

    Standard Finishes

    • Satin Chrome Pearl SP
    • Satin Chrome Brushed SC
    • Chrome Plate CP

    Velocity Series Door Furniture levers include

    • Summit L1
    • Spire L2
    • Element L3

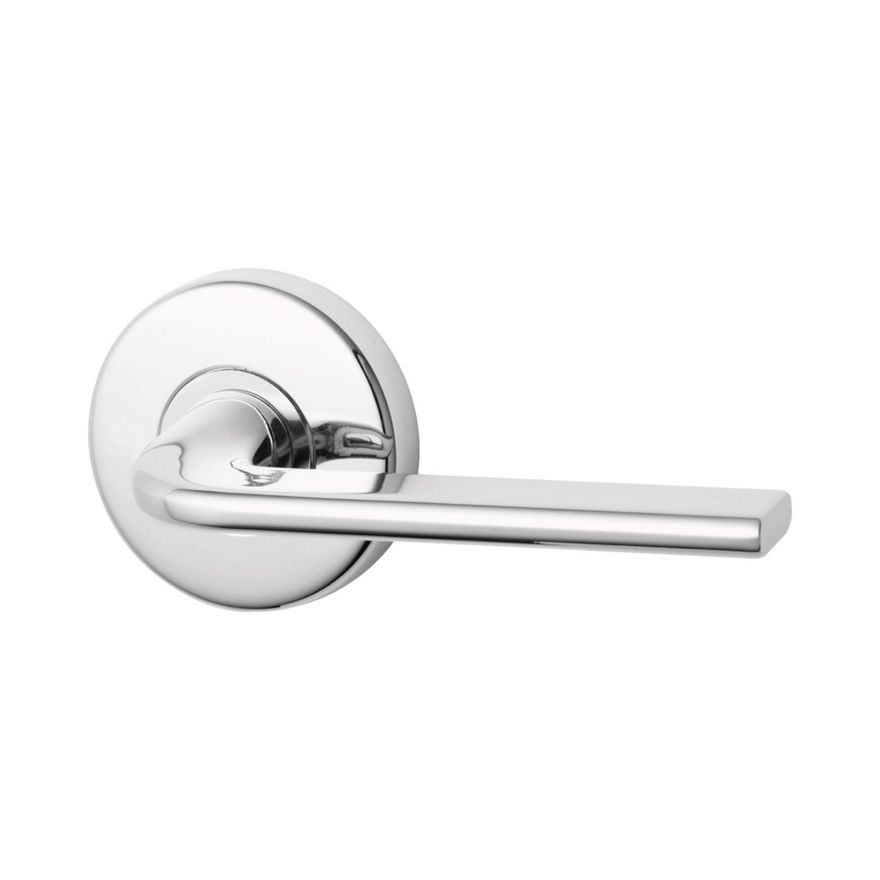

    • Glide L4
    • Hakea 28
    • Saltbush 34
  • DescriptionPart numberBarcode
    DISPLAY PACK
    Velocity - Passage Set with Glide Lever - Satin Chrome PearlVEL1/L4SPDP93-11847-99748-6
    Velocity - Passage Set with Glide Lever - Chrome PlateVEL1/L4CPDP93-11847-99752-3
    Velocity - Passage Set with Glide Lever - Satin Chrome BrushedVEL1/L4SCDP93-11847-12423-3
    Velocity - Privacy Set with Glide Lever - Satin Chrome PearlVEL2/L4SCPDP93-11847-99760-8
    Velocity - Privacy Set with Glide Lever - Chrome PlateVEL2/L4CPDP93-11847-99759-2
    Velocity - Privacy Set with Glide Lever - Satin Chrome BrushedVEL2/L4SCDP93-11847-12437-0
    TRADE PACK
    Velocity - Passage Set with Glide Lever - Satin Chrome PearlVEL1/L4SP93-11847-99771-4
    Velocity - Passage Set with Glide Lever - Chrome PlateVEL1/L4CP93-11847-99769-1
    Velocity - Passage Set with Glide Lever - Satin Chrome BrushedVEL1/L4SC93-11847-12443-1
    Velocity - Passage Set with Glide Lever (No Latch) - Satin Chrome PearlVEL1/L4NLSP93-11847-99778-3
    Velocity - Passage Set with Glide Lever (No Latch) - Chrome PlateVEL1/L4NLCP93-11847-99779-0
    Velocity - Passage Set with Glide Lever (No Latch) - Satin Chrome BrushedVEL1/L4NLSC93-11847-12458-5
    Velocity - Privacy Set with Glide Lever - Satin Chrome PearlVEL2/L4SP93-11847-99788-2
    Velocity - Privacy Set with Glide Lever - Chrome PlateVEL2/L4CP93-11847-99787-5
    Velocity - Privacy Set with Glide Lever - Satin Chrome BrushedVEL2/L4SC93-11847-12449-3
    Velocity - Dummy Half Set with Glide Lever - Satin Chrome PearlVEL3/L4SP93-11847-99796-7
    Velocity - Dummy Half Set with Glide Lever - Chrome PlateVEL3/L4CP93-11847-99795-0
    Velocity - Dummy Half Set with Glide Lever - Satin Chrome BrushedVEL3/L4SC93-11847-12464-6
