Lockwood Vivid® Collection Internal Door Leversets - Lever 4

The Lockwood Vivid® Collection is a stylish range of internal door furniture suitable for use in residential dwellings.

The Vivid® Collection includes three different internal leversets: the Privacy Leverset, Passage Leverset and Half Dummy Lever.

The Privacy Leverset comes with Privacy Tubular Latches and an accessory pack (including spindles, springs, mounting wood screws, through fix screws, privacy pin and a pointed tool), while the Passage Leverset comes with tubular latches and a different accessory pack (including spindles, springs, mounting wood screws, and through fix screws), specifically designed for passage door applications. The Half Dummy Lever comes with a fixed lever and timber mounting screws to be used on cupboard or wardrobe doors.

Features and Specifications

  • All fixings are concealed beneath a removable rose trim providing an aesthetically appealing installation.
  • Lever range includes two AS1428.1 compliant levers
  • The 54mm rose suits up to 45mm door preparations.

PVD coating

The Vivid® Collection’s three finishes are derived from a physical vapor deposition (PVD) surface treatment which offers a range of benefits, including sustainability and durability. PVD coatings exhibit unparalleled hardness, with four times the robustness of chrome, along with superior scratch and wear resistance, and reduced susceptibility to corrosion. In addition, PVD coatings do not emit toxic liquids or gases during manufacturing, making them a cleaner and safer method of production.

Available Finishes

  • PVD Satin BrassPVD Satin Brass

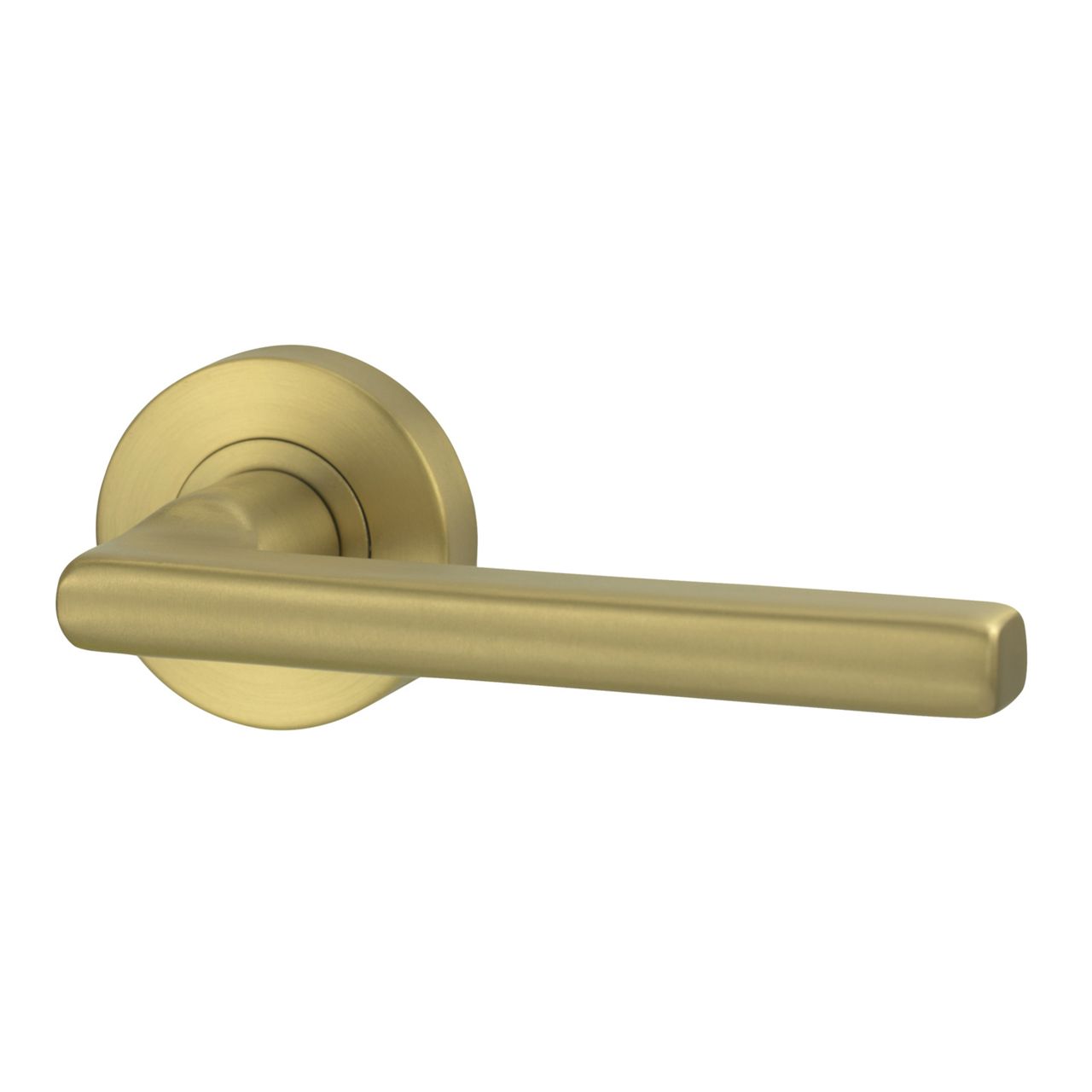

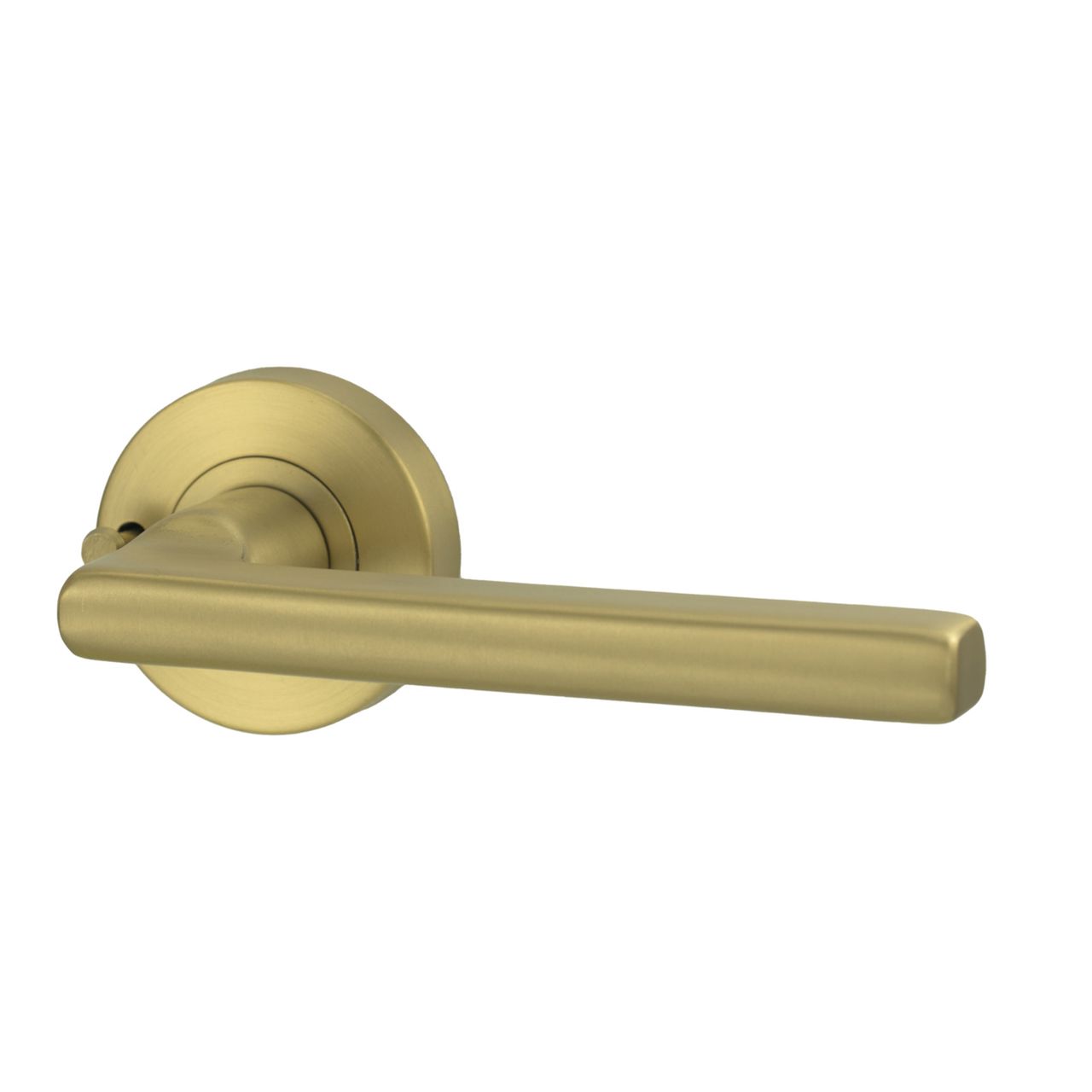

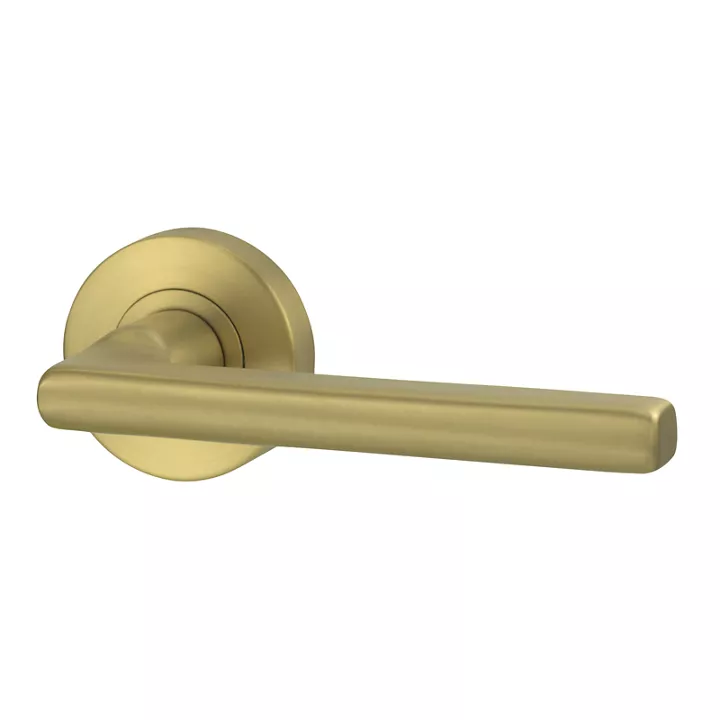

    PVD Satin Brass

  • PVD Satin Gun MetalPVD Satin Gun Metal

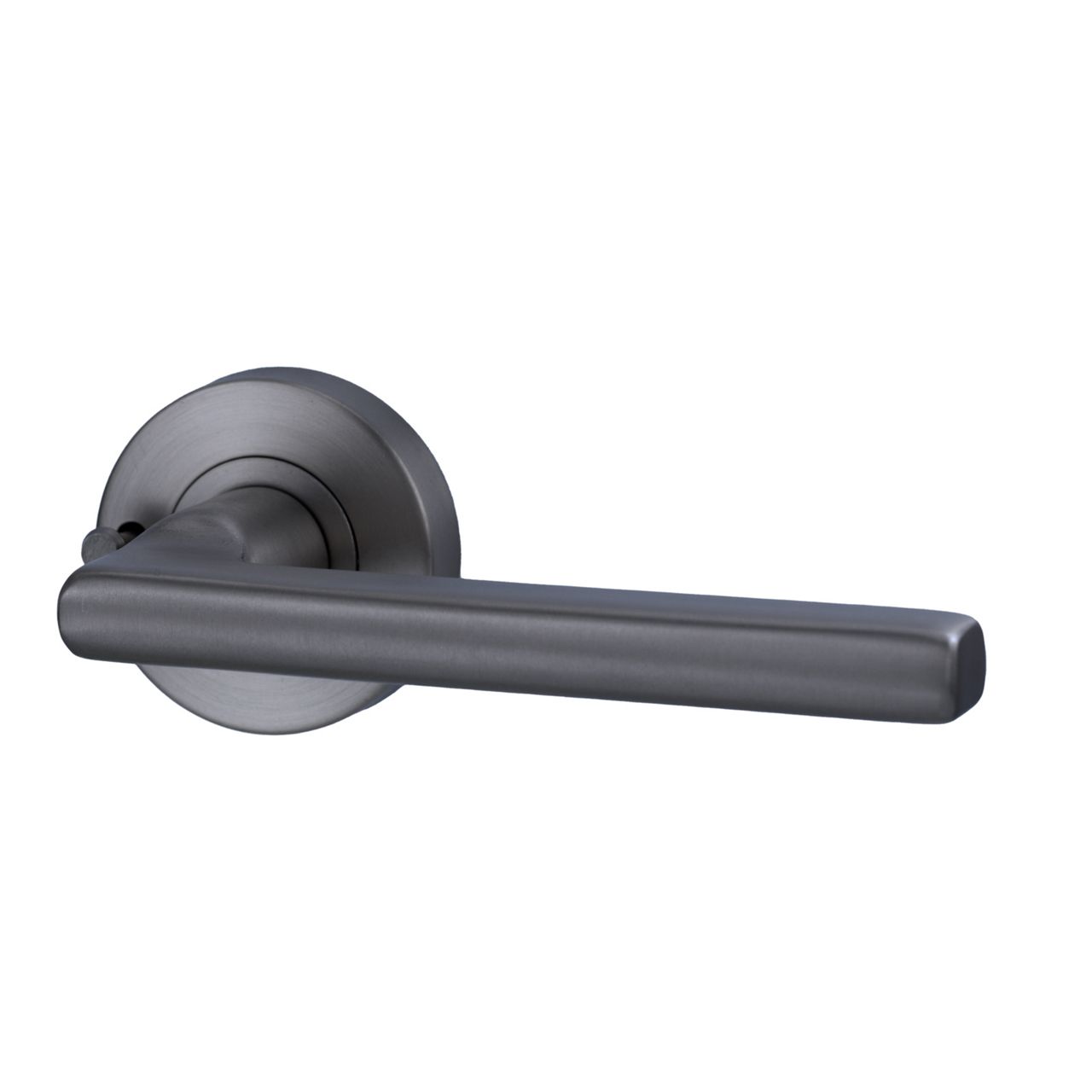

    PVD Satin Gun Metal

  • PVD Satin BronzePVD Satin Bronze

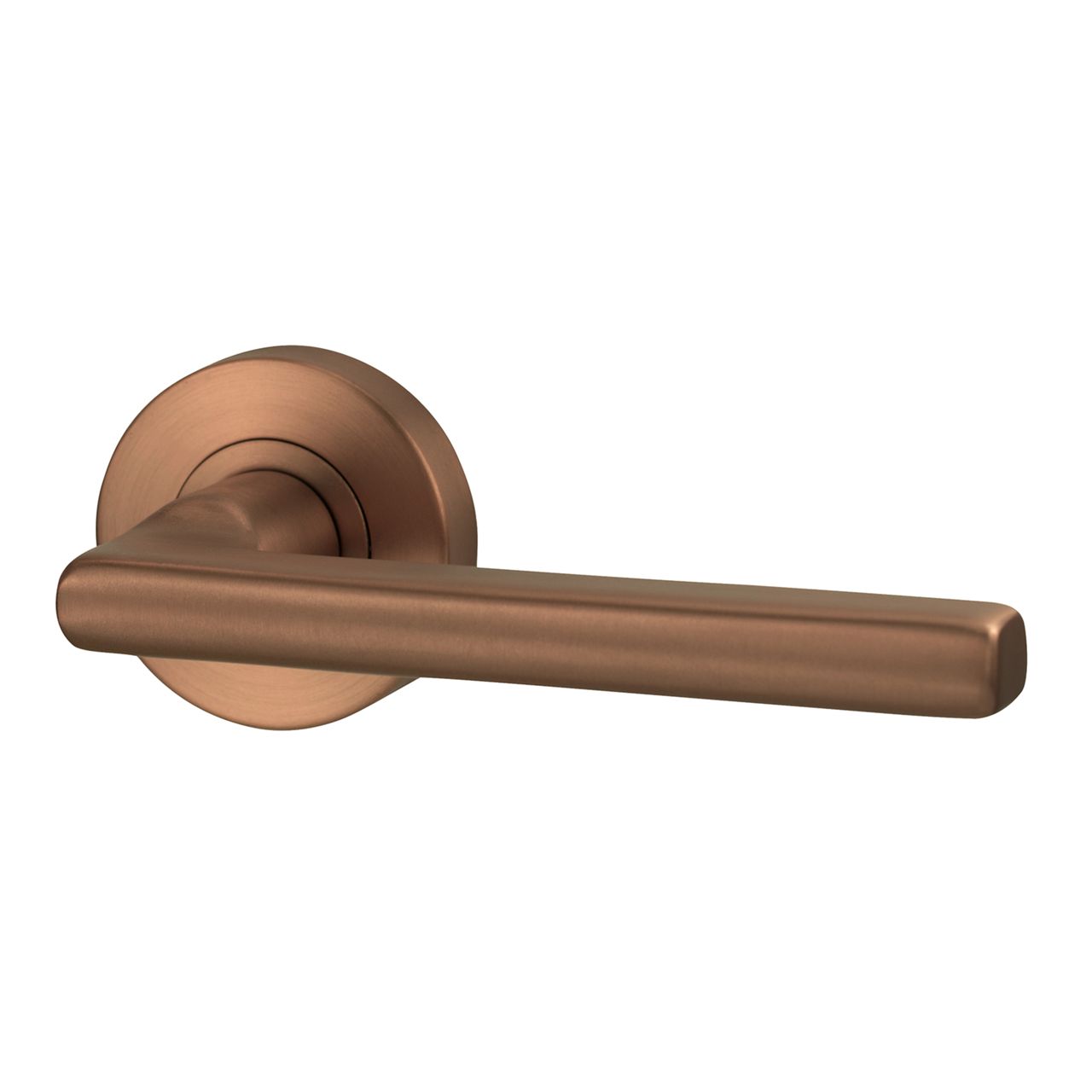

    PVD Satin Bronze

Where to buy

  • Standards and Compliance

  • D7D7

    Tested to AS4145.2 2008 for Durability passing D7 - 300,000 cycles.

  • Tested to AS4145.2 2008 for Neutral Salt Spray, passing C6 - 168 hours.

  • Vivid® Collection includes levers (as shown) that meet the requirements of AS1428.1-2009, Designed for access and mobility.

  • Rose Dimensions
    54mm diameter x 12mm

    Materials
    All visible surfaces 304 stainless steel with durable PVD surface treatment.

    Latches
    Passage sets are available with a 60mm backset tubular latch. Privacy sets are supplied with a 60mm backset privacy latch which includes a privacy pin for the inside of the door and an external emergency release function. The latch is automatically released when the internal handle is operated and is easily adapted for both open in and open out applications. All latches are supplied with industry standard “T” strikes box.

    Door Thickness
    32-45mm hinged door for Privacy set
    32-45mm hinged door for Passage set

    Finishes
    PVD Satin Brass (SB), PVD Satin Gun Metal (GM), PVD Satin Bronze (BZ)

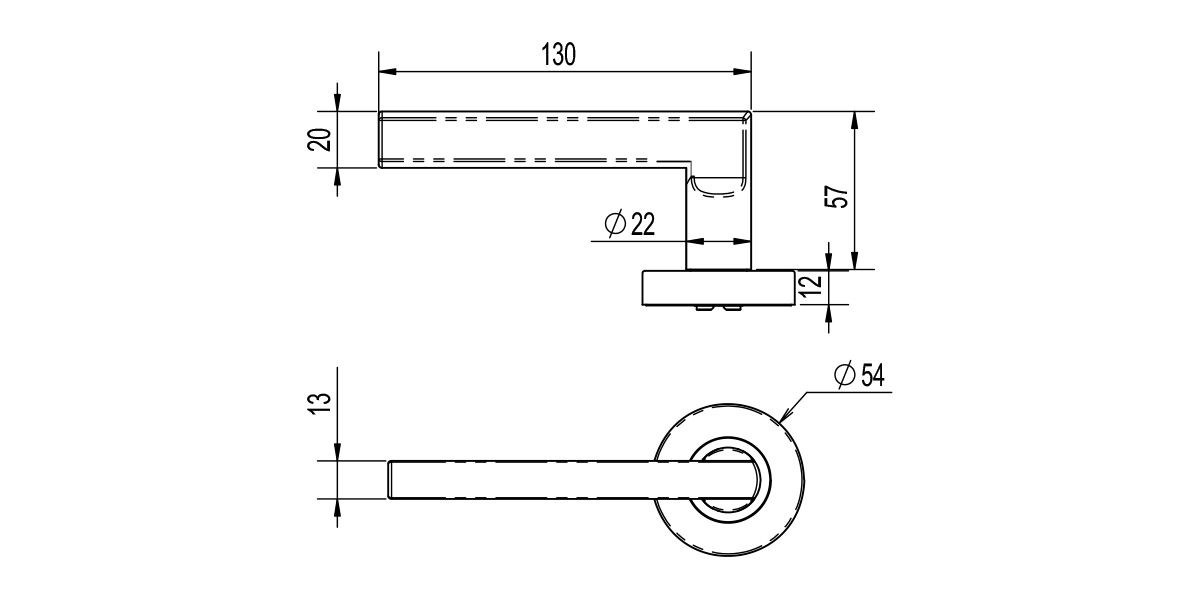

    Dimensions



  • Lockwood Vivid Collection Catalogue(PDF, 1 MB)
    Lockwood Rose Door Handles Catalogue(PDF, 16 MB)
    Lockwood Home Security Solutions(PDF, 4 MB)
    Vivid Internal Door Furniture Installation(PDF, 3 MB)
  • DescriptionPart numberBar code
    LEVER 4 - PASSAGE
    LEVER V4 PASSAGE SET WITH LATCHVIV1/V4SBPVD9340116133157
    LEVER V4 PASSAGE SET WITH LATCHVIV1/V4GMPVD9340116133195
    LEVER V4 PASSAGE SET WITH LATCHVIV1/V4BZPVD9340116133171
    LEVER 4 - PRIVACY
    LEVER V4 PRIVACY SET WITH LATCHVIV2/V4SBPVD9340116133164
    LEVER V4 PRIVACY SET WITH LATCHVIV2/V4GMPVD9340116136042
    LEVER V4 PRIVACY SET WITH LATCHVIV2/V4BZPVD9340116133188
    LEVER 4 - DUMMY
    VIVID LEVER V4 DUMMY HALF SET SATIN BRASSVIV3/V4SBPVD9340116141831
    VIVID LEVER V4 DUMMY HALF SET SATIN GUN METALVIV3/V4GMPVD9340116141824
    VIVID LEVER V4 DUMMY HALF SET SATIN BRONZEVIV3/V4BZPVD9340116141756

  • Vivid® Passage Set with Latch

    DescriptionQuantity
    Lever2
    Rose Trim2
    Passage Latch1
    Face Plate1
    Spindle2
    Spindle Springs2
    Through Fix Screws2
    Hex Inserts2
    Striker Plate with dust box1
    Timber Mounting screws4




    Vivid® Privacy Set with Latch

    DescriptionQuantity
    Lever2
    Rose Trim2
    Privacy Latch1
    Face Plate1
    Privacy Pin1
    Pointed tool1
    Spindle2
    Spindle Springs2
    Through Fix Screws2
    Hex Inserts2
    Striker Plate with dust box1
    Timber Mounting screws4



    Vivid® Half Dummy Lever

    DescriptionQuantity
    Lever1
    Rose Trim1
    Timber Mounting screws4

Lockwood Vivid® Collection

Proudly introducing the Lockwood Vivid® Collection. Available in three luxurious finishes – SATIN BRASS, SATIN GUNMETAL, and SATIN BRONZE, this is a range well-placed to satisfy the growing consumer trend towards coloured door hardware finishes.

Vivid® Collection levers come in Passage, Privacy and Dummy internal door formats, as well as sliding door components like cavity sliders, edge pulls, and flush pulls. Accessories such as door stops and hinges complete the full internal application.
