Lockwood Padde Series ES8000-S V-Lock

The world famous and original V-Lock has been completely re-engineered to provide superior performance and reliability.
The ES8000-S now incorporates a new motor and 1:19 ratio gearbox providing up to 65% additional preload capability and a higher locking force up to 10Kg.
The electronic circuitry has also been completely upgraded to intelligently detect the locked state with “smart” retry function & uses on average 25% less peak current draw.
Aside from some minor cosmetic changes, the lock body and overall footprint remains unchanged and is a direct retrofit for the original V-Lock.

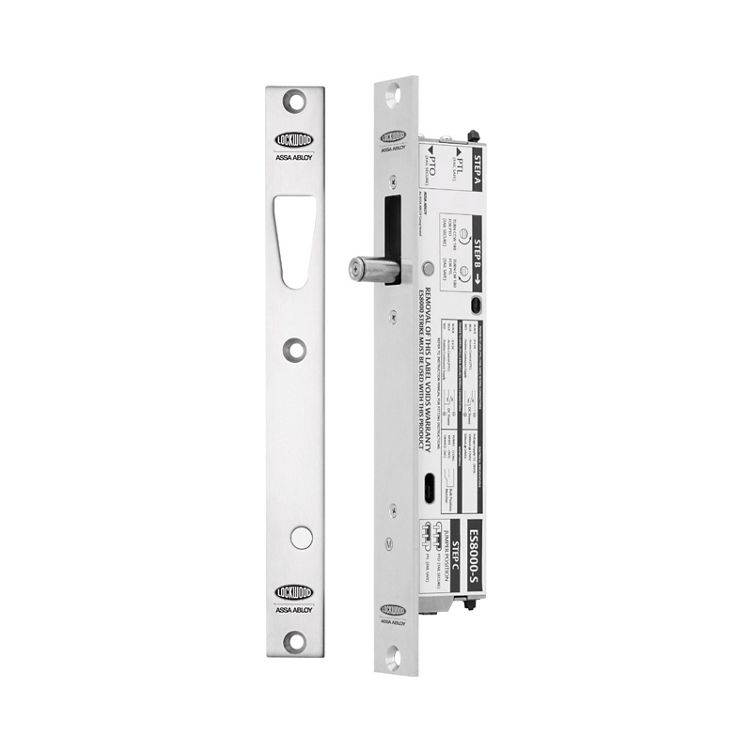

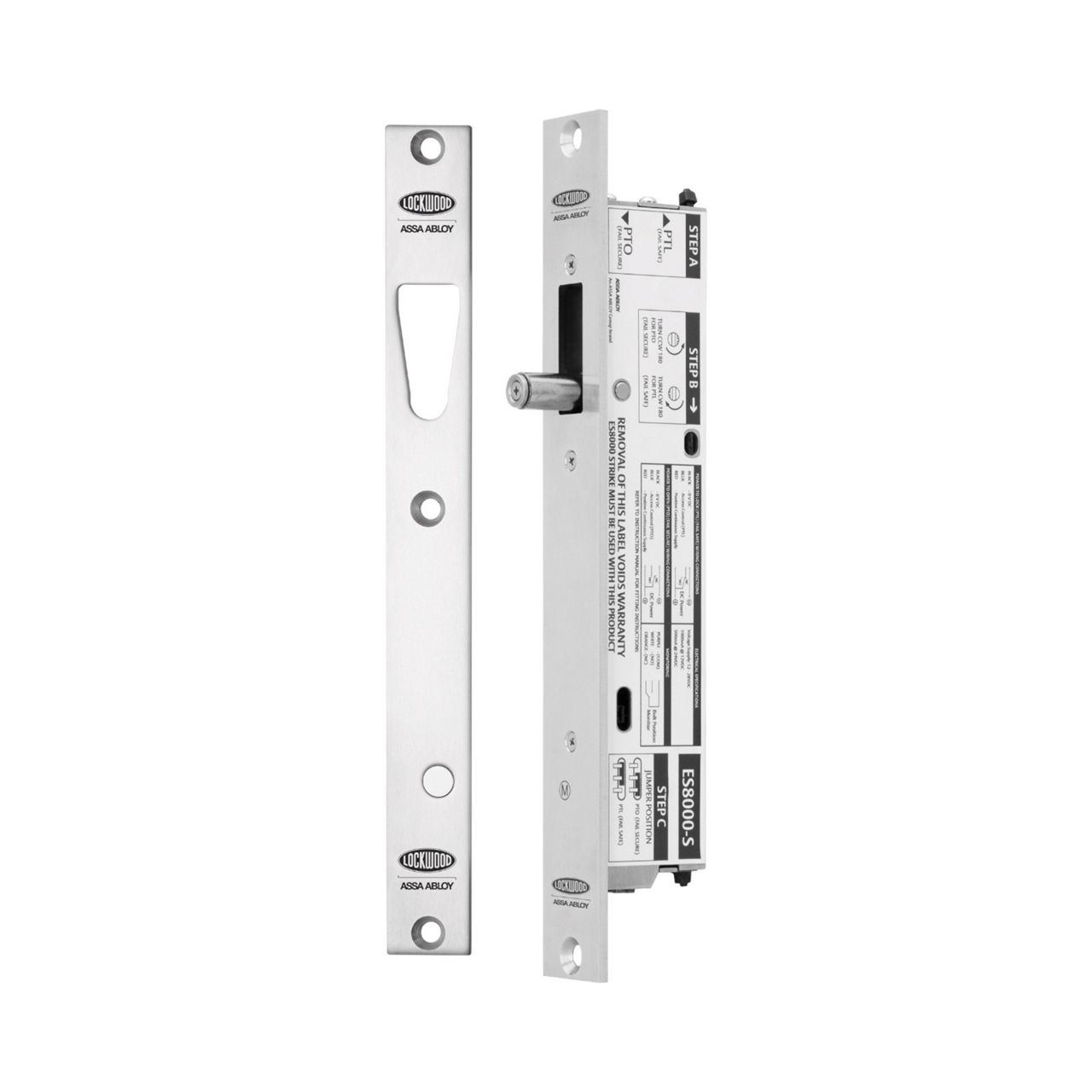

The ES8000-S has a high torque motorised bolt that moves from the vertical position to the horizontal state when locked. The bolt moves into the V shaped strike plate & allows for door misalignment of up to 7mm. The high torque motorised bolt can be concealed from view or surface mounted and has the world’s first fail-safe motor locking mechanism.

Features

• Side load - Pre-load Capable Lock will unlock with up to 25kg of side pressure, when wired in 3 wire mode
• Door misalignment of up to 3.5mm +/- (total of 7mm)
• Power to Lock (Fail Safe) / Power to Open (Fail Secure) field configurable
• High Torque Motorised locking and unlocking (3 wire mode)
• High Speed Operation. Unlocks in less than 1 second
• Intelligent smart retry locking function
• Surface Mount Accessory Kit. Ideal for 180° swing through glass door applications
• Multiple applications – For Interior Doors the lock can be mounted vertically or horizontally (Note: for exterior doors due to possible water ingress the ES8000 must be mounted horizontally)
• 5 Year Tricare Warranty

Applications

• Misaligned doors
• Timber Doors
• Glass Doors

Standards and Compliance

• SCEC Endorsed (Intruder Resistant Bracket Required)
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets).
• CE Approved
