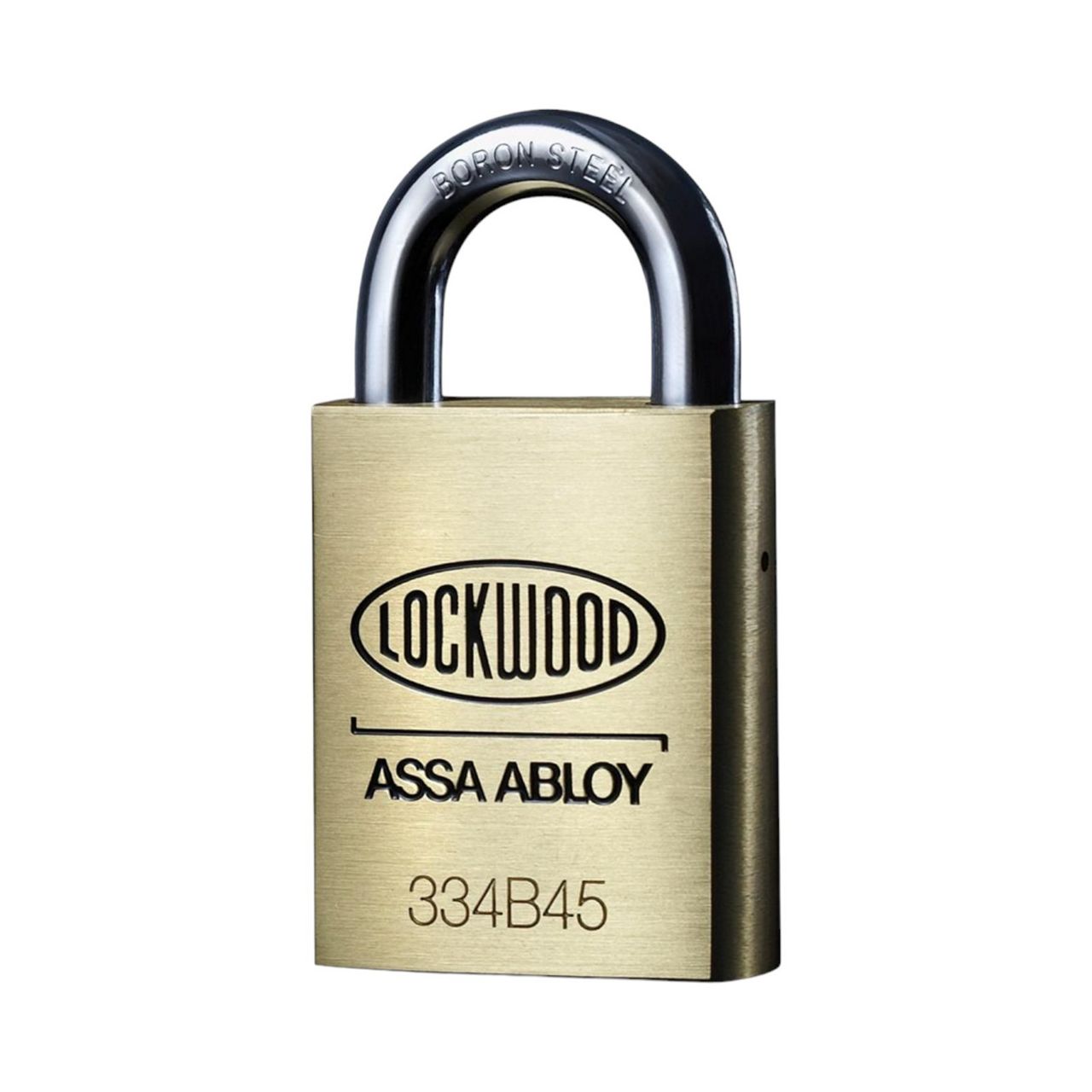

Lockwood High Security 334 Series Brass Case Padlocks

The Lockwood High Security 334 Series Brass Case Padlock range feature shackles designed for high security and high corrosion applications.

Suitability

  • Commercial and industrial applications.

Features of the High Security 334 Series Brass Case Padlocks

  • Heavy duty, solid brass case extrusion
  • High corrosion resistant 8.7mm Boron steel Rapid Change Shackle
  • Rapid Change Function allows the release of the shackle by turning the key and depressing the pin
  • Double ball locking
  • Extended shackle models
  • Stainless steel shackle models
  • Standard as latching function
  • Can be converted to deadlocking (key retained) by simply relocating the camplate pin in the cylinder assembly

SCEC Endorsment
The 334B45/119 model padlock is SCEC Endorsed for Intruder Resistant Areas.

Conditions of SCEC Endorsment

  • The padlock must be configured key retained
  • Must be fitted with a SCEC approved cylinder rated for the area for which it will be installed
Where to Buy Padlocks Feature Page
b2a4e-130123053933025

Lockwood High Security 334 Series Brass Case Padlocks

b2a4e-130123053933025

Suitability

Commercial and industrial applications.

Cylinders

334 top loaded cylinders are rekeyable in standard 5 pin with 6 pin capability (nickel silver keys with 6 pin padlocks).

334 cylinders are preloaded with one length top pins and stainless steel pin springs using a Lockwood 570 barrel.

Custom Marking

Custom marking is available. Pricing and availability on application.

  • Lockwood Padlocks Catalogue(PDF, 3 MB)
  • Padlock Security Standards Overview(PDF, 844 KB)
DescriptionPart numberBarcode
TRADE PACK
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, STD 19MM Shackle Opening - 5P KD334B45/119/5KD93-11847-96544-7
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, STD 19MM Shackle Opening - 5P KA334B45/119/5KA93-11847-96553-9
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, STD 19MM Shackle Opening - 6P KD334B45/119/6KD93-11847-96601-7
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, STD 19MM Shackle Opening - 6P KA334B45/119/6KA93-11847-96600-0
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, STD 19MM Shackle Opening - 6P MK334B45/119/6MK93-11847-96612-3
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, STD 25MM Shackle Opening - 5P KD334B45/125/5KD93-40116-04057-8
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, STD 25MM Shackle Opening - 5P KA334B45/125/5KA93-40116-04056-1
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, STD 25MM Shackle Opening - 6P KD334B45/125/6KD93-40116-04059-2
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, STD 25MM Shackle Opening - 6P KA334B45/125/6KA93-40116-04058-5
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, STD 25MM Shackle Opening - 6P MK334B45/125/6MK93-40116-04060-8
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 38MM Shackle Opening - 5P KD334B45/138/5KD93-11847-96660-4
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 38MM Shackle Opening - 5P KA334B45/138/5KA93-11847-96636-9
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 38MM Shackle Opening - 6P KD334B45/138/6KD93-11847-96638-3
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 38MM Shackle Opening - 6P KA334B45/138/6KA93-11847-96637-6
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 38MM Shackle Opening - 6P MK334B45/138/6MK93-11847-96639-0
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 48MM Shackle Opening - 5P KD334B45/148/5KD93-11847-96650-5
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 48MM Shackle Opening - 5P KA334B45/148/5KA93-11847-96641-3
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 48MM Shackle Opening - 6P KD334B45/148/6KD93-11847-96652-9
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 48MM Shackle Opening - 6P KA334B45/148/6KA93-11847-96642-0
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 48MM Shackle Opening - 6P MK334B45/148/6MK93-11847-96653-6
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 90MM Shackle Opening - 5P KD334B45/190/5KD93-11847-96656-7
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 90MM Shackle Opening - 5P KA334B45/190/5KA93-11847-96655-0
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 90MM Shackle Opening - 6P KD334B45/190/6KD93-11847-96658-1
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 90MM Shackle Opening - 6P KA334B45/190/6KA93-11847-96657-4
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, EXTD 90MM Shackle Opening - 6P MK334B45/190/6MK93-11847-96659-8
DISPLAY PACK
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, Brass, STD 19MM Shackle Opening334B45/119/DP93-11847-98223-9
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, Brass, EXTD 38MM Shackle Opening334B45/138/DP93-11847-98240-6
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, Brass, EXTD 48MM Shackle Opening334B45/148/DP93-11847-98241-3
334 Series - 45MM Brass Padlock with 8.7MM Diameter Boron Steel Shackle - 45MM, Brass, EXTD 90MM Shackle Opening334B45/190/DP93-11847-98242-0
