DualSelect®
Turn the key for safety mode (Day Latching). Turn the key further to select secure mode (Deadlocking).
The Lockwood LW9 Patio Sliding Door Lock is a new surface mounted, Twin-beak Patio Sliding Door Lock incorporating sleek and modern styling with an innovative snib design that is both ergonomic and intuitive in operation.
The patented snib operation is the standout feature of this lock. A smaller handle inside the D-handle, the snib lock is used for Safety Mode locking. It unlocks the door when pulled in the opening direction and locks when pushed in the closing direction, making it possible for one fluid motion to unlock-open and close-lock. Aside from the ease of operation, the snib lock also becomes an easy, yet subtle visual indicator of lock status. The lock can be further deadlocked to Secure Mode with the key.
The range is styled with minimalistic and universally appealing lines allowing it to cleanly match to just about any other styling in the home.
Surface mounted lockset suitable for use with most aluminium and timber sliding doors.
The flexible chassis coupled with innovative design features results in a non‑handed product that is extremely easy to install and suitable for new and most retrofit applications.
The range comes with an internal D Handle and an external Pull handle with the options for a Universal or Wide Strike, and is available in our most popular colours.
Black Powdercoat (BLK)
Silver Powdercoat (SIL)
White Powdercoat (WH)

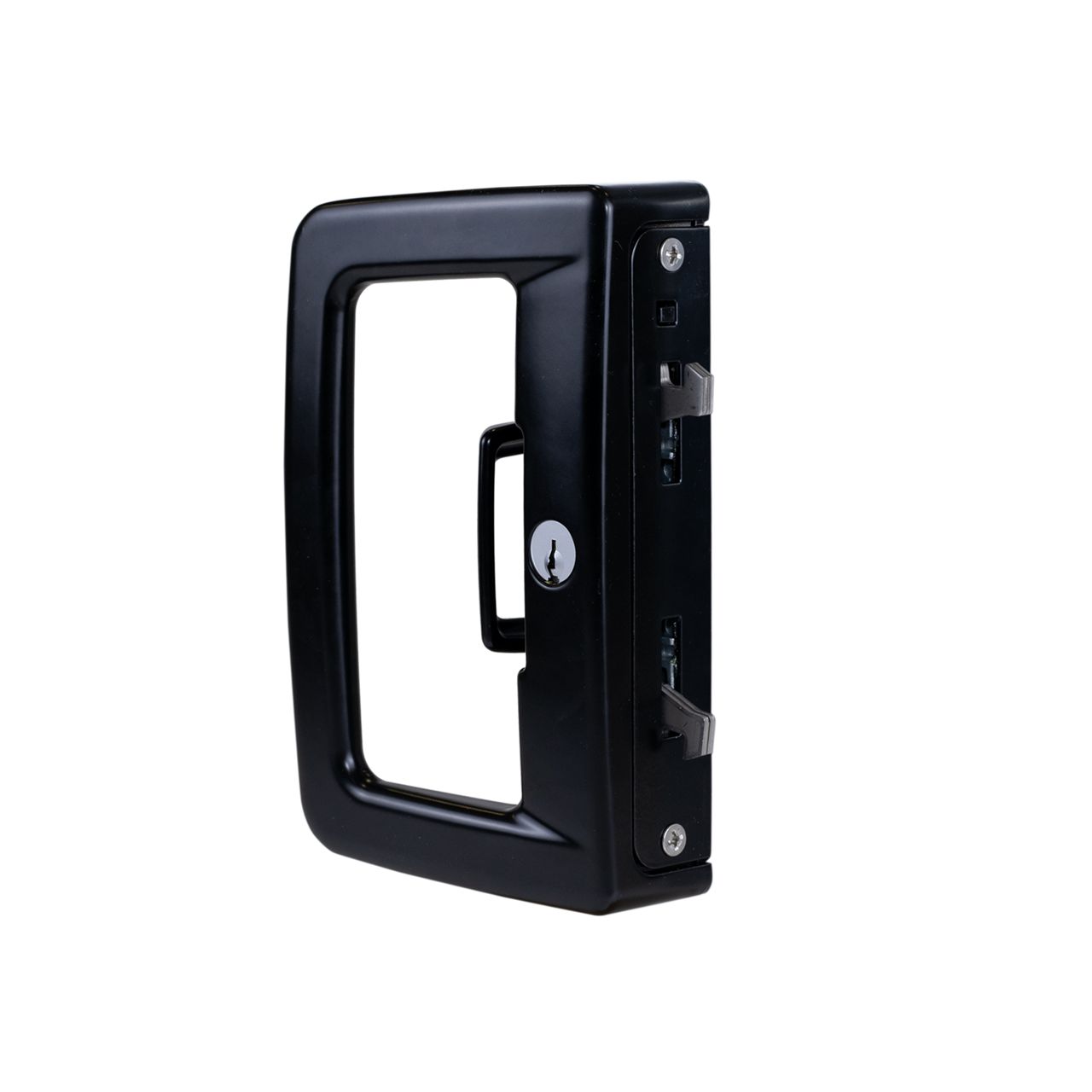

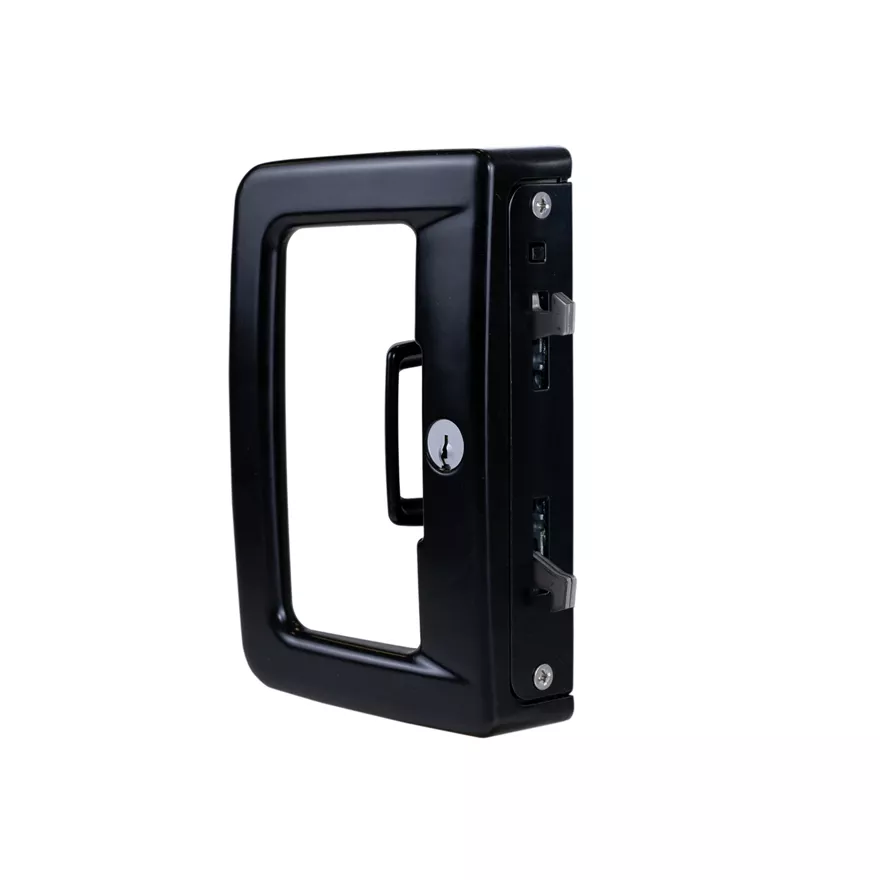

Lockwood LW9 in BLK Finish (Side View)
Lockwood LW9 in BLK Finish (Side View)

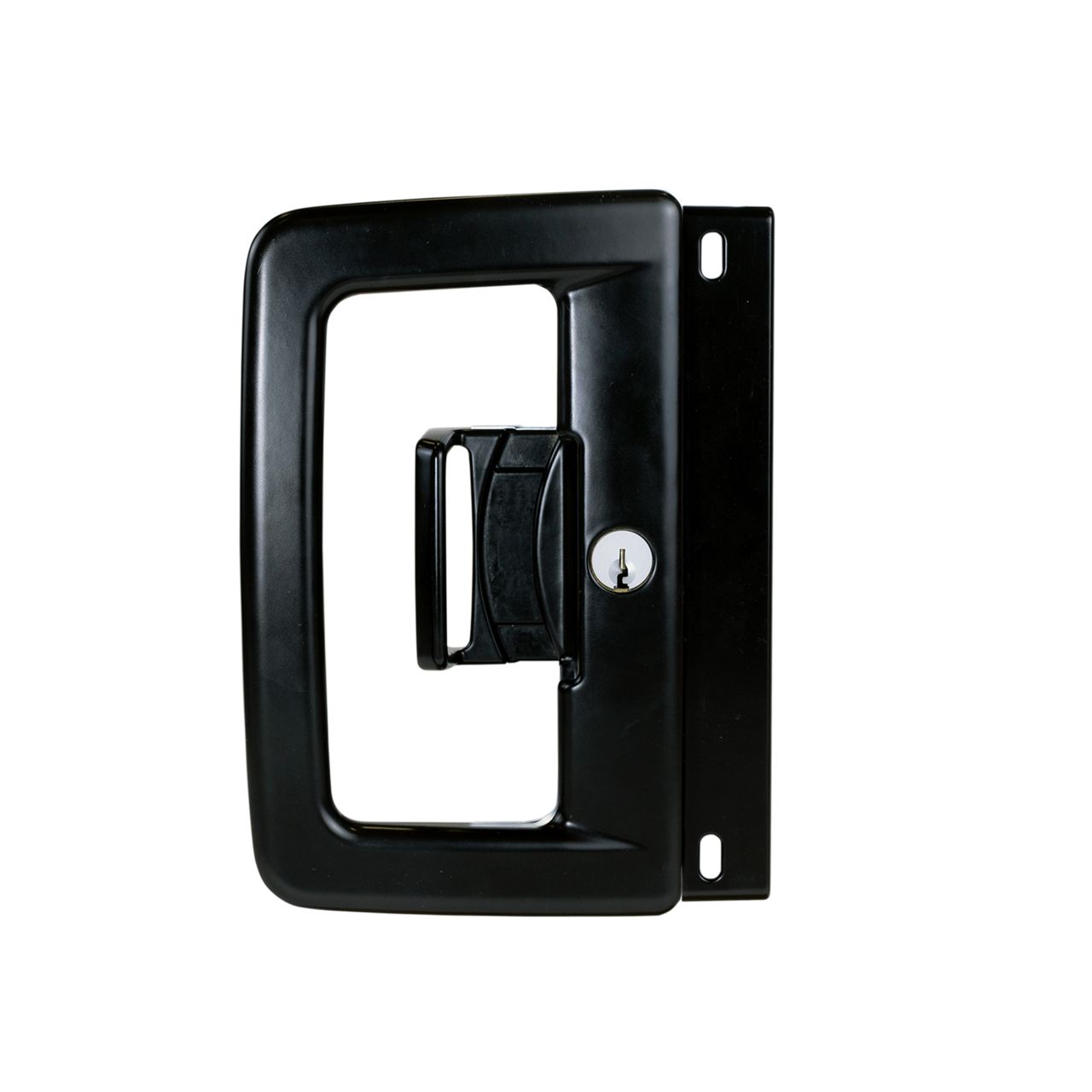

Lockwood LW9 in BLK Finish (Front View)
Lockwood LW9 in BLK Finish

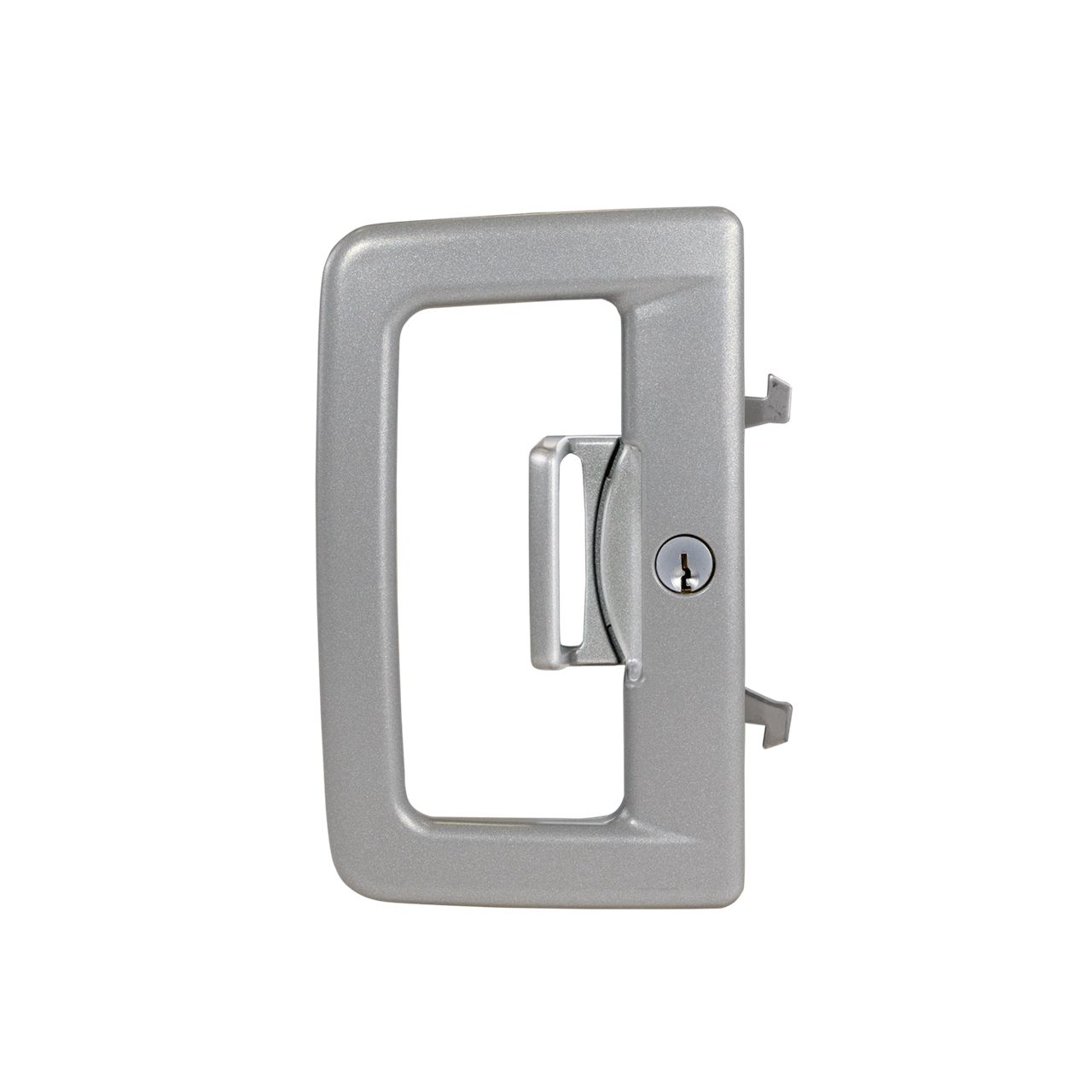

Lockwood LW9 in SIL Finish (Front View)

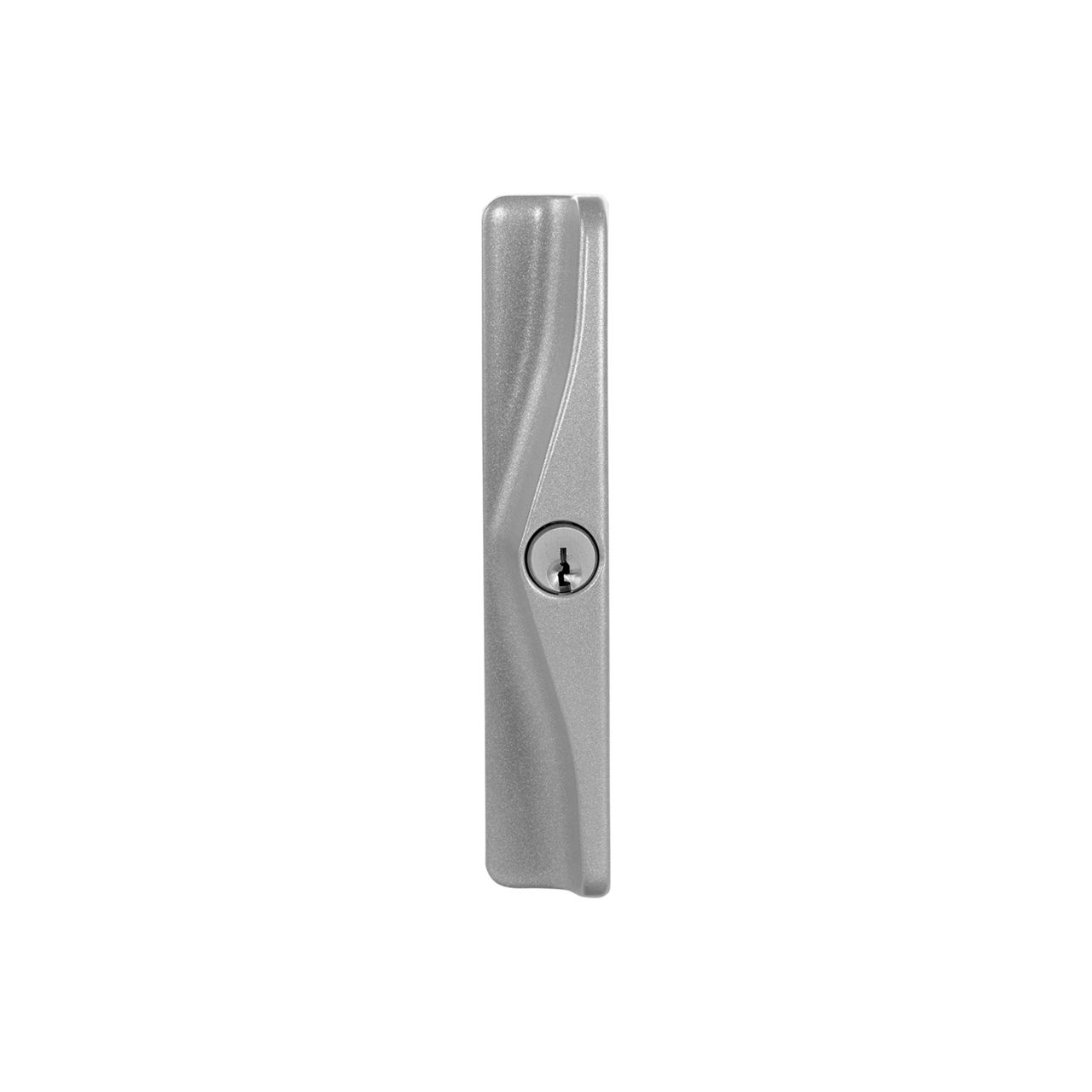

Lockwood LW9 in SIL Finish (Back View)

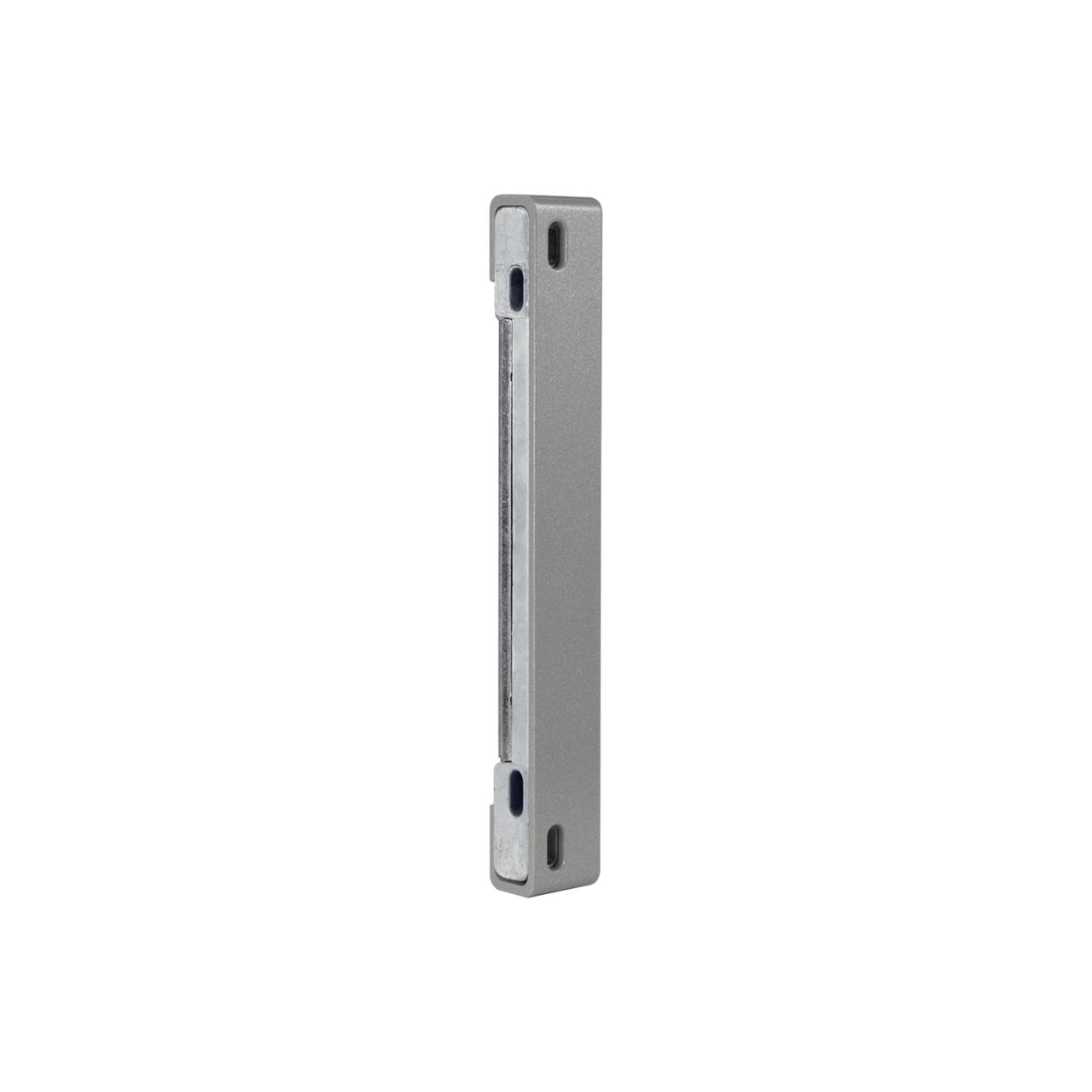

Lockwood LW9 Striker in SIL Finish

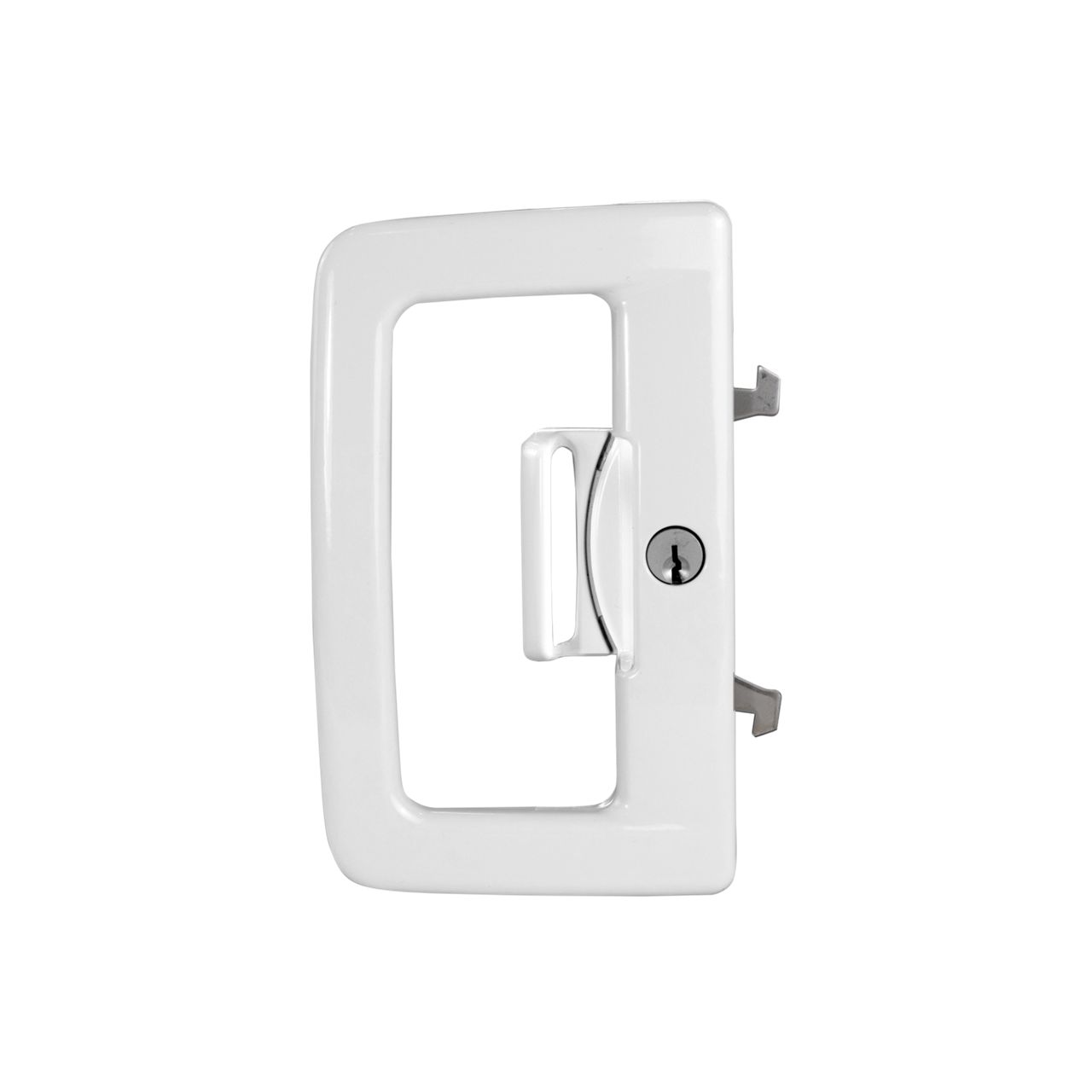

Lockwood LW9 in WH Finish (Front View)

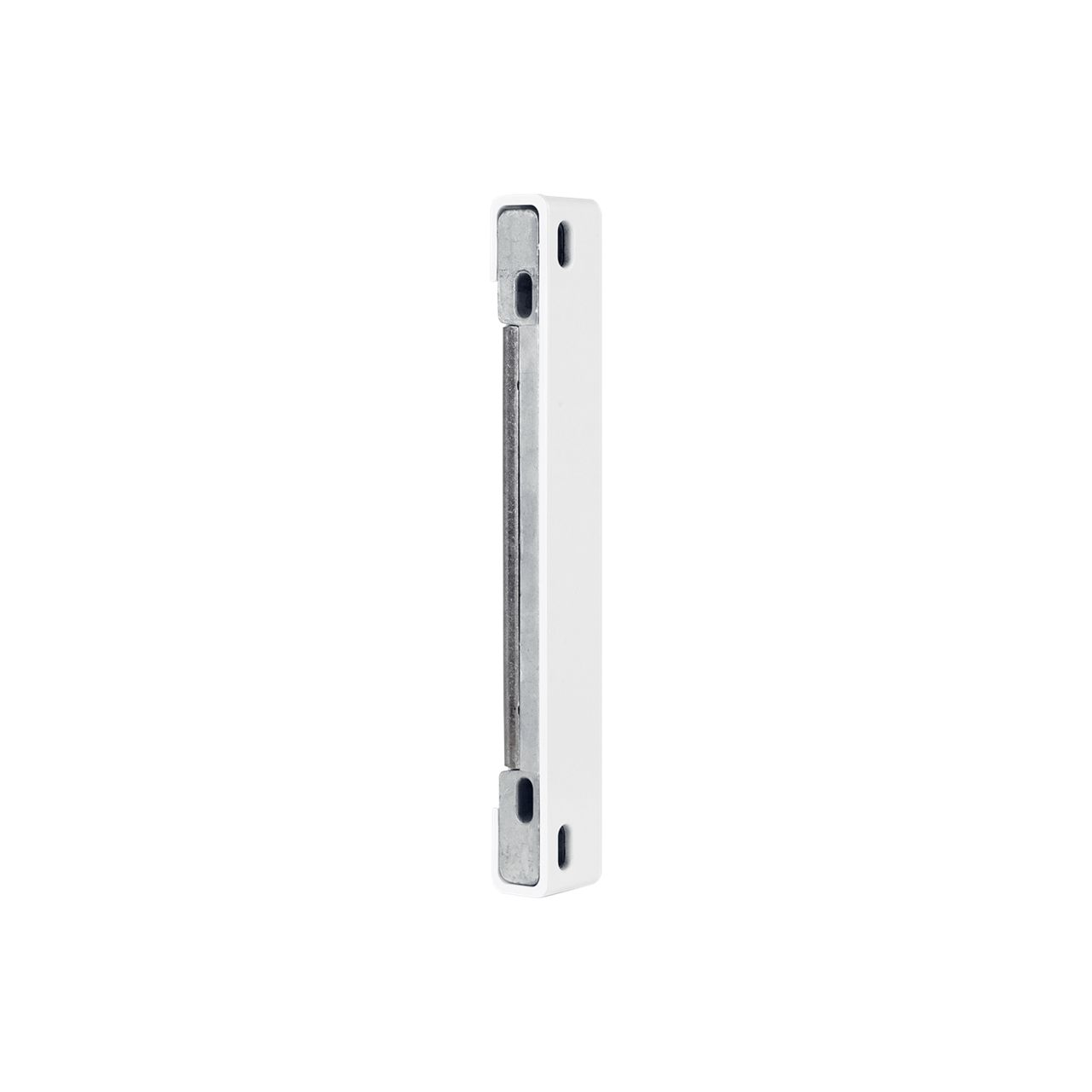

Lockwood LW9 Striker in WH Finish
Turn the key for safety mode (Day Latching). Turn the key further to select secure mode (Deadlocking).
For added security
Securely locked from both inside and outside. For when nobody is home.
Anti slam feature protects from accidental damage and ensures door is closed before being latched or locked.
In locking version.
Bump and pick resistant.
Door Thickness
19mm to 45mm with the standard screw fixing pack provided
Finishes
Black Powdercoat (BLK)
Silver Powdercoat (SIL)
White Powdercoat (WH)
Fixing
Surface mounted lockset with concealed fixing. Industry standard 82mm pitching centres.
Handing
Unique modular design allows for non handed installation.
Keying
Supplied individually keyed with two keys per lock with 78,000 possible key combinations.
Materials
Zinc diecast chassis construction
Aluminium diecast furniture
Brass cylinders with Satin Chrome Pearl finish.
Description | Part number | Bar code |
---|---|---|
TRADE PACK | ||
D Handle Inner & Slim Outer Pull | ||
LW9 SD Internal Locking D Handle/External Locking Pull UniStrike 5p Double Cylinder (Black) | LW914UBLK | 9340116141879 |
LW9 SD Internal Non Locking D Handle/External Non Locking Pull Uni Strike No Cylinder (Black) | LW910UBLK | 9340116141954 |
LW9 SD Internal Non Locking D Handle/External Non Locking Pull Uni Strike No Cylinder (Silver) | LW910USIL | 9340116141961 |
LW9 SD Internal Non Locking D Handle/External Non Locking Pull Uni Strike No Cylinder (White) | LW910UWH | 9340116141909 |
LW9 SD Internal Non Locking D Handle/External Non LockingPull Extra Width Strike No Cylinder (Black) | LW910WBLK | 9340116141978 |
LW9 SD Internal Non Locking D Handle/External Non Locking Pull Extra Width Strike No Cylinder (Silver) | LW910WSIL | 9340116141992 |
LW9 SD Internal Non Locking D Handle/External Non Locking Pull Extra Width Strike No Cylinder (White) | LW910WWH | 9340116141985 |
LW9 SPARE PARTS - CYLINDERS | ||
LW9 5 Pin Double Cylinder Assembly Keyed 1 to 10* | LW9X4X-** | |
LW9 5 Pin Internal Cylinder Assembly Keyed 1 to 10* | LW9X3X-** | |
LW9 5 Pin External Cylinder Assembly Keyed 1 to 10* | LW9X6X-** | |
LW9 SPARE PARTS - PACKERS | ||
LW9 5mm D-Handle Packer | LW9X-1BLK | 9340116155098 |
LW9 5mm Universal Strike Packer | LW9X-2BLK | 9340116155104 |
