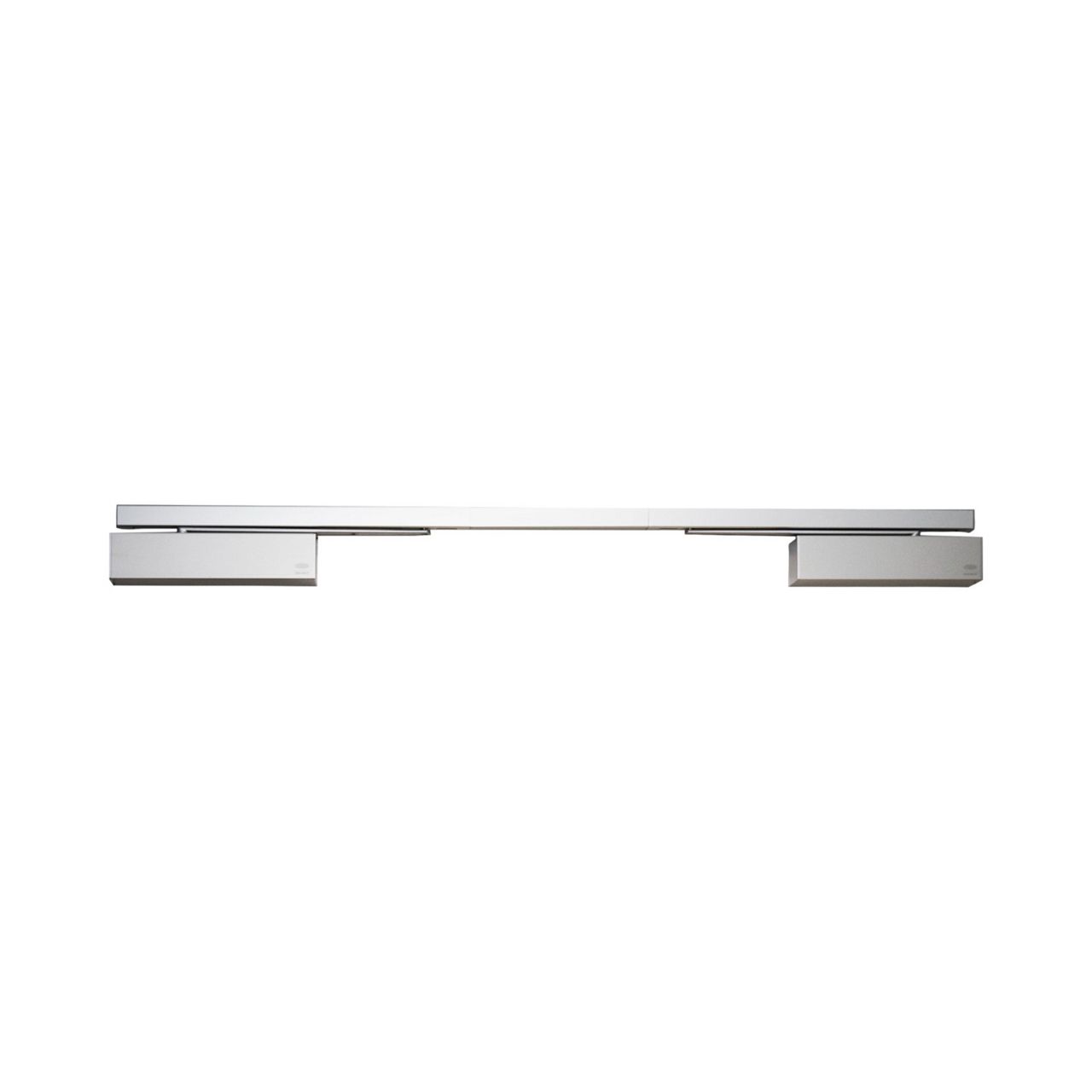

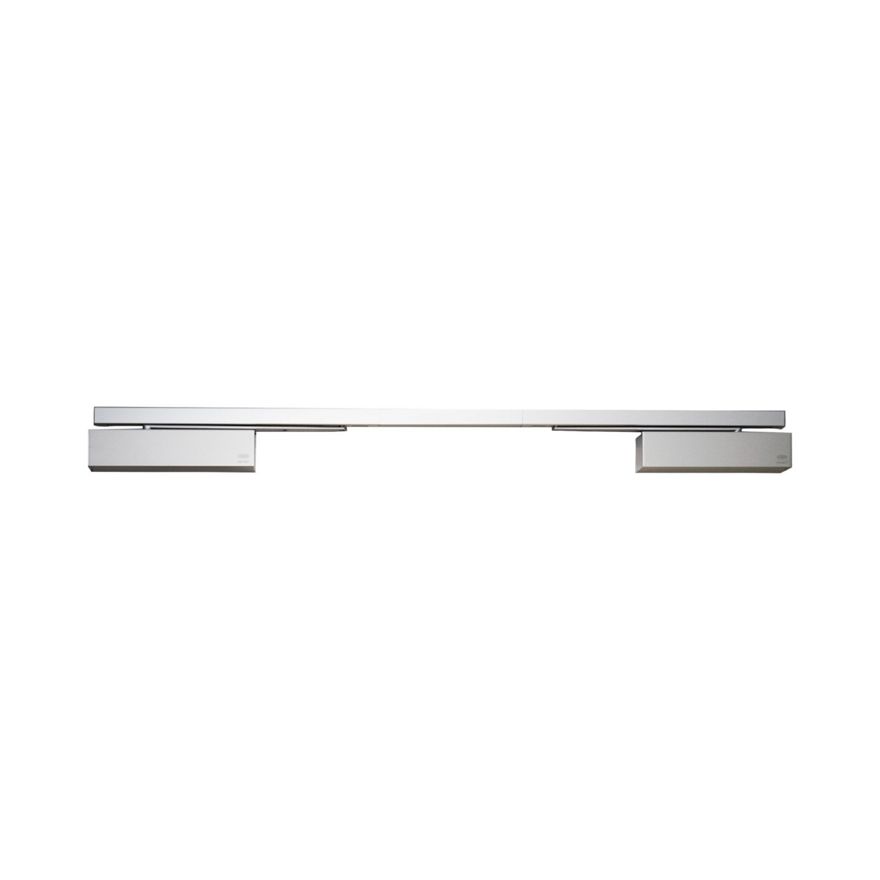

Lockwood 2616CO Mechanical Coordinator for Double Doors

The Lockwood 2616CO is a stylish and small mechanical coordinator for double doors. The 2616CO is useful in applications where doors are normally kept closed. The coordinator is integrated inside the covered sliding rails which protects the coordinator from abuse.

The Lockwood 2616CO is suitable for double doors with hinge distance 1250-2800 mm and maximum door leaf weight of 120 kg. CE certified according to EN1155 and EN1158. Ideal for use in a wide range of double door applications including office entrance halls and commercial buildings.

Major Features of the 2616CO

Design
Compact modern design to suit double door installations.

Fire Rated
The Lockwood 2616CO Door Control System has been successfully fire tested up to 4 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Doorsets.

Flexibility in Installation

• Easy to install on narrow frames (40mm)
• One unit suits both push side or pull side

Push side application add:
1 x FD2616-117SIL angle bracket
2 x FD2616-116SIL angle brackets

Door Sizes
Double door applications
minimum 1250mm, maximum 2800mm

Opening Angles
Maximum opening angle 130°

Double Door Function
The mechanical coordinator keeps the active door open when inactive door is open. Active door starts to close when the inactive door is almost closed. After the active door is closed it latches the inactive door.
