Lockwood 2616EMCD Electromechanical Hold-Open Device for Double Doors

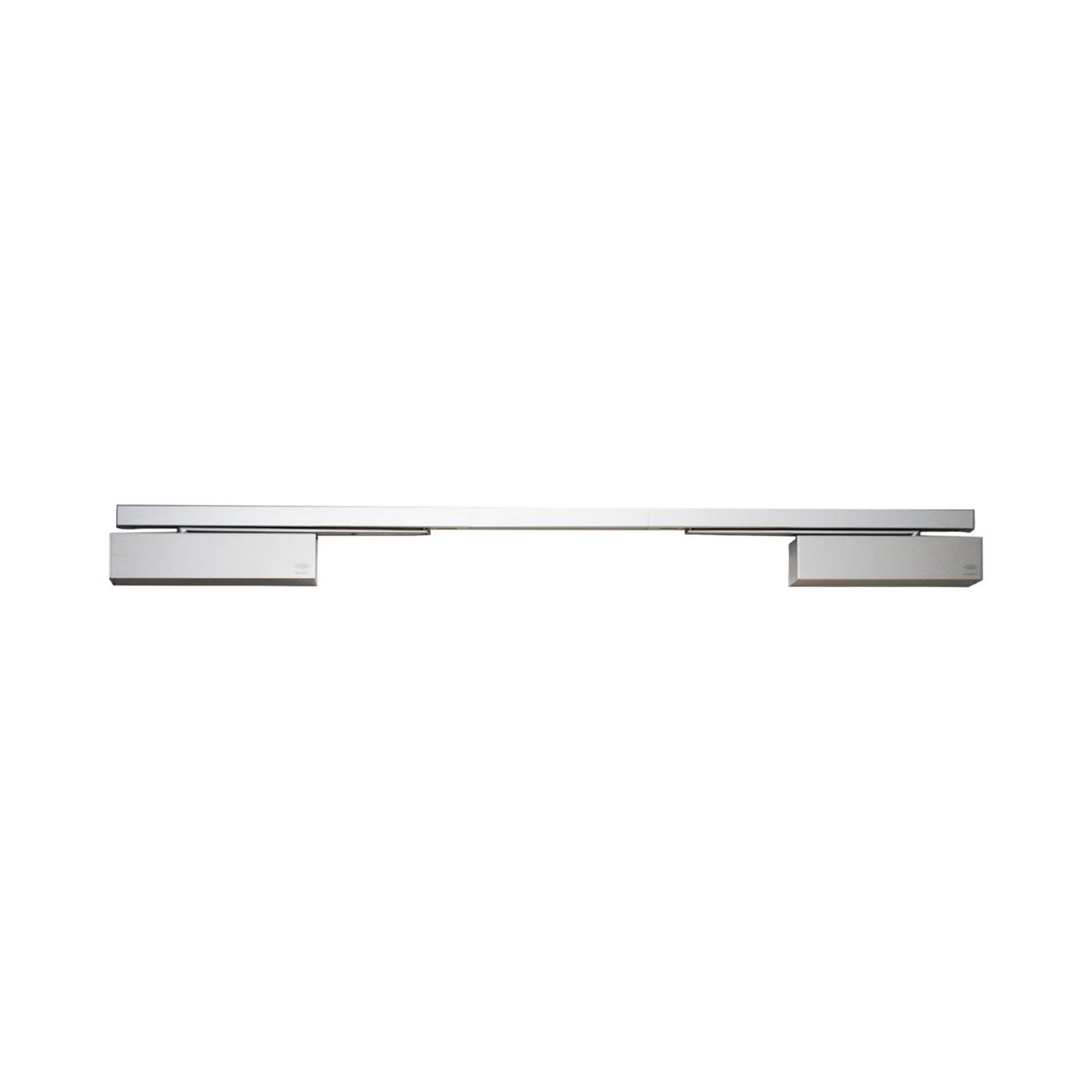

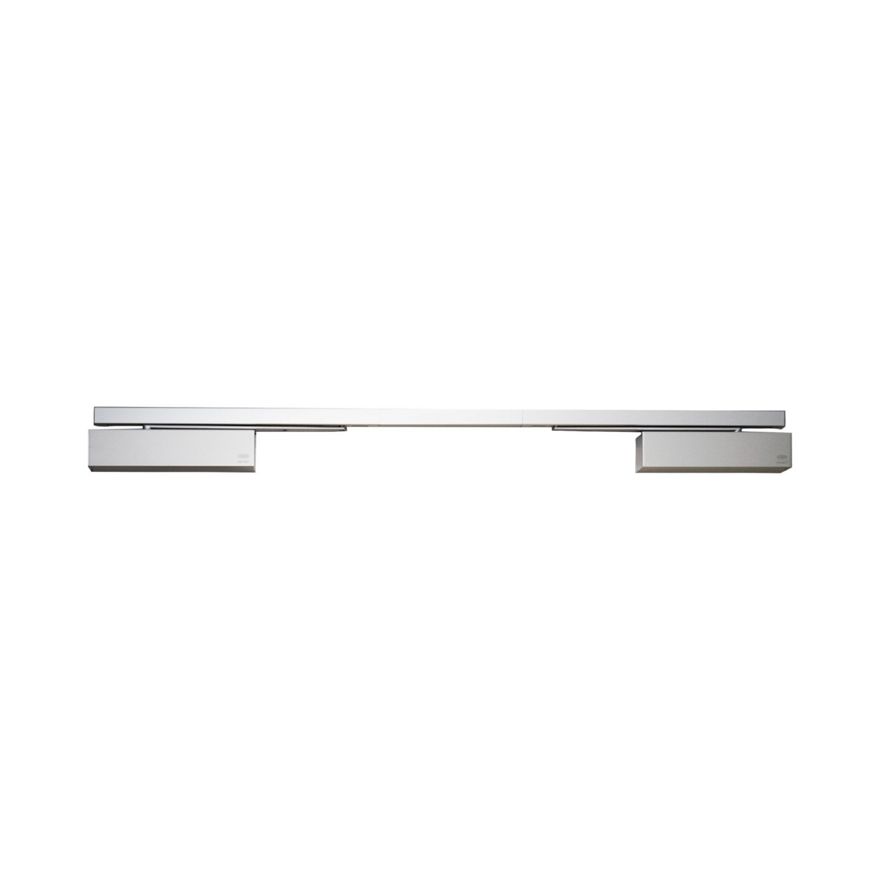

The Lockwood 2616EMCD is a small, aesthetic fire door closing system with a sliding arm, one hold open device and the built-in coordinator for double doors. The applications for the 2616EMCD include hotels and hospital corridors, where both door leafs are usually kept open.

The Lockwood 2616EMCD is designed for double doors with hinge distance 1250-2800 mm and maximum door leaf weight 120 kg. CE certified according to EN1155 and EN1158.

Major Features of the 2616EMCD

Design
Compact modern design to suit both single and double door installations.

Fire Rated
The Lockwood 2616EMCD Door Control System has been successfully fire tested up to 4 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Doorsets.

Flexibility In Installation

• Easy to install on narrow frames (40mm)
• One unit suits both push side or pull side

Push side application add:
1 x FD2616-117SIL angle bracket
2 x FD2616-116SIL angle brackets

Door Sizes
Double door applications
minimum 1250mm, maximum 2800mm

Opening Angles
Maximum opening angle 130° (Inactive door)
Maximum opening angle 150° (Active door)

Functions
In normal day use both doors are open. The hold open angle for inactive door can be adjusted 70-130 degrees. The hold open device keeps the inactive door open whereas the coordinator keeps the active door open. The maximum hold angle for the active door is 130°. When the power is switched off, i.e. when the smoke detectors react to smoke, the inactive door closes first and when it is almost closed, the active door starts to close. Hold open device includes adjustable hold open force. Current consumption 60mA (24 VDC).
